Summary of Contents for Hobbylord ST800

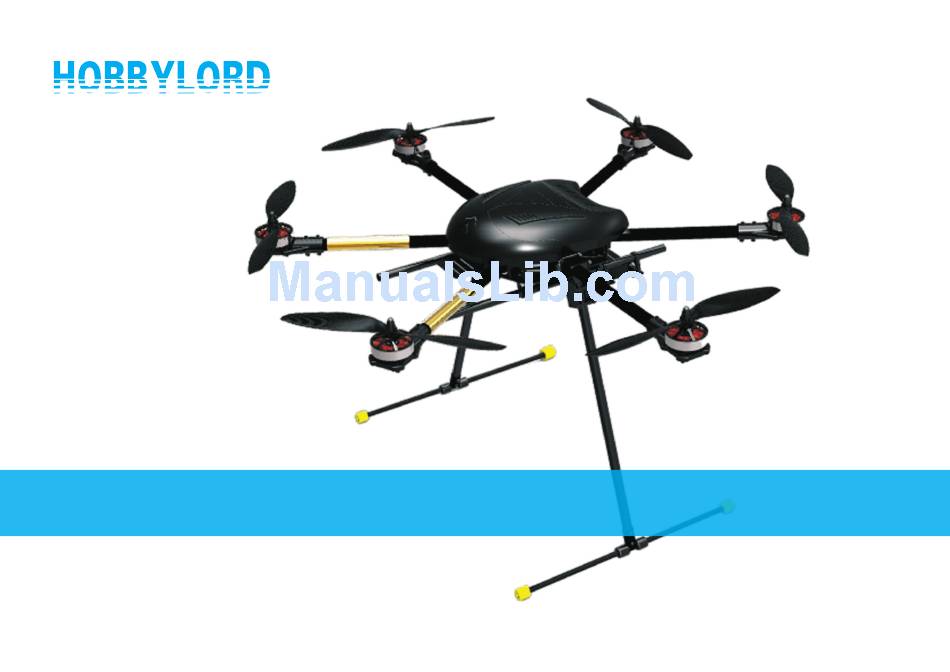

- Page 1 ST800 AIRCRAFT MANUAL Thank you for choosing the Vision Bumblebee. This is not a toy, please read and follow these instructions carefully to guarantee proper function and safety.
- Page 2 Details of ST800 产 品 简介 Diameter(电 机 轴距)：820mm Height(整机 高度)：440mm kit( not including the canopy) w e i gh (空 机 重量,无头 罩,)：950g (电 池要 求)：6S 5000mAh~10000mAh Battery requirement Brushless Motor(搭配 电机)：ST4708 360KV Brushless ESC(无刷电 调): 兼 容6S锂 电 池的30A或40A电 调.
- Page 3 Fuselage plate installtion 机 身 板 的 安装 Screw M3×6 半圆头内六角螺丝 pper plate Fuselage u 机身上板 Screw M2.5×6 半圆头内六角螺丝 Curved buckle 曲形卡扣 lower plate Fuselage 机身下板 Screw M3×6 半圆头内六角螺丝 支撑管连接件 Supporting tube fittings Screw M2×6 Screw M2×6 半圆头内六角螺丝 半圆头内六角螺丝...
- Page 4 Fuselage plate installtion 机 身 板 的 安装 25 mm The size for the Motor Motor: Brushless motor 无刷电机 fixed plate is 25mm, please choose motors whose outside Screw M2.5×12 diameter is less than 55mm and the 杯头内六角螺丝 mounting hole space is 25mm.(more Screw M3×28 fixed plate: 杯头内六角螺丝...
- Page 5 Brushless ESC install 安 装 电 子 调速器 Motor Mount Firstly connect the brushless motor with the ESC. Fix the ESC on this two reinforcing rib by 电机固定座 using the cable tie In order to make it easy to assemble, line and 装电调用扎带固定在这两个加强筋上。...
- Page 6 旋 翼 臂组件的安 装 Installation of the arm components 将支臂组件沿箭头方向插入机身板中，用螺丝将它固定在机身板上。 Insert the arm into the fuselage along the direction of the arrow, and secure it in the fuselage plate with screws. Screw M 3×3 5 杯 头螺 丝 Nylon washer 尼...
- Page 7 旋 翼 臂组件的安 装 Installation of the arm components Screw M3×35 杯头螺丝 Arm assembly install 旋翼臂组件的安装2: Nylon washer 尼龙垫片 Landing gear connecting piece-18 起落架连接件-18 Nylon washer 尼 龙 垫 片 Arm tube mount-B 旋翼碳管固定座-B Arm tube assembly 旋翼臂组件 Nut M3 自锁螺母...
- Page 8 Landing gear and battery plate 起 落 架 和 电 池板 Installing landing gear The center distance between the two supporting tubes is 155mm.please 安装起落架: match the right gimbal according to the size. when adjusting the gravity of the aircraft, loosen the set screws, slid the battery component to the appropriate location, tighten the screws and the battery.
- Page 9 Canopy and expand plate 头 罩 和 拓展板: the plastic cover can effectively protect the electronic equipment, and reduce both the cost amd the risk of flight. 塑胶头罩可以有效保护飞行器的电子设备，减小飞行风险，降低飞行成本。 canopy 头罩 Screw M2.5×6 半圆头十字螺丝 Expand plate Nut M2.5 自锁螺母 拓展板...
- Page 10 Propeller and other set install 螺 旋桨和 其 他 组 件的安装 There are difference of pros and cons in the Device for placing（设备放置）： propeller, please identify it carefully before installation ! Place receiver or GPS or other set Screw M2.5×6 C o n t r o l l e r Flight 放置接收机或GPS模块或者其他设备...
