MediaMatrix nion nE Quick Setup Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

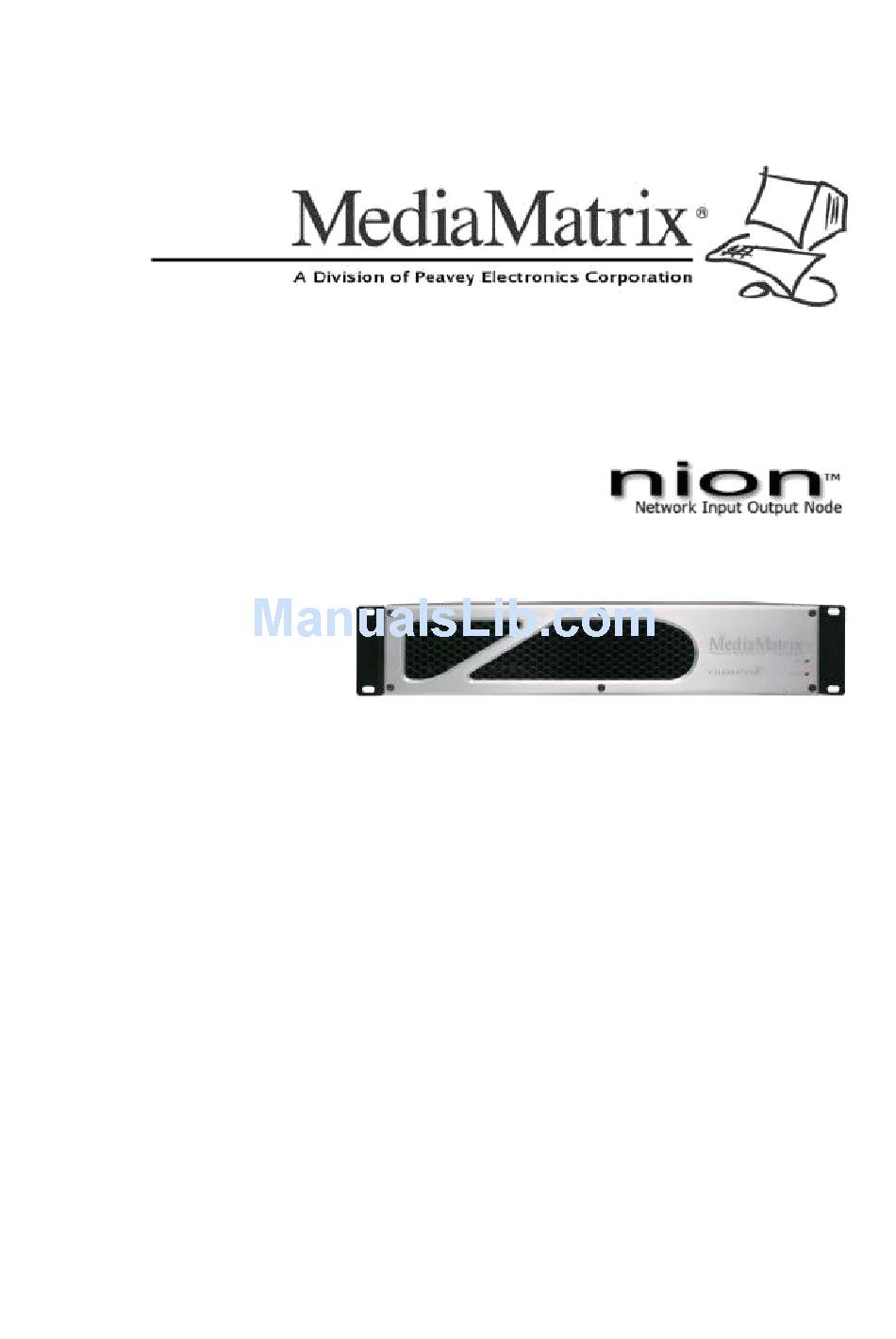

NION nE Quick Set-Up Guide
Version 1.7.2.0
March 27, 2015

Advertisement

loading
Need help?

Need help?

Do you have a question about the nion nE and is the answer not in the manual?

Questions and answers

Summary of Contents for MediaMatrix nion nE

  • Page 1 NION nE Quick Set-Up Guide Version 1.7.2.0 March 27, 2015...

  • Page 2: Copyright Notice

    Prepared by Peavey Digital Research, 6 Elm Place, Eynsham, Oxford, OX29 4BD, UK. Email:mmtechsupport@peavey.com (mailto:mmtechsupport@peavey.com). Scope This guide describes how to quickly set up a NION nE. For detailed information, including information on the warranty, refer to the NION Hardware Manual. Also visit the MediaMatrix Training Center (http://mmschool.peavey.com/).

  • Page 3: Important Safety Instructions

    1 - Important safety instructions Warning: When using electrical products, basic cautions should always be followed, including the following: 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6.
  • Page 4 a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E‚ the earth symbol‚ b) colored green or colored green and yellow. c) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.

  • Page 5: Installation And Configuration

     rear of the unit is the only way to remove power from the unit permanently. A power down action from the NION nE web interface will shut down the unit for  approximately 10 seconds. It will then automatically boot up.
  • Page 6 2. Set the subnet mask to 255.255.255.0. Specifying the IP address via the web browser 1. Open a web browser and enter the NION nE IP address into the web address bar. 2. Click the Network tab. If a different static IP address is required then: a) Make sure that static is selected in the IP Configuration Method list.
  • Page 7 Note: To change settings on the web interface a user name and password is needed. The default username is superuser; it has no password. If DHCP is required for set-up purposes, select DHCP in the IP Configuration Method list. Note: Care should be taken when choosing DHCP rather than static. DHCP mode is provided on the NION machine as a convenience when using NioNodes in informal settings, such as when you are experimenting.
  • Page 8 In the action list , click reboot and then click do it. 4. Once the NION nE has rebooted, enter the new IP address into the web browser. What to do next NIONs are designed to be used in conjunction with an NWare project. Refer to the section Adding a NioNode to your design in the NWare User Guide for more information.

  • Page 9: Troubleshooting

     3. Power cycle the NION nE. 4. As soon as the NION nE starts to boot up (and the fans can be heard), continuously press the Esc key. A command prompt like this => will be displayed in the console window.
  • Page 10 Specifying a new IP address  To specify a static IP address 1. Type and press Enter. setenv dhcp no 2. Type and press Enter. setenv ipaddr <IP address> 3. Type and press Enter. setenv netmask <subnet mask> 4. If you want the settings to be saved and used each time the NION boots, type saveenv press Enter.
  • Page 12 MediaMatrix® A Division of Peavey Electronics Corp. 5022 Hartley Peavey Drive, Meridian Mississippi, 39305, USA Phone: 866.662.8750 http://www.peaveycommercialaudio.com/products.cfm/mm/ Features & Specifications subject to change without notice Copyright © 2015, All Rights Reserved 80307501...
