Summary of Contents for Erbauer ERB372BJC

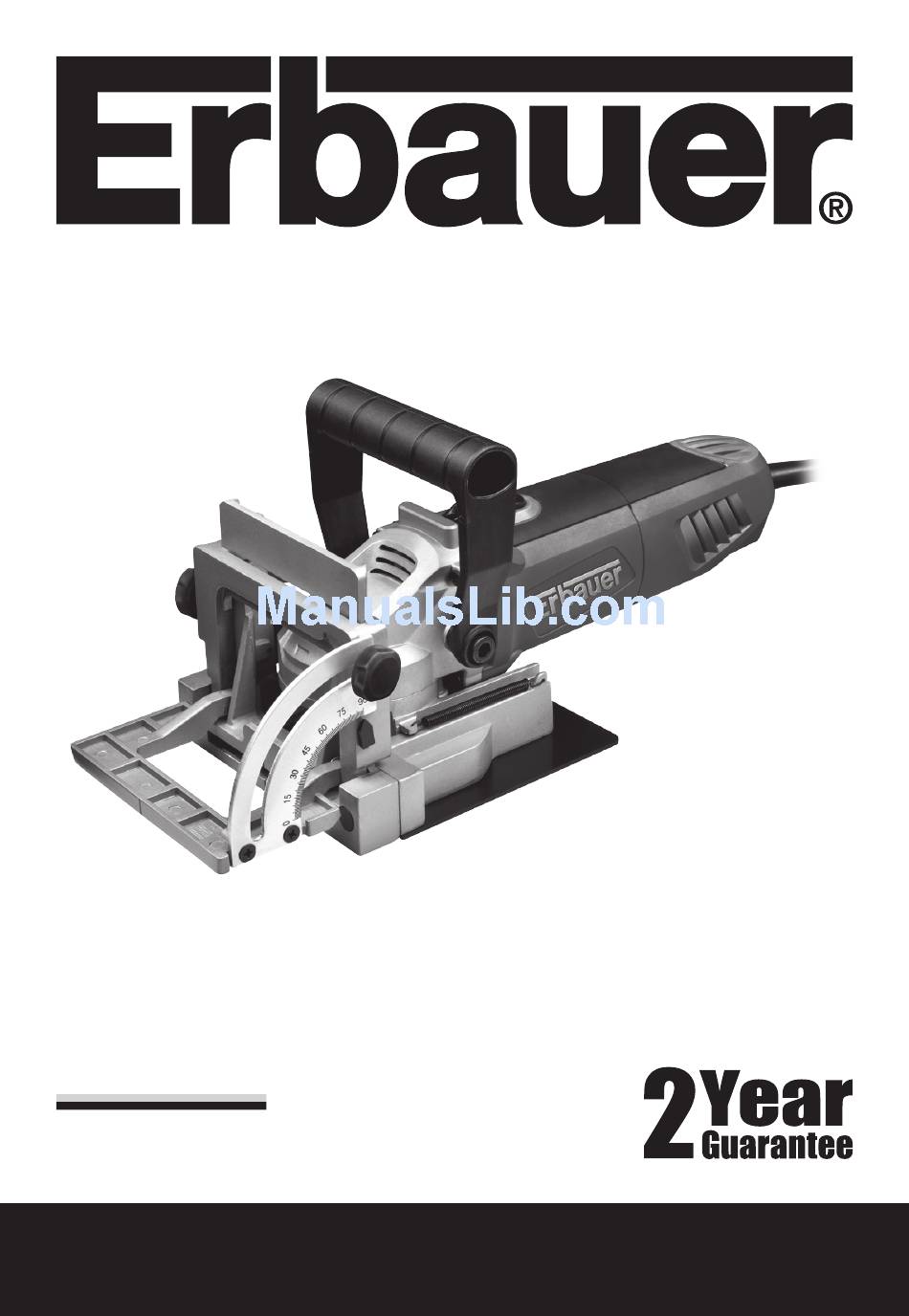

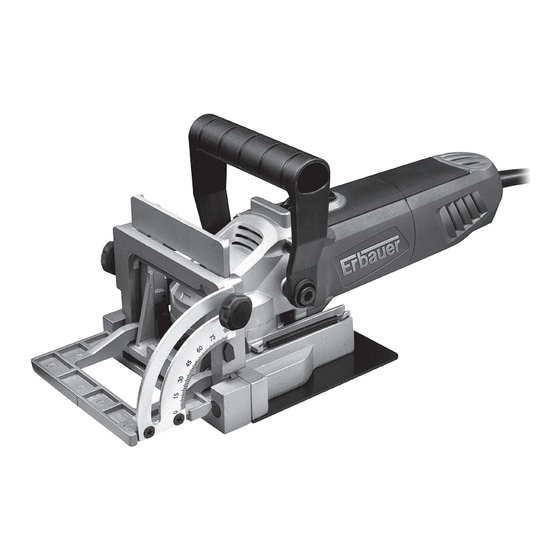

- Page 1 ERB372BJC 860W BISCUIT JOINTER...
- Page 2 Original Instructions (Version 2.0)
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 3. Personal safety a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 6 c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 7 ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR TOOL 1. Disc cutters must be rated for at least the speed recommended on the tool. Disc cutters running over rated speed can fly apart and cause injury. 2. Always use the guard. The guard protects the operator from broken disc cutter fragments and unintentional contact with the disc cutter.
- Page 8 devices or in a vice is held more secure than by hand. 13. Do not work materials containing asbestos. Asbestos is considered carcinogenic. 14. Take protective measures when dust can develop during working that is harmful to one’s health, combustible or explosive.
- Page 9 Warning: Some dust created by power cutting chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paint. • Crystalline silica from bricks and cement and other masonry products. •...
- Page 10 While working with this power tool, hand/arm vibrations occur. Adopt the correct working practices in order to reduce the exposure to vibration. This tool may cause hand-arm vibration syndrome if its use is not adequately managed. Warning: Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).Note The use of other tools will reduce the users’...
- Page 11 SYMBOLS To reduce the risk of injury, user must read instruction manual Double insulation Warning Wear ear protection Wear eye protection Wear dust mask Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
- Page 13 SOFT GRIP HANDLE ON/OFF SWITCH AUXILIARY HANDLE SPINDLE LOCK BUTTON LOCK KNOB OF THE HEIGHT STOP HEIGHT SCALE CUTTING DEPTH ADJUSTMENT KNOB DUST OUTLET BASE PLATE LOCK KNOB OF THE ANGLE STOP ANGLE SCALE ADJUSTABLE HEIGHT/ANGLE STOP DUST BAG WITH ADAPTER SPANNER OUTER FLANGE INNER FLANGE...
-
Page 14: Technical Data
TECHNICAL DATA Voltage 230-240V~50Hz Power input 860W No load speed 11,000/min Blade size Ø100XØ22.2X4mm Max cutting depth 14mm Protection class Machine weight 3.0kg NOISE AND VIBRATION DATA A weighted sound pressure =85dB (A) 3dB (A) A weighted sound power =96dB (A) 3dB (A) Wear ear protection when sound pressure is over 80dB (A) - Page 15 OPERATION INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. Intended use The machine is intended for cutting grooves for biscuit dowel joints in chipboard, hard- and softwood, plywood, fibreboard. ADJUSTMENT 1. ADJUSTING THE DEPTH OF CUT (See Fig.1) Fig.
-
Page 16: Starting Operation
Fig. 3 4. DUST EXTRACTION (See Fig.4) 1) Internal dust extraction with dust bag (13). For small cutting jobs, the dust bag can be used. Connect it with the dust extraction adapter and Insert to the dust outlet (8). Empty the dust bag regularly. 2) External dust extraction Connect a suitable vacuum cleaner to the dust outlet (8) through the dust extraction adapter (18). - Page 17 Fig. 6 4. CUTTING GROOVE JOINTS (See Fig.7) The various adjustments on the adjustable height / angle stop will enable you to make virtually any biscuit joint imaginable. The tool may be further enhanced by some simple jigs and fixtures that can be easily made.
-
Page 18: Maintenance
MAINTENANCE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. Never use water or chemical cleaners to clean your tool. Wipe clean with a dry cloth. Always store your tool in a dry place. Keep the motor ventilation slots clean. -
Page 19: Plug Replacement
PLUG REPLACEMENT (UK & IRELAND ONLY) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: BLUE = NEUTRAL BROWN = LIVE As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug,... -
Page 20: Declaration Of Conformity
Standards conform to: EN 60745-1:2009/+A11:2010 EN 60745-2-19:2009/+A1:2010 EN 55014-1:2006/+A1:2009/+A2:2011 EN 55014-2:1997/+A1:2001/+A2:2008 EN 61000-3-2:2006/+A1:2009/+A2:2009 EN 61000-3-3:2008 Authorised Signatory and technical file holder Date: 05/01/15 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT...
