Summary of Contents for Goldweb GP-L200M

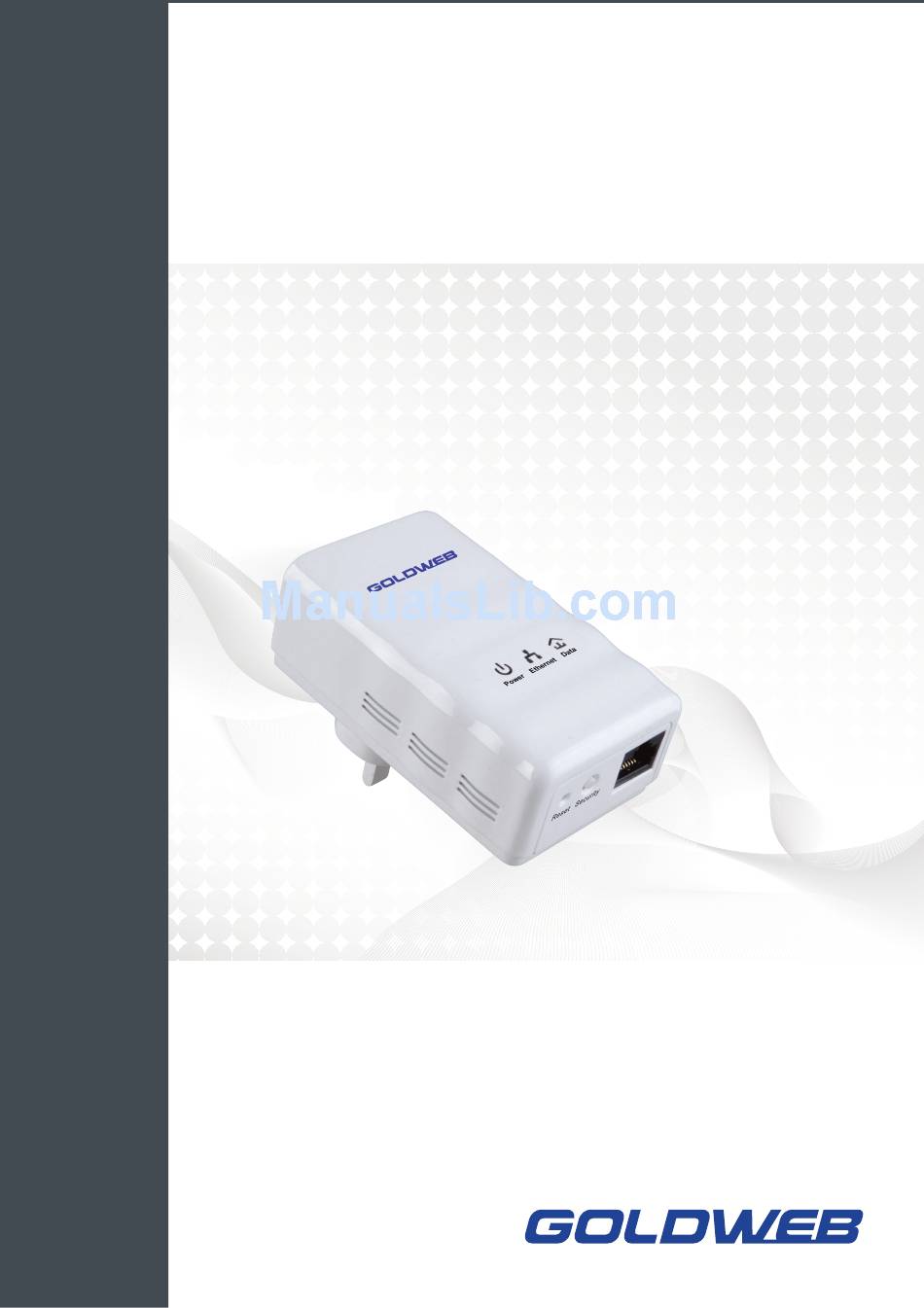

  • Page 1 200M Wallmount PLC adapter GP-L200M User Manual...

  • Page 2: Table Of Contents

    GP-L200M User Manual Contents Introduction ......................1 System Requirements ................1 Packing List ................... 1 Safety Precautions ..................... 2 Adapter....................... 3 Ethernet Interface .................. 3 Buttons ....................3 LEDs...................... 4 Utility Installation ....................6 How to Use the Utility..................9 Main Tab ....................

  • Page 3: Introduction

    GP-L200M User Manual Introduction The GP-L200M (also called “the device” hereinafter) is a low power consumption PLC device developed based on the master chip of INT6400. It can transmit the network data in the power line. The device is compatible with the latest requirements of the EUP Directive.

  • Page 4: Safety Precautions

    GP-L200M User Manual Safety Precautions This device is used for to connect to the AC power line. Before using the device, read the instructions carefully, in order to use the device correctly and safely. For the installation instructions, refer to the installation section of this guide.

  • Page 5: Adapter

    GP-L200M User Manual Adapter Ethernet Interface Use one end of a network cable to connect the Ethernet interface. Use the other end of the cable to connect the Ethernet interface of the computer or another Ethernet-enabled network device. Buttons Figure 1 Side panel of the device Reset: Restore the factory defaults.

  • Page 6: Leds

    GP-L200M User Manual LEDs There are 3 LEDs on the front panel to indicate the status of the adapter. Figure 2 Top view The following table describes the LEDs on the device. Color Behavior Description Green Power is on System enters the power save mode.
  • Page 7 GP-L200M User Manual Color Behavior Description other devices via the Ethernet interface. The device has connected to the power line network. The Data LED color will vary according to the physical rate. Green/Red Green: Link Rate > 40 Mbps Orange: 20 Mbps< Link Rate <40 Mbps...

  • Page 8: Utility Installation

    GP-L200M User Manual Utility Installation Note: Before installing the PLC utility software, make sure that there is no any other power line utility installed on your computer. If there is another utility installed, please uninstall it and restart your computer.
  • Page 9 GP-L200M User Manual Figure 3 Opening the setup wizard Step2 Click Next > to display the following page. Figure 4 Selecting the installation folder Step3 Click Browse… to select the installation folder, and then click Next > to continue.
  • Page 10 GP-L200M User Manual Figure 5 Completing the installation Step4 Click Close to complete the installation.

  • Page 11: How To Use The Utility

    GP-L200M User Manual How to Use the Utility Main Tab The Main screen provides a list of all power line devices logically connected to the computer when the utility is running. The top panel shows local HomePlug devices connected to the network interface card (NIC) of the computer.

  • Page 12: Mac Address

    GP-L200M User Manual the current logical network. The total number of remote devices connected in the same network is displayed above the remote device panel. Network type (Public or Private) depends on the network status of the local device. Autoscan shows whether the autoscan function is on.
  • Page 13 GP-L200M User Manual Figure 7 Setting a device password Step3 Click OK to verify the password. The password field accepts the device password in any case formats, with or without dash. A confirmation box appears if the password is entered correctly. If a device is not found, a message appears, providing suggestions to solve the common problems.

  • Page 14: Privacy Tab

    GP-L200M User Manual Figure 8 Adding a remote device Note: The device must be in the power line (plugged in), so that you can confirm the password and add the device to the network. If the device is not located, a warning message appears.
  • Page 15 GP-L200M User Manual the device included in the network. See Figure 9. All HomePlug devices are loaded using a default logical network (network name), which is normally “HomePlug”. In the Privacy screen, you can modify a private network by changing network names and passwords of devices.

  • Page 16: 5.3 Diagnostics Tab

    GP-L200M User Manual Local Dive Only, the devices previously set up with the same logical network (same network name) appears in the device list. Set All Devices This button is used to change the logical network of all devices that appear in the main panel.
  • Page 17 GP-L200M User Manual Figure 10 Diagnostics tab The Lower panel displays the history of all remote devices appeared on the computer over a certain period of time. All the devices and the parameters of the devices on the power line network are listed. Devices that are active on the current logical network show a transfer rate in the rate column.

  • Page 18: 5.4 About Tab

    GP-L200M User Manual MAC firmware version The diagnostics information displayed can be saved to a text file for later use, or be printed for reference for a technical support call. Click delete to delete the devices which are no longer part of the network. A dialog window pops up with a confirmation message if the user wants to delete a device whose password has been entered.

  • Page 19: How To Use The Nmk Pushbutton

    GP-L200M User Manual How to Use the NMK Pushbutton This section describes how to add new devices or remove old devices from a HomePlug AV logical network (AVLN) by using a NMK pushbutton. Power LED status indicates the operation progress and result.

  • Page 20: Joining A Network

    GP-L200M User Manual Joining a Network In this scenario a network exists, a new device, the ‘joiner’, wants to join the network. Any device on the existing network can become the ‘adder’. Step1 Press the pushbutton on the ‘joiner’ for at least 3 seconds.
  • Page 21 GP-L200M User Manual The Power LED on the ‘leaver’ momentarily extinguishes during reset, blinks during restart, then illuminates steadily. No error occurs. The user can disconnect the device from the medium or join it to another logical network on the same medium when it is completed.

  • Page 22: Appendix A Specifications

    GP-L200M User Manual Appendix A Specifications Chipset Intellon INT6400 Protocol Compliant with HomePlug AV 1.1 Co-existing with existing HomePlug 1.0 System Support Windows 98SE, Windows 2000, Windows ME, Windows XP 32/64 bit and Windows Vista 32/ 64bit PLC Rate 200 Mbps...
  • Page 23 GP-L200M User Manual Certifications CE, UL, FCC Part 15 Class B Green Standard RoHS Physical L×W×H: 90 mm × 55 mm × 34 mm Characteristics Weight 108 g...

  • Page 24: Appendix B Acronyms And Abbreviations

    GP-L200M User Manual Appendix B Acronyms and Abbreviations AVLN AV In-home Logical Network, the AVLAN is the set STAs that possess same network Membership key, every AVLN is managed by a single CCo Central Coordinator, the CCo is a superset of a...

  • Page 25: Appendix C About Qos

    GP-L200M User Manual Appendix C About QoS PLC 200AV allows 4 levels of Channel Access Priority (CAP (0 – 3)). The 8 levels of VLAN Ethernet tags must be mapped to the 4 levels of CAP priority, where CAP 3 is the highest priority and CAP 0 is the lowest.
  • Page 26 Shenzhen Landing Electronics Co.,Ltd Address: 3F Block A,BaiyingBuilding,No.1019 Nanhai Road, Nanshan District,Shenzhen,Guangdong, China Post Code:518067 E-Mail: sales@goldwebcn.com Website: http://www.goldwebcn.com...
