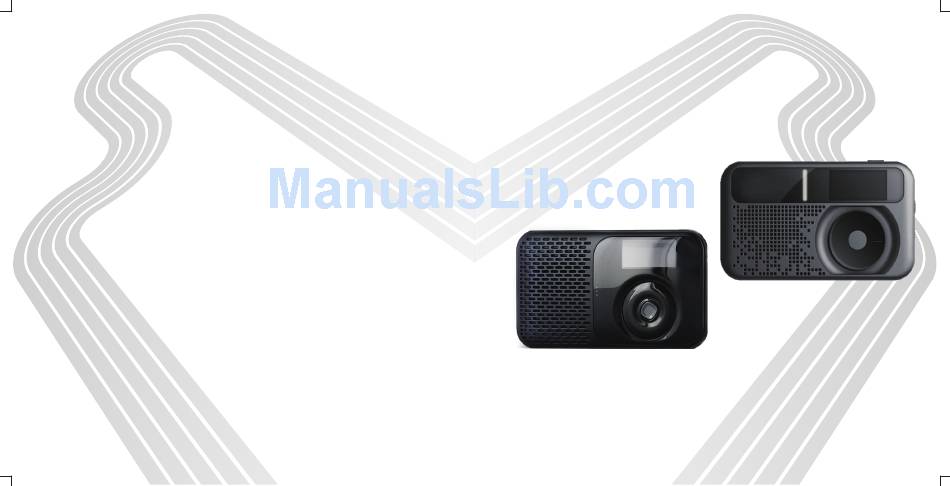

- Page 1 DAB/DAB+ Radio User Manual PPS006 PPS003...
-
Page 2: Quick Start Guide
Quick Start Guide Press the Power Button for more than 3 seconds to turn on the radio. The green power indicator illuminates and start-up screen will appear. DAB Radio The radio can search for local DAB, DAB+ radio stations; if enter into the DAB mode for the first time, it will be access to automatic search interface after the start-up screen, and it will be access to <Station List>... - Page 3 Songs can be stored into Flash or MicroSD card; the radio can play MP3 music stored in Flash and MicroSD card fluently. At the same time, it can set the play mode, play lists and equalizer. Clock & Alarm You can manually adjust the clock or use DAB and FM to synchronize clock. You can set either a DAB or FM broadcast radio as alarm, when the alarm sounds, the radio will play preset radio station automatically.
-
Page 4: Table Of Contents
User Manual Brief Introduction Packaging and Specifications Packaging..............Specifications............DAB Function ............FM Function............MP3..............Time and Alarm............ Battery ..............Device ..............Button Instruction Display Types Broadcasting Screen..........Menu Screen............. Information Screen............ Query Screen............Main Menu Main Menu Structure..........Mode Switching............ - Page 5 User Manual DAB Menu Preset List..............Station List............... Local Scan............... Manual Tune............. Region..............DRC................. Record..............Sort................System Setup............Main Menu............... DAB Mode Operation Basic Operation............Power On DAB for the First Time......Power On DAB Next Time........Select Stations............ Play Stations............Store Stations.............
- Page 6 User Manual FM Radio Menu Introduction and Operation Preset List..............Channel List.............. Seek Mode..............Tune Mode..............Auto Program............Clear All Station............Region............... Scan Setting.............. Audio Setting............. Record..............System Setup............Main Menu..............Flash................. MicroSD Card............Audio Setting............. Play Mode............Play Range............EQ................
- Page 7 User Manual System Setup............Main Menu............... MP3 User interface for display........Download the files from PC........System Setup Menu Introduction and Operation Set Power Off Time..........Time Setup.............. Display Time & Date..........Set Time & Date..........Alarm............... Brightness..............Backlight TimeOut............ Reset All..............
-
Page 8: Brief Introduction
Brief Introduction Full-Join PPS006 is a digital multimedia products with DAB, DAB+, FM, MP3, alarm clock functions. DAB is the abbreviation of Digital Audio Broadcasting, it is the third-generation broadcasting after the AM, FM traditional analogue broadcasting; this new transmission... -
Page 9: Packaging And Specifications
Packaging and Specifications Packaging Thank you for choosing our DAB radio, please check the accessories in the box according to the list as below. If there is anything shortage, please contact you retailer. 1. DAB radio 1 pc 2. USB 2.0 cable 1 pc 3. -
Page 10: Fm Function
status. The default recording format is AAC when it is in DAB+ status. The capacity is up to the capacity of Flash or MicroSD card. • Support preset function, and the maximum is 30 radio stations in preset. FM Function •... -
Page 11: Time And Alarm
• Support equalizer function. • Support play, pause, next, previous function. Time and Alarm • The time can be set up manually or synchronous with DAB or FM. • Alarm will start with a radio station, user can set up to play a DAB or FM radio station on the alarming time, and the device can turn on automatically and play the preset radio station. -
Page 12: Button Instruction
Button Instruction Back Button Short pressing back to upper menu. Long pressing Control Wheel (3 seconds) back to main menu under the function. To select the menu entry by circling. Speaker Switch Enter Button Left is speaker off, right is speaker on. -
Page 13: Display Types
Display Types Broadcasting Screen There are three modes: DAB, FM, and MP3. : Display the current electricity directives. : Display the current volume. : It will appear after the alarm is set. 11:01: Display the current time. : Display the signal strength. SZTV-2: Display a station name. -
Page 14: Information Screen
A menu screen displays four options, with the currently selected option shows “>”. If more than four options are available, turn the Control Wheel up and down to select it. Note: Under DAB mode, FM mode or MP3 mode, it is with <System Setup> and <Main Menu>, you can make system settings by access to <System Setup>... -
Page 15: Query Screen
Query Screen A query screen is used to offer the user a choice. Queries are worded so that you can respond with a “Yes” (Press Enter Button) or a “No” (Press Back Button). Example Query Screen: 11:01 Previousiy Stored Stations Will Be Deleted. -
Page 16: Mode Switching
can select <DAB>, <FM> or <MP3> to access to appropriate mode. Power on: Press the Power Button for more than 3 seconds to turn on the radio. Power off: Press the Power Button for more than 3 seconds to turn off the radio. When power on the radio for the first time, it will show the <Main Menu>... - Page 17 11:01 Welcome to DAB Access to FM mode: 11:01 Welcome to FM Access to MP3 mode: 11:01 Welcome to MP3...
-
Page 18: Dab Menu
DAB Menu DAB Menu structure • Preset List • Station List • Local Scan • Manual Tune • Region • DRC • Record • Sort • System Setup • Main Menu Preset List Display a list of preset stations. The preset stations are stored in the memory of the DAB radio. -
Page 19: Manual Tune
11:01 Total: 0 Search for local stations, select the menu <Local Scan>, the radio will search for radio stations automatically and display the search progress, when the search is finished, the radio will store the information of DAB stations, and display the number of radio stations be searched. -
Page 20: Region
will display the number of radio stations be searched and it will play the first station be searched automatically. If no station be searched, it will display “0”. When search finished, it will be access to broadcast interface. Region You can select a appropriate region, the regions are: China, Korea, Europe, UK Different regions with the corresponding frequency range: •... -
Page 21: System Setup
The stations stored in the <Station List> can be sorted, there are two sorts: The first one is according to the frequency; The second one is according to the radio station names in alphabetical. System Setup Please refer to <System Setup Menu Introduction and Operation> from page 31 to page 35. Main Menu Please refer to <Main Menu Introduction>... -
Page 22: Play Stations
Turn the Control Wheel in broadcast interface or Select <Station List> in the DAB menu to access to <Station List> menu; You can press the Enter Button to select the radio stations you desired. Play Stations Press the Back Button to DAB menu, turn the Control Wheel and press the Enter Button to highlight <Preset List>... -
Page 23: Fm Radio Menu Introduction And Operation
FM Radio Menu Introduction and Operation FM Radio Menu Structure: • Preset List • Channel List • Seek Mode • Tune Mode • Auto Program • Clear All List • Region • Scan Setting • Audio Setting • Record • System Setup •... -
Page 24: Seek Mode
Auto program searched stations will be stored in the memory of the DAB radio, it can be stored up to 30 stations. The user can select a station from the list. Seek Mode Press Back Button go back to main menu, select <Seek Mode> and press the Enter Button, it will search the stations automatically. -
Page 25: Clear All Station
Enter Button to enter Auto Program Mode. The system will search the stations between 87.50MHz~108.00MHz automatically and will show the frequency. At the same time, it will store the received stations in the Channel List. (30 stations at most) After search is finished, it will automatically revert to the Channel List. The Channel List will show the received stations, any previously stored stations will be replaced. -
Page 26: Region
If you confirm and press the Enter Button, the radio will clear all the stored stations in the Preset List and Channel List and confirm with “Clear All”, later the system will go back to the playing interface. Region In the playing interface, press the Back Button to enter the FM main menu, turn and press the Control Wheel to <Region>, you can select the corresponding region according to your location.The Region contains: <U.S.A>, <Europe>, <Japan>;... -
Page 27: Record
In the playing interface, press Back Button and enter the FM main menu, turn Control Wheel to <Audio Setting> and press the Enter Button, the interface will show “Listen in Mono Only”? Press Enter Button, it will be set to Listen in Mono only and return to the FM main menu. -
Page 28: System Setup
Button and exit the record interface. System Setup Please refer to <System Setup Menu Introduction and Operation> from page 31 to page 35. Main Menu Please refer to <Main Menu Introduction> from page 14 to page 16. MP3 Menu Structure: •... -
Page 29: Audio Setting
In the MP3 main menu, turn Control Wheel to <MicroSD Card>, press Enter Button to view MicroSD card display and the audio files in MicroSD card. If there isn't any audio file or directory, it will display “NO FILE”; If there is an audio file, press the Enter Button to play. Audio Setting 11:01 >Play Mode... -
Page 30: System Setup
11:01 >Single Directory Turn Control Wheel to <Play Range> and press the Enter Button, it will set the play range as <Single>, <Directory>, <All>. Turn Control Wheel to select any one of the three modes, press Enter Button to save them and return to <Play Range>. -
Page 31: Main Menu
Please refer to <System Setup Menu Introduction and Operation> from page 31 to page 35. Main Menu Please refer to <Main Menu Introduction> from page 14 to page 16. MP3 User interface for display 11:01 Music.mp3 ID3 Title:Music No Lyric 00:34/02:45 MP3 Playing Interface In this interface, turn Control Wheel to select the previous or the next;... -
Page 32: System Setup Menu Introduction And Operation
“USB Storage” shown in the interface on the display when you choose <USB Mode>. You may copy the songs into the device and play in the mode of MP3, the previous mode will be shown when the USB cable is plug out. When you choose <Charging &... -
Page 33: Time Setup
11:01 >30 Minutes 45 Minutes 60 Minutes Disable The unit will Power Off after the selected time interval passed automatically. Time Setup Display Time & Date This menu can display current date, time, week. Set Time & Date • Time Sync The time can be synchronized by DAB or FM. -
Page 34: Alarm
change the current display time. Press Back Button and go back to the previous menu. Alarm This device provides one alarm clock, the users can set the alarm, the alarm also works even when the unit is power off. It will automatically alarm when it reaches the setting time. -
Page 35: Brightness
the radio will save this alarm setting and return to Time Setup interface. Short pressing Back Button, it will switch from back to front; Long pressing Back Button will automatically exit this interface. According to the above method to adjust the alarm time, select the alarm mode and radio station which is used as the alarm. -
Page 36: Info
interface displays <System Restart>, later the device will reboot automatically. After the system reset, the stored DAB, FM stations and DAB radio information will be lost. Info Select <Info> menu, it will enter the machine version interface, press any key, it will exit. Charging the Device The device can be charged by USB 2.0 cable, it would be better to charge when it is off in order to assure the lifetime of the battery. -
Page 37: Safety Warning
Safety Warning Please read before usage 1. If this DAB radio has been moved from a cold place to a warm place, do not turn on the radio for 2-3 hours. (E.g. from a cold car boot to a warm room) There is a possibility that excessive moisture may damage the DAB radio, in order to avoid damage, please place at room temperature for 2-3 hours before use.
