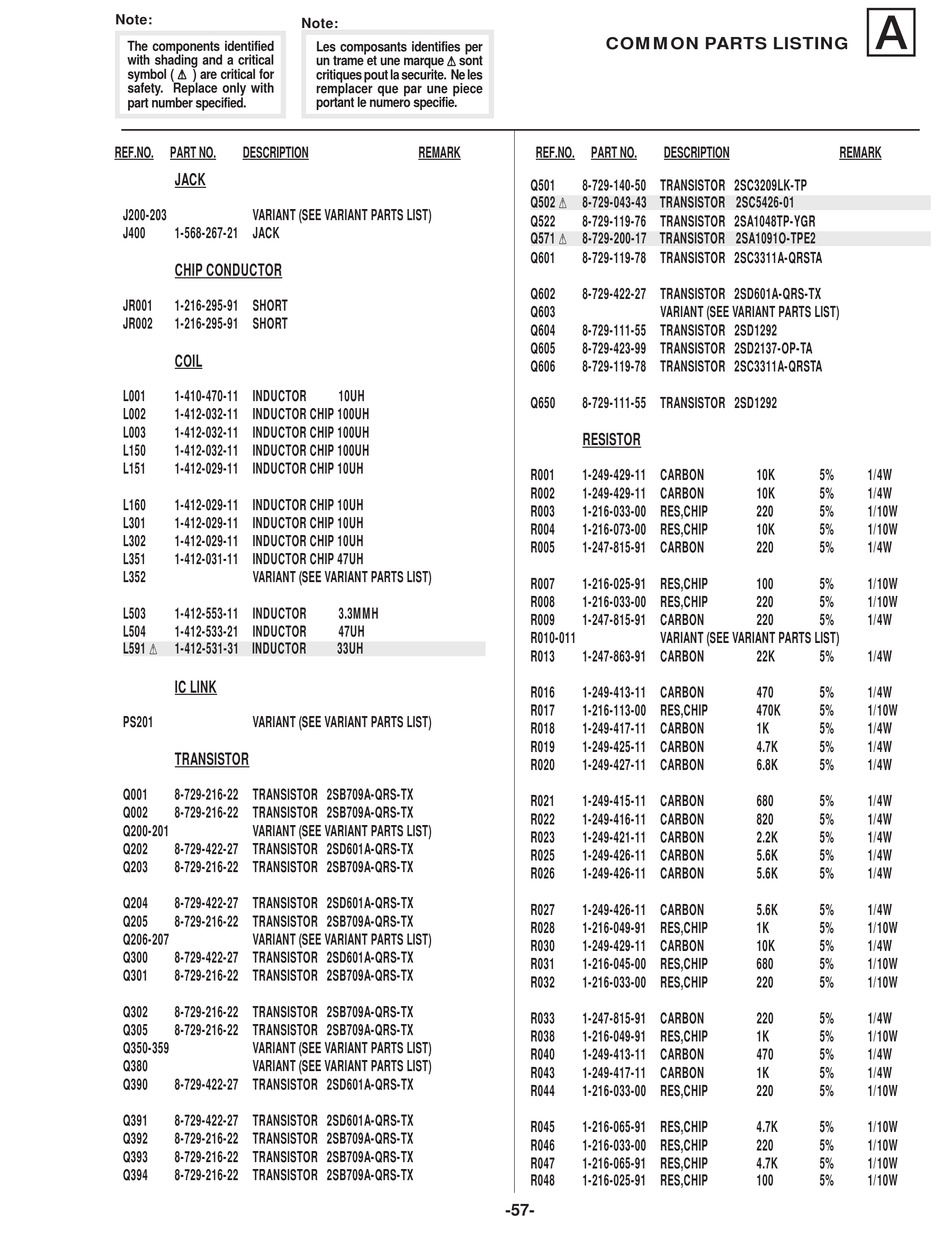

Sony KV-13M series Service Manual page 50

Note:
The components identified
with shading and a critical
symbol ( ¡ ¡ ¡ ¡ ¡ ) are critical for
safety. Replace only with
part number specified.
REF.NO. PART NO. DESCRIPTION
JACK
J200-203 VARIANT (SEE VARIANT PARTS LIST)
J400 1-568-267-21 JACK
CHIP CONDUCTOR
JR001 1-216-295-91 SHORT
JR002 1-216-295-91 SHORT
COIL
L001 1-410-470-11 INDUCTOR
L002 1-412-032-11 INDUCTOR CHIP 100UH
L003 1-412-032-11 INDUCTOR CHIP 100UH
L150 1-412-032-11 INDUCTOR CHIP 100UH
L151 1-412-029-11 INDUCTOR CHIP 10UH
L160 1-412-029-11 INDUCTOR CHIP 10UH
L301 1-412-029-11 INDUCTOR CHIP 10UH
L302 1-412-029-11 INDUCTOR CHIP 10UH
L351 1-412-031-11 INDUCTOR CHIP 47UH
L352 VARIANT (SEE VARIANT PARTS LIST)
L503 1-412-553-11 INDUCTOR
L504 1-412-533-21 INDUCTOR
L591 ¡
1-412-531-31 INDUCTOR
IC LINK
PS201 VARIANT (SEE VARIANT PARTS LIST)
TRANSISTOR
Q001 8-729-216-22 TRANSISTOR 2SB709A-QRS-TX
Q002 8-729-216-22 TRANSISTOR 2SB709A-QRS-TX
Q200-201 VARIANT (SEE VARIANT PARTS LIST)
Q202 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
Q203 8-729-216-22 TRANSISTOR 2SB709A-QRS-TX
Q204 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
Q205 8-729-216-22 TRANSISTOR 2SB709A-QRS-TX
Q206-207 VARIANT (SEE VARIANT PARTS LIST)
Q300 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
Q301 8-729-216-22 TRANSISTOR 2SB709A-QRS-TX
Q302 8-729-216-22 TRANSISTOR 2SB709A-QRS-TX
Q305 8-729-216-22 TRANSISTOR 2SB709A-QRS-TX
Q350-359 VARIANT (SEE VARIANT PARTS LIST)
Q380 VARIANT (SEE VARIANT PARTS LIST)
Q390 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
Q391 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
Q392 8-729-216-22 TRANSISTOR 2SB709A-QRS-TX
Q393 8-729-216-22 TRANSISTOR 2SB709A-QRS-TX
Q394 8-729-216-22 TRANSISTOR 2SB709A-QRS-TX
Note:
Les composants identifies per
un trame et une marque ¡ ¡ ¡ ¡ ¡ sont
critiques pout la securite. Ne les
remplacer que par une piece
portant le numero specifie.
REMARK
10UH
3.3MMH
47UH
33UH
VARIANT PARTS LISTING
COMMON PARTS LISTING
The parts in this section belong to the following model(s) only:
REF.NO. PART NO. DESCRIPTION
Q501 8-729-140-50 TRANSISTOR 2SC3209LK-TP
Q502 ¡
8-729-043-43 TRANSISTOR 2SC5426-01
Q522 8-729-119-76 TRANSISTOR 2SA1048TP-YGR
Q571 ¡
8-729-200-17 TRANSISTOR 2SA1091O-TPE2
Q601 8-729-119-78 TRANSISTOR 2SC3311A-QRSTA
Q602 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
Q603 VARIANT (SEE VARIANT PARTS LIST)
Q604 8-729-111-55 TRANSISTOR 2SD1292
Q605 8-729-423-99 TRANSISTOR 2SD2137-OP-TA
Q606 8-729-119-78 TRANSISTOR 2SC3311A-QRSTA
Q650 8-729-111-55 TRANSISTOR 2SD1292
RESISTOR
R001 1-249-429-11 CARBON
R002 1-249-429-11 CARBON
R003 1-216-033-00 RES,CHIP
R004 1-216-073-00 RES,CHIP
R005 1-247-815-91 CARBON
R007 1-216-025-91 RES,CHIP
R008 1-216-033-00 RES,CHIP
R009 1-247-815-91 CARBON
R010-011 VARIANT (SEE VARIANT PARTS LIST)
R013 1-247-863-91 CARBON
R016 1-249-413-11 CARBON
R017 1-216-113-00 RES,CHIP
R018 1-249-417-11 CARBON
R019 1-249-425-11 CARBON
R020 1-249-427-11 CARBON
R021 1-249-415-11 CARBON
R022 1-249-416-11 CARBON
R023 1-249-421-11 CARBON
R025 1-249-426-11 CARBON
R026 1-249-426-11 CARBON
R027 1-249-426-11 CARBON
R028 1-216-049-91 RES,CHIP
R030 1-249-429-11 CARBON
R031 1-216-045-00 RES,CHIP
R032 1-216-033-00 RES,CHIP
R033 1-247-815-91 CARBON
R038 1-216-049-91 RES,CHIP
R040 1-249-413-11 CARBON
R043 1-249-417-11 CARBON
R044 1-216-033-00 RES,CHIP
R045 1-216-065-91 RES,CHIP
R046 1-216-033-00 RES,CHIP
R047 1-216-065-91 RES,CHIP
R048 1-216-025-91 RES,CHIP
-57-
A
A
REMARK
10K 5% 1/4W
10K 5% 1/4W
220 5% 1/10W
10K 5% 1/10W
220 5% 1/4W
100 5% 1/10W
220 5% 1/10W
220 5% 1/4W
22K 5% 1/4W
470 5% 1/4W
470K 5% 1/10W
1K 5% 1/4W
4.7K 5% 1/4W
6.8K 5% 1/4W
680 5% 1/4W
820 5% 1/4W
2.2K 5% 1/4W
5.6K 5% 1/4W
5.6K 5% 1/4W
5.6K 5% 1/4W
1K 5% 1/10W
10K 5% 1/4W
680 5% 1/10W
220 5% 1/10W
220 5% 1/4W
1K 5% 1/10W
470 5% 1/4W
1K 5% 1/4W
220 5% 1/10W
4.7K 5% 1/10W
220 5% 1/10W
4.7K 5% 1/10W
100 5% 1/10W
