Page 1: User Manual

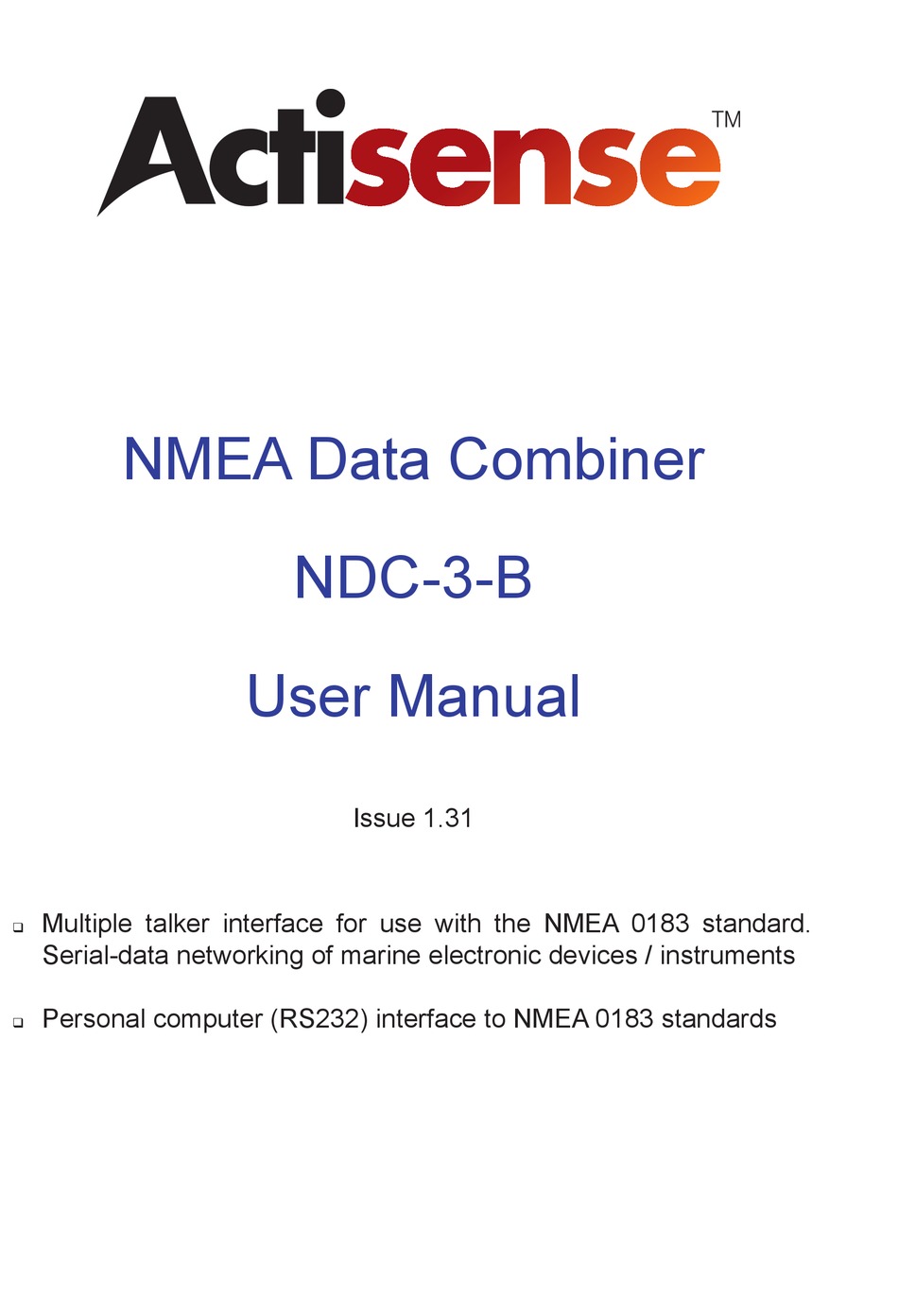

NMEA Data Combiner Multiple talker interface for use with the NMEA 0183 standard. Serial-data networking of marine electronic devices / instruments Personal computer (RS232) interface to NMEA 0183 standards NDC-3-B User Manual Issue 1.31... -
Page 3: Table Of Contents
Connecting to NMEA devices NMEA 0183 Inputs NMEA 0183 Output Other Connections Connecting to a Personal Computer Connecting to the battery supply Troubleshooting guide Diagnostic LED Specifications Company Information © 2005 Active Research Limited NMEA Data Combiner - NDC-3-B Page 3... -
Page 4: Important Notices
The NDC-3 does not validate the NMEA data it receives in any way. Neither the NMEA sentence checksum, nor the data contained within the NMEA sentence is validated. -
Page 5: General Features
16-18mA at 24 volts. A diagnostic LED indicates the operation mode of the NDC-3, if any faults have been detected, or the peak load currently on any one of the NMEA inputs. Very tough Polycarbonate case is certified to IP66 (classified as “totally protected against dust and protection... -
Page 6: Connecting Devices Together
Actisense™ Connecting devices together The basics NMEA data is transmitted from an information source such as GPS, depth sounder, gyro compass etc. These data sending devices are called “Talkers”. Equipment receiving this information such as a chart- plotter, radar or NMEA display is called a “Listener”. Unfortunately, only one Talker can be connected on to a single NMEA 0183 system at any one time. -
Page 7: Connections
Connections The NMEA Data Combiner (NDC-3) has screw-terminal “Phoenix” type external connections for: - 1. Four NMEA 0183 inputs. All NMEA 0183 inputs are of the differential opto- isolated type and use the unique Actisense™ low current drain circuitry (2mA @ 2.0v) to conform in full with the NMEA 0183 marine electronic device network communication standard, and are flexible enough... -
Page 8: Connecting To Nmea Devices
NMEA 0183 device output specifications. Please determine (from device manufacturer’s information) if the device(s) required to be connected to the Actisense™ NDC-3 conforms in full to the NMEA 0183 network communication standard. If it does not, the flexible Actisense™ NDC-3 inputs should still be capable of interfacing with the device, though this is not guaranteed. -
Page 9: Other Connections
3. The TX of the NDC-3 should be connected to the RX of the computer (standard D-type, pin 2) and the NDC-3 RX should be connected to the TX of the computer (pin 3). -
Page 10: Troubleshooting Guide
Troubleshooting guide This guide will concentrate on all relevant troubleshooting issues above simple cable connection faults. Therefore, the cables between the NDC-3 hardware and any other devices should be checked as a matter of course, before continuing with this guide. -
Page 11: Specifications
1. Current consumption measured under no-load conditions 2. NMEA output is RS-485 compatible. 3. NMEA 0183 inputs and outputs on the NDC-3 are fixed to 4800 baud 4. RS232 baud rate is fixed at 38400 baud on the NDC-3 © 2005 Active Research Limited... -
Page 12: Company Information
Actisense™ Company Information Active Research Limited 5, Wessex Trade Centre Ringwood Road Poole Dorset BH12 3PF Telephone: 01202 746682 (International : +44 1202 746682) Fax: 01202 746683 (International : +44 1202 746683) Actisense™ on the Web: For advice, support and product details E-mail: support@actisense.com Website:...
