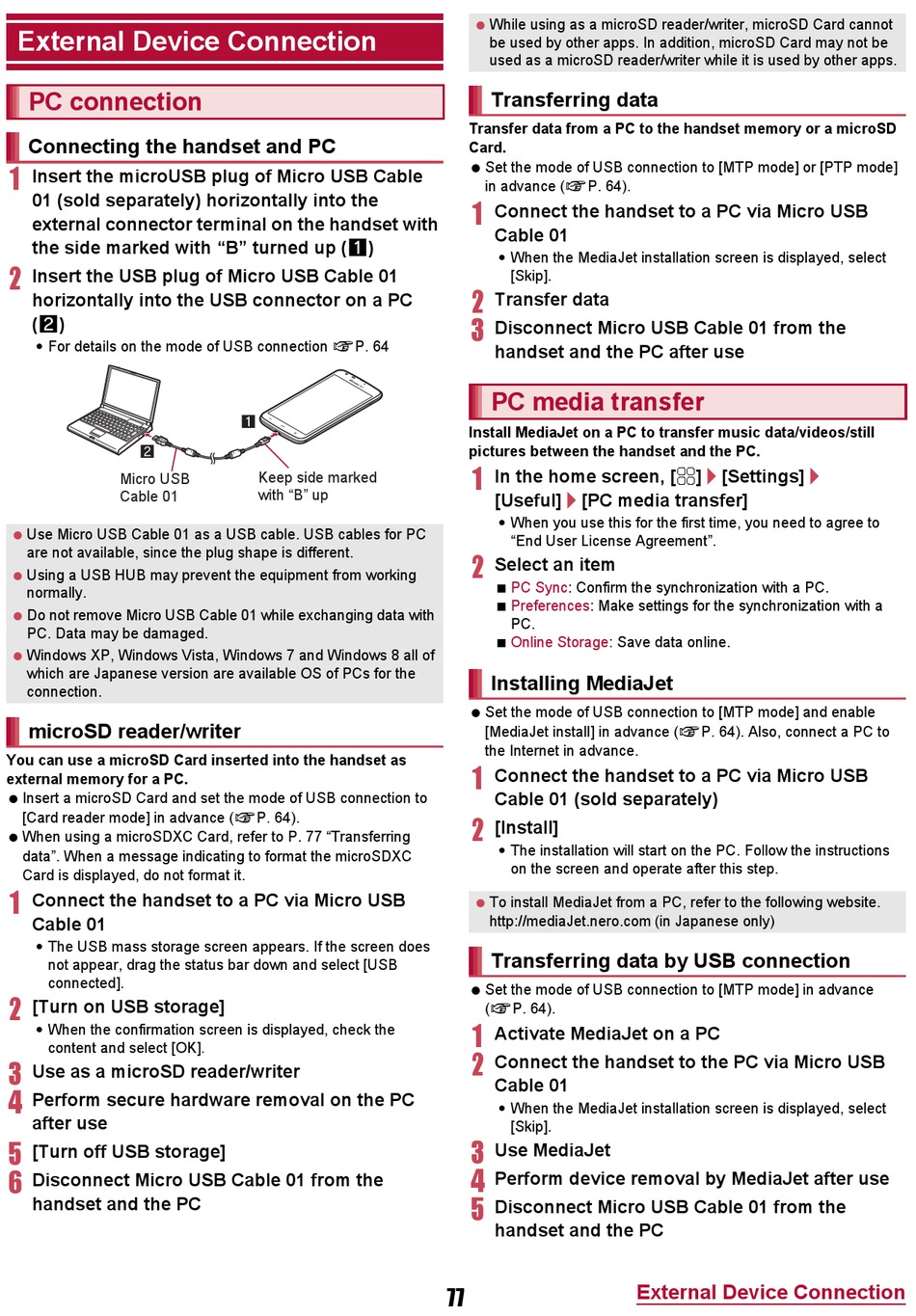

External Device Connection

PC connection

Connecting the handset and PC
1
Insert the microUSB plug of Micro USB Cable
01 (sold separately) horizontally into the
external connector terminal on the handset with
the side marked with "B" turned up (1)
2
Insert the USB plug of Micro USB Cable 01
horizontally into the USB connector on a PC
(2)
: For details on the mode of USB connection nP. 64
Micro USB
Cable 01
Use Micro USB Cable 01 as a USB cable. USB cables for PC
are not available, since the plug shape is different.
Using a USB HUB may prevent the equipment from working
normally.
Do not remove Micro USB Cable 01 while exchanging data with
PC. Data may be damaged.
Windows XP, Windows Vista, Windows 7 and Windows 8 all of
which are Japanese version are available OS of PCs for the
connection.
microSD reader/writer
You can use a microSD Card inserted into the handset as
external memory for a PC.
Insert a microSD Card and set the mode of USB connection to
[Card reader mode] in advance (nP. 64).
When using a microSDXC Card, refer to P. 77 "Transferring
data". When a message indicating to format the microSDXC
Card is displayed, do not format it.
1
Connect the handset to a PC via Micro USB
Cable 01
: The USB mass storage screen appears. If the screen does
not appear, drag the status bar down and select [USB
connected].
2
[Turn on USB storage]
: When the confirmation screen is displayed, check the
content and select [OK].
3
Use as a microSD reader/writer
4
Perform secure hardware removal on the PC
after use
5
[Turn off USB storage]
6
Disconnect Micro USB Cable 01 from the
handset and the PC
Keep side marked
with "B" up
While using as a microSD reader/writer, microSD Card cannot
be used by other apps. In addition, microSD Card may not be
used as a microSD reader/writer while it is used by other apps.
Transferring data
Transfer data from a PC to the handset memory or a microSD
Card.
Set the mode of USB connection to [MTP mode] or [PTP mode]
in advance (nP. 64).
1
Connect the handset to a PC via Micro USB
Cable 01
: When the MediaJet installation screen is displayed, select
[Skip].
2
Transfer data
3
Disconnect Micro USB Cable 01 from the
handset and the PC after use

PC media transfer

Install MediaJet on a PC to transfer music data/videos/still
pictures between the handset and the PC.
1
In the home screen,
[Useful]/[PC media transfer]
: When you use this for the first time, you need to agree to
"End User License Agreement".
2
Select an item
PC Sync: Confirm the synchronization with a PC.
Preferences: Make settings for the synchronization with a
PC.
Online Storage: Save data online.
Installing MediaJet
Set the mode of USB connection to [MTP mode] and enable
[MediaJet install] in advance (nP. 64). Also, connect a PC to
the Internet in advance.
1
Connect the handset to a PC via Micro USB
Cable 01 (sold separately)
2
[Install]
: The installation will start on the PC. Follow the instructions
on the screen and operate after this step.
To install MediaJet from a PC, refer to the following website.
( h ttp://mediaJet.nero.com)
Transferring data by USB connection
Set the mode of USB connection to [MTP mode] in advance
(nP. 64).
1
Activate MediaJet on a PC
2
Connect the handset to the PC via Micro USB
Cable 01
: When the MediaJet installation screen is displayed, select
[Skip].
3
Use MediaJet
4
Perform device removal by MediaJet after use
5
Disconnect Micro USB Cable 01 from the
handset and the PC
77
[R]/[Settings]/
(in Japanese only)
External Device Connection
