METCALFE SM7 PLANETARY MIXER
Operating & Maintenance Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the SM7 and is the answer not in the manual?

Questions and answers

Related Manuals for Metcalfe SM7

Summary of Contents for Metcalfe SM7

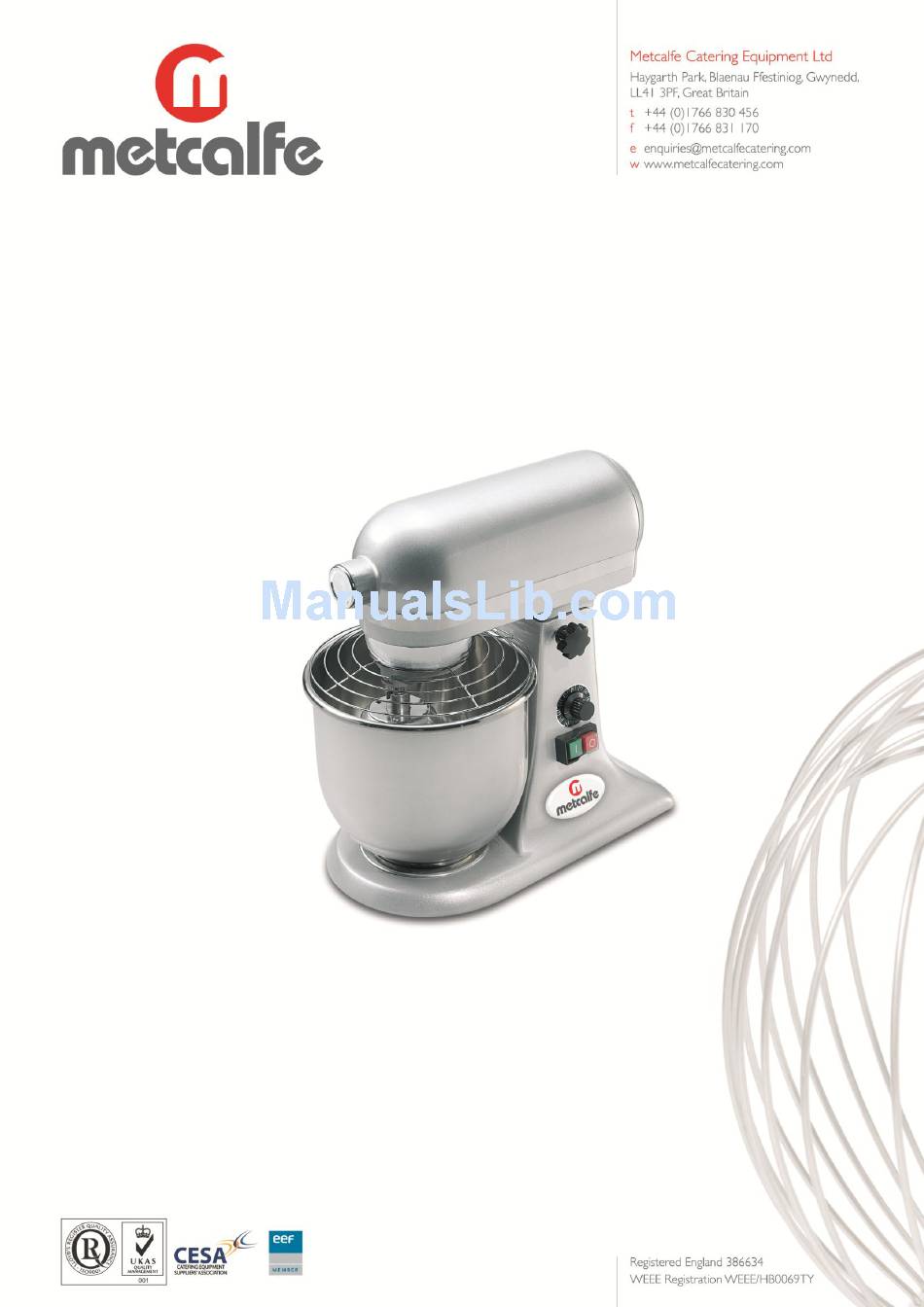

  • Page 1 METCALFE SM7 PLANETARY MIXER Operating & Maintenance Instructions...

  • Page 2: Technical Specifications

    SM7 PROFESSIONAL PLANETARY MIXER The Metcalfe SM7 Mixer is a professional planetary machine with a powerful, variable speed motor. The SM5 comes complete with a 5 litre stainless steel removable bowl, beater, whisk and dough hook. It is also fully interlocked for safety whilst in use.

  • Page 3: Operation

    OPERATION The machine works off 230volt 50Hz 1Phase supply, and comes fitted with a 3-pin 13amp fused plug. Installation of attachments: Loosen securing knob on side, raise head and lock in place using securing knob. Place attachment on shaft and turn 45 counter clockwise.
  • Page 4 SM7 BREAKDOWN DRAWING...
  • Page 5 SM7 PARTS LIST Part Part Item Part Name Item Part Name Number Number 50402004 Long labels 50405007 Toe-boards 40101500 Wire whip 50405076 Small spiral bevel gear 40102000 Hook 50501004 Motor 40101800 Safety guard 40101200 Planet gear 50401001 Bowl 50404010 Planet gear pad...

  • Page 6: Troubleshooting

    Reduce amount of ingredients and rotating speed slows down Incorrect attachment is fitted Choose correct attachment Attachments hit Attachment is misshapen Check attachment inside of bowl WARNING – IF EQUIPMENT DOES NOT WORK, PLEASE ENSURE IT IS SERVICED BY A METCALFE APPOINTED ENGINEER...
  • Page 7 On all return to factory warranty items, it is the responsibility of the purchaser to return the entire unit to the factory, properly packed and labelled. All repairs, alterations or replacement of materials or parts not authorised by Metcalfe will automatically void all warranties in their entirety.
