Summary of Contents for PARA Dox CR-R880-BL

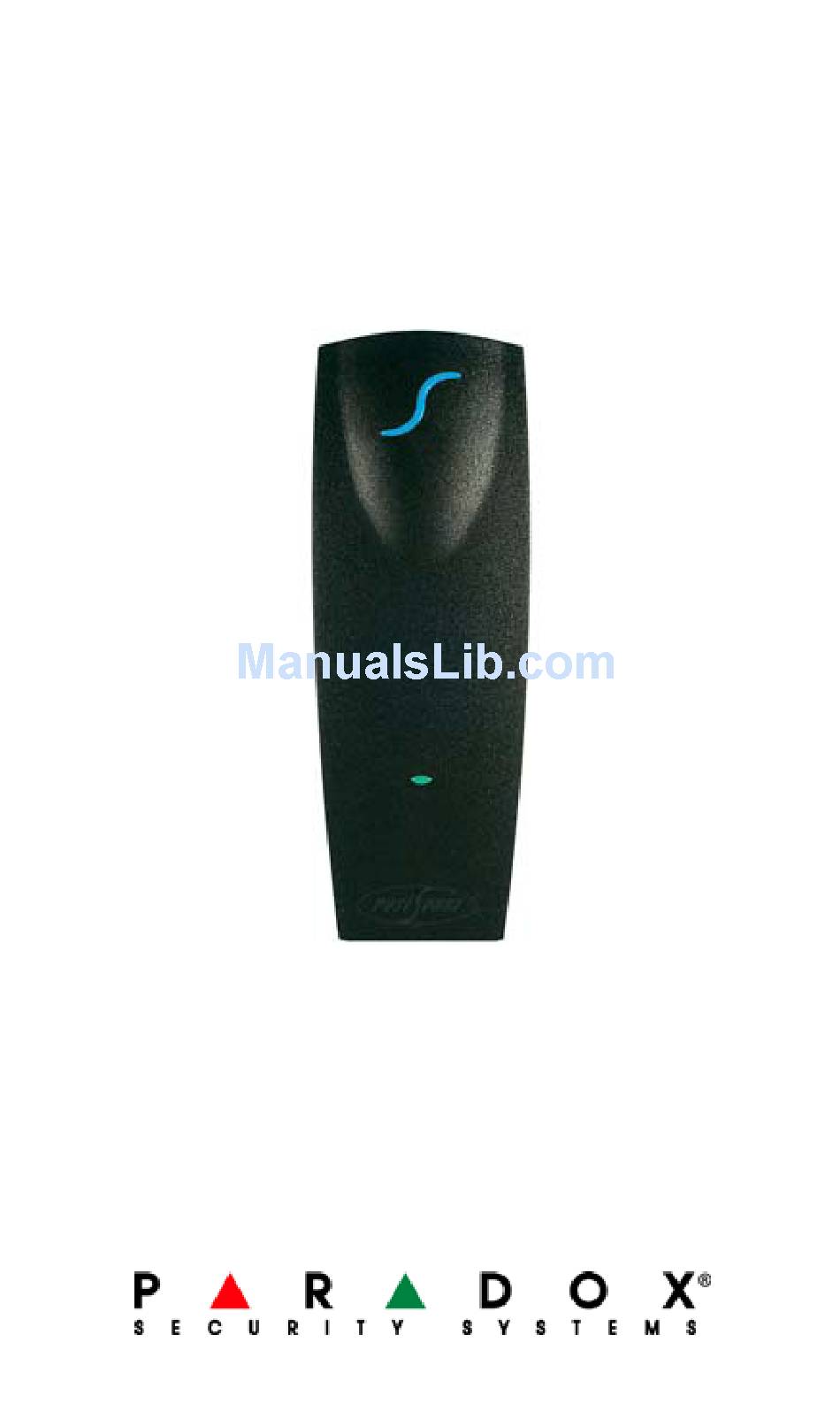

- Page 1 CR-R880-BL: Indoor/Outdoor Proximity Reader with 10cm (4in) read range Installation Manual...
-
Page 3: Table Of Contents
Table of Contents Basic Operation ..........2 CR-R880-BL Block Diagram ........2 Technical Specifications .........3 Features ............4 Tricolour LED Display ..........4 Face Light ...............4 Audible Tone ............5 Weather Resistant ..........5 SwiftRead ...............5 Diagnostic Test ............5 Installation ............5 Important Notes on Selecting an Installation Site ...5 Mounting ..............6... -
Page 4: Basic Operation
(ID) number to the Indoor/Outdoor Proximity Reader with 10cm (4in) read range (CR-R880-BL). After receiving the signal, the reader verifies the validity of the signal. If the signal is valid, it will be decoded by the reader and sent in the appropriate output format to the host controller through data cables. -
Page 5: Technical Specifications
18AWG (1.2mm Dia.), Multi- Conductor, Alpha 5386, 5388 Belden 9553 (18AWG, 6 conductor, stranded with overall shield) Led Indicator: Tricolour LED Display Face Light: Blue Audio Indicator: Beeper Colour: Black Weight: 9.8 oz. (280g) Material: UV resistant, ABS plastic CR-R880-BL 3... -
Page 6: Features
Features Tricolour LED Display The CR-R880-BL reader includes a tricolour LED display (red, green and amber) used to indicate the reader's status. When the orange wire is pulled low, the red LED will illuminate. When the yellow wire is pulled low, the green LED will illuminate. -
Page 7: Audible Tone
Audible Tone The CR-R880-BL reader includes a built in beeper that will emit a tone every time the brown wire is pulled low. Weather Resistant Mount indoors or outdoors. SwiftRead After presenting the card, regardless of the card's access status, the LED will flash to indicate that the reader has read the card and the data was sent to the controller. -
Page 8: Mounting
12) as a guide and drill two mounting holes and a 3/8" to 1" hole for the reader cable. If you wish to mount the CR-R880-BL on a gang box, a single gang box mounting plate (CR-MTPLATE) is available as an option (refer to page 13). -
Page 9: Mounting On Metal
Route the cable from the reader to the host controller. Do not wire the CR-R880-BL cables in the same conduit with AC power cables, lock power, or signal wiring. Maintain all reader wiring a minimum of 30cm (12") away from other... -
Page 10: Card Presentation Test
• The data out internal circuit configurations are as shown below. Card Presentation Test Place the card parallel to the CR-R880-BL reader and move it toward the reader until the card code displays on the controller screen. At this point, the card is read,... - Page 11 To read the card again, remove and re-insert the card into the reader's field. CR-R880-BL 9...
-
Page 12: Wiegand Output Wiring Diagram
Figure 2: Wiegand Output Wiring Diagram 10 Installation Manual... -
Page 13: Aba Output Wiring Diagram
Figure 3: ABA Output Wiring Diagram CR-R880-BL 11... -
Page 14: Dimensions
Dimensions Figure 4: Regular Mounting Plate 12 Installation Manual... -
Page 15: Gang Box Mounting Plate
Figure 5: Gang Box Mounting Plate CR-R880-BL 13... - Page 16 Warranty Paradox Security Systems Ltd. (“Seller”) warrants its products to be free from defects in materials and workmanship under normal use for a period of one year. Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded.
- Page 17 NOTES...
- Page 20 780 Industriel Blvd., Saint-Eustache (Quebec) J7R 5V3 CANADA Tel.: (450) 491-7444 Fax: (450) 491-2313 www.paradox.ca PRINTED IN CANADA - 05/2005 CR880-EI06...
