effective band specification. If you leave the default advanced parameters,
the configuration VI calculates the correct parameters for a spectrogram
with evenly distributed time and frequency resolution on a square display
area. If the display area is not square, enter an aspect ratio for the display

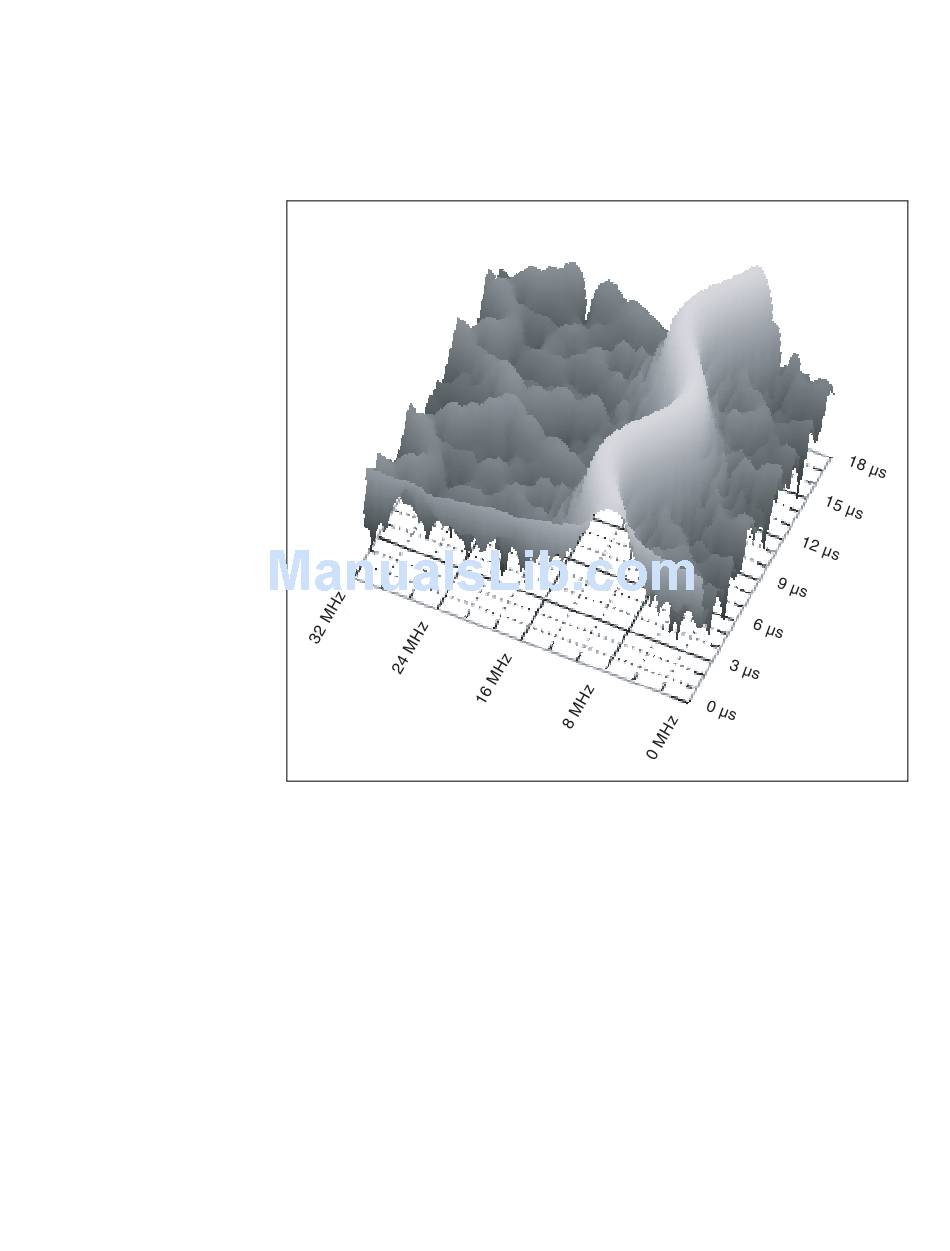

area in the aspect ratio parameter. Figure 6 shows an example of a
completed spectrogram with a center frequency of 16 MHz and a span
of 16 MHz.
Figure 6. Spectrogram Example
© National Instruments Corporation
17
NI Spectral Measurements Toolkit User Guide
