USER GUIDE
MCA-7724 M
Introduction
Features
™
National Instruments
and ni.com
trademarks or trade names of their respective companies.
322835A-01
A
OTION
The MCA-7724 Motion Axis Router reroutes the signals from your motion
controller into separate connectors that connect to different motion
accessories. The router allows you to connect one, two, three, and four axis
drives and accessories to a controller.
The MCA-7724 Motion Axis Router has five 68-pin VHDCI connectors:
the controller connector, connector A, connector B, connector C, and
connector D. Figure 1 shows the five connectors.

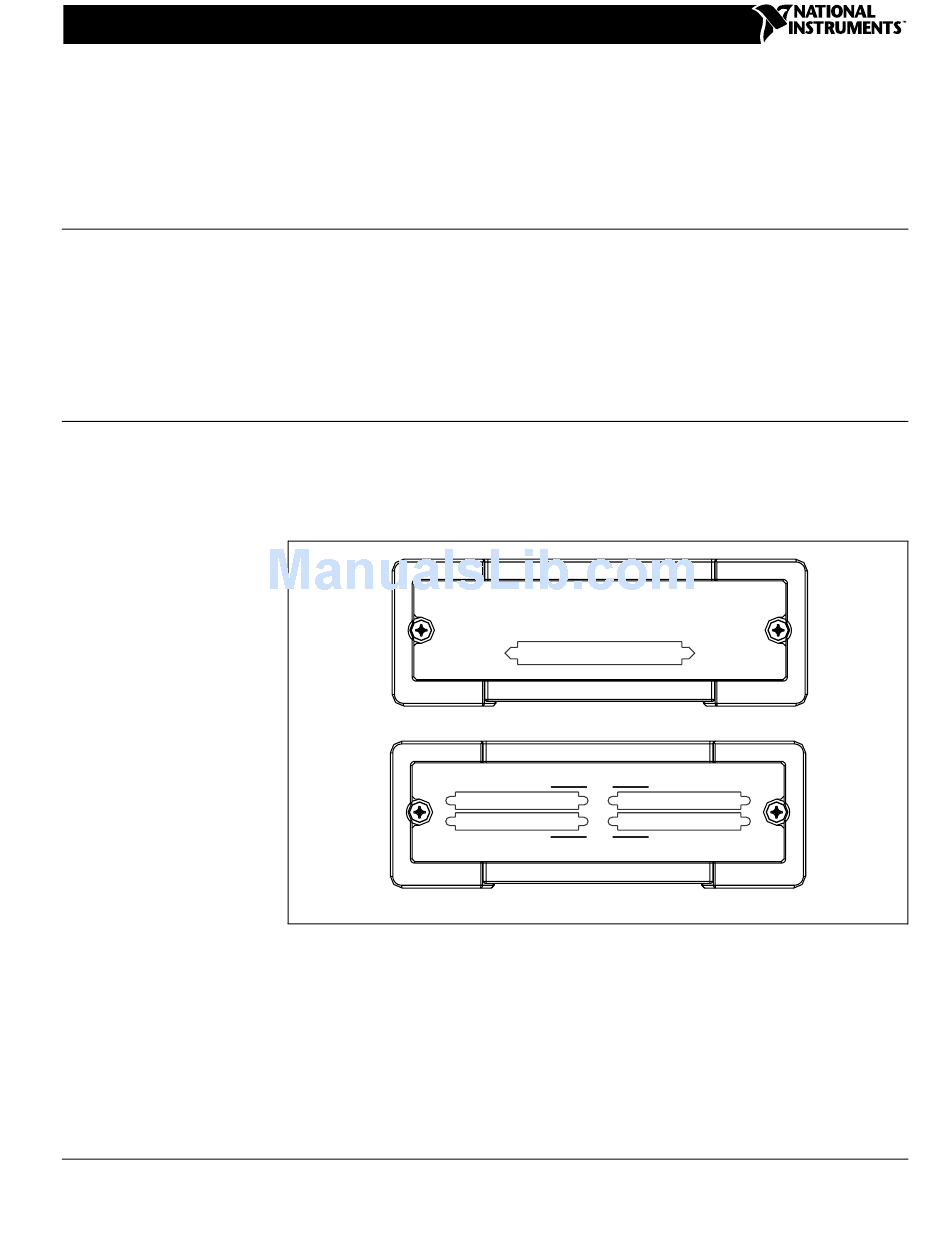

Figure 1. MCA-7724 Motion Axis Router Connectors
™
are trademarks of National Instruments Corporation. Product and company names mentioned herein are
Copyright © 2001 National Instruments Corp. All rights reserved.
R
XIS
OUTER
CONTROLLER CONNECTOR
MOTION I/O
Front
ACCESSORY CONNECTORS
<
CONNECTOR A
2 + 2
CONNECTOR C
<
3 + 1
Back
>
CONNECTOR B
>
CONNECTOR D
April 2001
