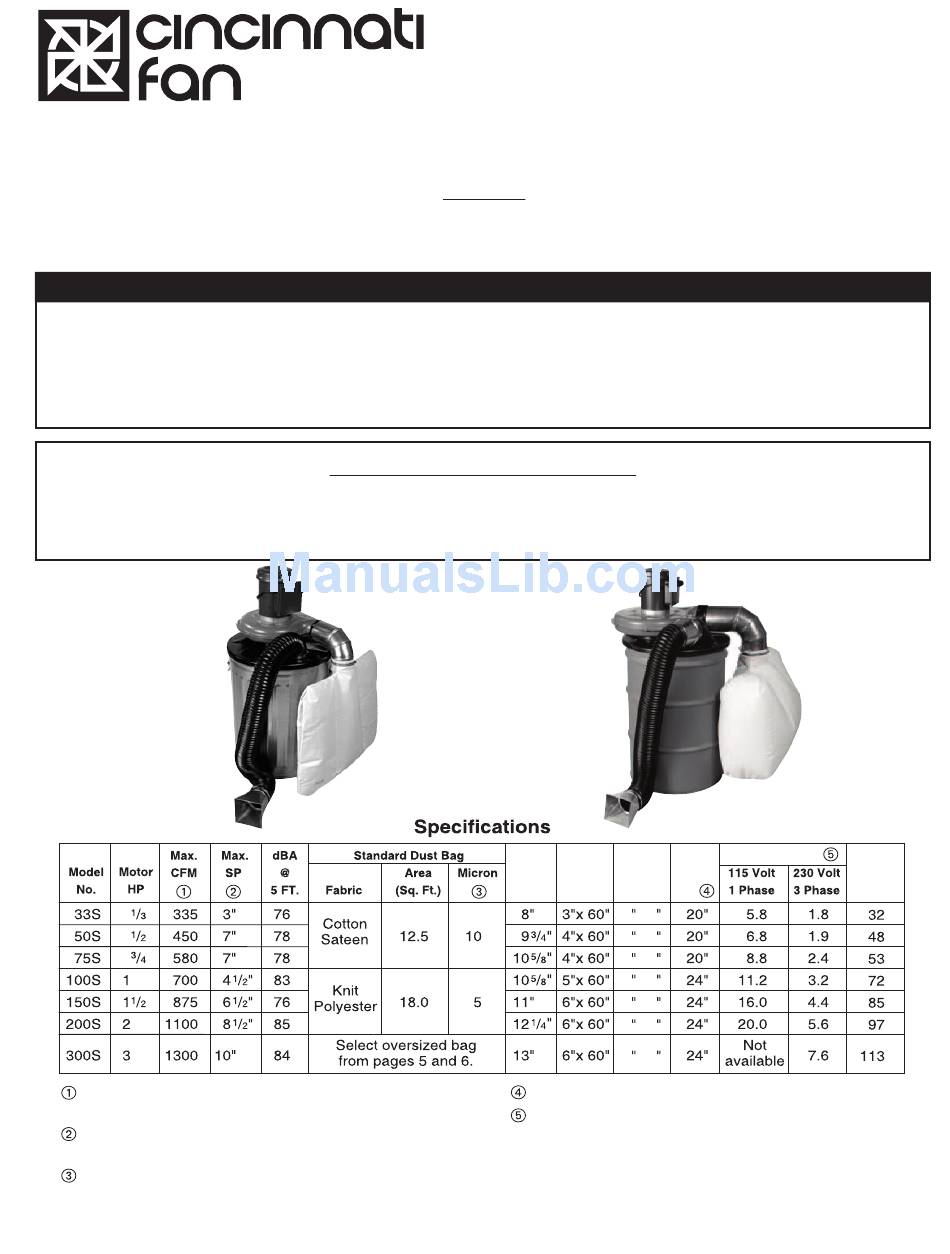

Installation, Safety, Operation & Maintenance Manual and Parts List for

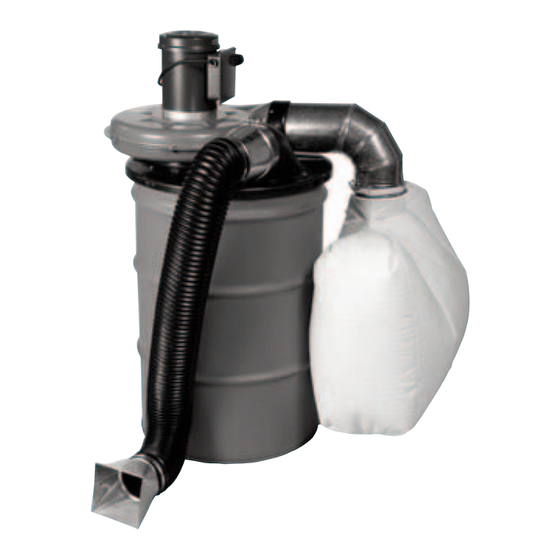

Models 33S, 50S, 75S, 100S, 150S, 200S and 300S Portable Dust Collectors
Read this complete manual before attempting to assemble,
install, operate, move, inspect or service this Dust Collector.
All Cincinnati Fan products are packaged to minimize any damage during shipment. The freight carrier is responsi-
ble for delivering all items in their original condition as received from Cincinnati Fan. The individual receiving this
equipment is responsible for inspecting this unit for any obvious or concealed damage. If any damage is found, it
should be noted on the bill of lading before the freight is accepted and the receiver must file a claim with the
freight carrier.
If this dust collector will NOT be installed and put into service within 30 days, refer to the "Long Term
Storage Instructions" on page 2. Failure to follow all applicable long term storage instructions will void
your warranty. This dust collector must be stored indoors in a clean, dry location.
Models
33S, 50S & 75S
Maximum CFM at 0" S.P. (clean drum, dust bag, with 5
feet of inlet hose and inlet nozzle).
Maximum additional static pressure (SP) at which point
there will be no air flow.
Minimum micron size at which standard dust bag will
capture 99%.
NOTICE:
ATTENTION: Receiving Department
LONG TERM STORAGE NOTICE
Cans or Drums
are not included
1
Blower
Inlet
Inlet
Max.
Wheel
Hose
Nozzle
Drum
Dia.
Size
Size
Dia.
4 x 4
5 x 5
5 x 5
6 x 6
7 x 7
7 x 7
7 x 7
See Section V. INSTALLATION, Section A on page 6.
Starting amps are approximately 6-7 times the full load
amps. High voltage amps are 1/2 of low voltage amps.
Amp loads shown are approximate and will vary with
different motors and/or brands.
All dimensions above are nominal. For complete
dimensions, see page 15.
Form: OMM-30-0811
Supersedes Form: OMM-30-709
Part No.: 01009
Models
100S, 150S & 200S
Full Load Amps
Approx.
Ship
Wt.
Advertisement
Table of Contents
Related Manuals for Cincinnati Fan 33S
Summary of Contents for Cincinnati Fan 33S
- Page 1 All Cincinnati Fan products are packaged to minimize any damage during shipment. The freight carrier is responsi- ble for delivering all items in their original condition as received from Cincinnati Fan. The individual receiving this equipment is responsible for inspecting this unit for any obvious or concealed damage. If any damage is found, it should be noted on the bill of lading before the freight is accepted and the receiver must file a claim with the freight carrier.
-
Page 2: Table Of Contents
G. Emptying the Dust Bag ..................Page 10 H. Cleaning the Dust Bag..................Page 10-11 VIII. Troubleshooting....................Page 11 IX. Exploded View Drawing & Parts List for Models 33S, 50S & 75S....Page 12 X. Exploded View Drawing & Parts List For Models 100S, 150S, 200S & 300S ............Page 13 XI. -
Page 3: Dangers, Warnings And Cautions
Always wear safety Edition” and we have determined: glasses when operating this dust collector. Cincinnati Fan Dust Collectors ARE NOT designed to collect any ”reactive metal” material. They DO NOT meet NFPA Standard 484. -
Page 4: Description
NOTE: This dust collector is not designed to be used in a system that If you are installing the standard dust bag, (Models 33S, 50S requires high static pressures. Avoid using any hose or duct and 75S) continue with Step 3 below. -
Page 5: Oversized Dust Bags
IV. ASSEMBLY (Continued) b. Slide a hose clamp (4 or 9) onto both ends of the NOTE dust bag connector hose (6 or 10). The intake cylinder/guard (#19) in Step 1b below, MUST c. Slide one end of the hose over the guard (5) on be installed. -
Page 6: Db" Type Bags
A. Proper Cans, Drums and Unit Location C-1,d on page 5. Models 33S, 50S and 75S should be mounted on top of a b. Slide a hose clamp (9) over the inlet collar in the 25-30 gallon garbage can or a 30-35 gallon drum. The side of the dust bag. -
Page 7: Exhaust Volumes Required For Different Applications
How To Select The Proper Size Dust-Master Dust Collector Although Cincinnati Fan Dust-Master dust collectors will give you 4. The Dust-Master should be located as close to the machine as possible excellent results in collecting wood chips, fine dust and metal shavings, and preferably no more than 10 feet away. -
Page 8: Duct Work Recommendations
Model 200S ..Up to 30 feet of 5” duct, and 3 machines. performed by qualified personnel or a licensed Model 300S ..Up to 75 feet of 5” duct, and 3-4 machines. electrician. Models 33S, 50S, 75S and 100S, with single NOTE: phase, TEFC motors are pre-wired at the factory with a... -
Page 9: Maintenance
VII. MAINTENANCE HIGH SPEED ROTATING EQUIPMENT CAN CAUSE HAZARDOUS VOLTAGE CAN CAUSE ELECTRICAL SHOCK AND DEATH. SEVERE PERSONAL INJURY. Always disconnect or lock out power to the motor and let There is a high speed blower wheel inside the blower the wheel come to a complete stop BEFORE attempting housing and another one inside the fan cover on top of the any inspection, service, maintenance or... -
Page 10: Replacing The Motor
No matter what you are collecting, NEVER let the bag get more than 1/4 a. All Models 33S through 200S have a 56C frame full. The major cause of having to replace dust bags is with a C-Face mounting and a 5/8”... -
Page 11: Troubleshooting
F. Any materials with cleaning instructions that are in 4. Shake bag well to dislodge any material sticking to the pores of the bag. contradiction with the following cleaning instructions. G. Any materials considered to be unsafe if they come 5. -
Page 12: Exploded View Drawing & Parts List For Models 33S, 50S & 75S
IX. Exploded View Drawing Parts List for Models 33S, 50S and 75S Fig. 1 Part numbers 5, 8, 9 and 10 must be in place at all times during operation. Standard Replacement Parts List for Models 33S, 50S and 75S... -
Page 13: Exploded View Drawing & Parts List For Models 100S, 150S, 200S & 300S
X. Exploded View Drawing Parts List for Models 100S, 150S, 200S and 300S Fig. 2 Part numbers 5, 8, 9, 10 and 19 must be in place at all times during operation. Standard Replacement Parts List for Models 100S, 150S, 200S and 300S NOTES Part Number for Model Ref. -
Page 14: Exploded View Drawing & Parts List For Oversized Dust Bags
XI. Typical Oversized Dust Bag Connection Diagrams for Model 300S OPTIONAL FOR MODELS 50S, 75S, 100S, 150S, & 200S NOTE: DUST BAG FOR MODEL 300S MUST BE ORDERED WITH THE DUST COLLECTOR Fig. 3 “HB” Type Dust Bags Parts List for #HB-24X80 and #HB-48X80 Hanging Bags For Dust Collector 100S to 300S Bag Type Ref. -
Page 15: Dimensions And Performance Curves
Model 300S dimensions are very similar to 200S dimensions except dust bag. Max. normal dimensions shown, varies with motor. Approximate dimensions with standard inflated dust bag. Dust-Master Performance Curves MODELS 33S THROUGH 300S Models 33S to 200S were tested with 10.0... -
Page 16: Limited Warranty, Liability, Responsibility And Return Policy
RETURNS: Cincinnati Fan & Ventilator Company assumes no responsibility for any material returned to our plant without our permission. An RMA (Return Material Authorization) number must be obtained and clearly shown on the outside of the carton or crate and on a packing slip.
