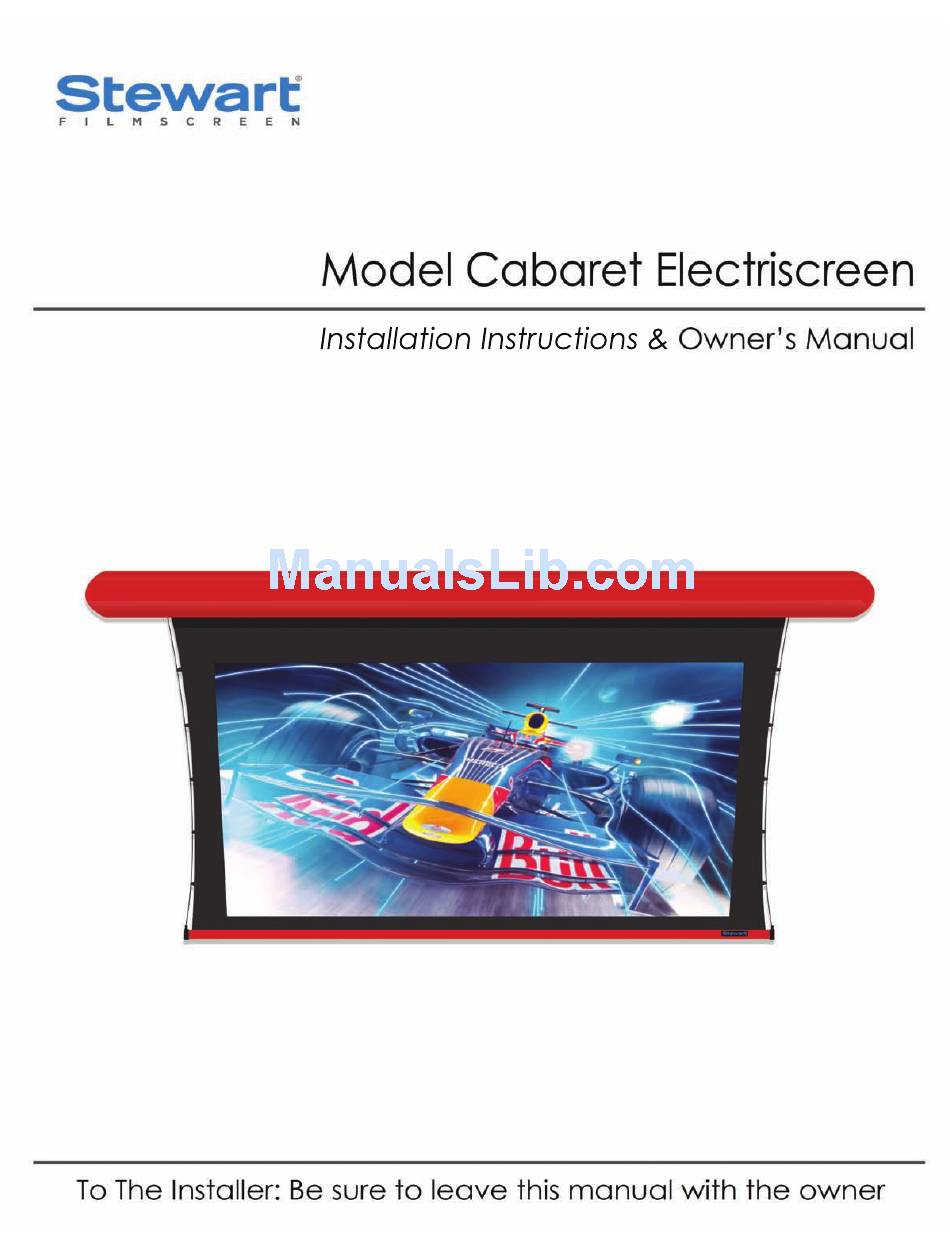

- Page 2 Contents Cabaret Unpacking Procedure Pg: 01 Product Components Check Pg: 02 Cabaret Mounting Options Pg: 03 Mounting Instructions Pg: 04 Cabaret Valance Removal Pg: 05 Offset Brackets Mounting Option Pg: 06 ( ILC ) Lighting Controls & Options Pg: 07 ( ILC ) Power, Controls, &...
-
Page 3: Installation Instructions
To insure that the product is safe inside, do not attempt to rip or pull off the straps. This will most likely damage the packing box and/or the product components. Open : Remove tape and staples. Fold the box open and look inside. Cabaret Electriscreen: Owner’s Manual... - Page 4 Installation Instructions Check: Inside the box are the main Cabaret unit, the LED light bar (OPTIONAL), the controls and the owner’s manual. Control box : The Cabaret screen and optional LED bar are supplied with independent control systems. Check your order and verify that the correct controls were sent to you.
- Page 5 Remove plastic wrap and stretch wrap from unit. Do not remove batten retainers at this time. Mounting Options: The Cabaret screen is available with either the standard mounts, close coupled slide and lock plates, or the extended mount kit, which cantilevers...
- Page 6 LED Lighting Space Masonry mount : The first hole is determined by the projected image in relationship to the mounting hole on the Cabaret unit (+/-) In between Mounts Distance (reference image 11). After finding the screw hole location, drill, mount anchor,...
- Page 7 Proceed to mount a screw in the second hole position. Reference images 14-16 for help if needed. Now with the unit in the desired location tighten both screws down to secure the Cabaret unit in place. Cabaret Electriscreen: Owner’s Manual...
- Page 8 Placing Cover : Slide plastic cover over the plate and snap it into place. Attach clip to end of wall plate with two 1/4-20 hardware provided. Align the ledger edges of the clip upward as shown. Cabaret Electriscreen: Owner’s Manual...
- Page 9 Caution: Unplug unit power if applicable before you work on wiring the IMC or ILC. Do to the fact that the Cabaret Unit has active lighting on deploy & retract, the IMC has to interface with the ILC via a RJ25 (low voltage) cable as seen in the image on the left and in the next image.
- Page 10 LED lighting : If you have a light bar, place it on top of the support brackets inside of the Cabaret unit. The leads for the LED strip should be on the audience right unless otherwise specified. Powering up the lighting :...
- Page 11 Locate controls socket on the right side of the control board. Connecting controls for STI will allow the user to deploy and retract screen base on projector output trigger. STI range is 3-15 V DC (10 ma min) Cabaret Electriscreen: Owner’s Manual...
- Page 12 Carefully align the top edge on the hooks located at the center and ends of the case. Verify that the top of the valance is flush with the top of the end caps and aligned left to right. Cabaret Electriscreen: Owner’s Manual...
- Page 13 Screen deployment : Using your screen control system, deploy the screen. Verify that the unit is in working order. ENJOY! Thank you for your purchase. Reference the manual for warranty and maintenance information. Cabaret Electriscreen: Owner’s Manual...
-
Page 17: Limited One-Year Warranty
Stewart for expenses or damages resulting from interruption in operation of equipment, or for incidental, direct, or consequential damages of any nature. In the event that there is a defect in materials or workmanship of a Cabaret product, you may contact our Customer Service Department at 1161 W Sepulveda Blvd, Torrance, California 90502-2797 (310-784-5300) Toll free (800-762-4999). - Page 18 www.stewartfilmscreen.com 1-800-762-4999 Fax (310) 326-6870 ‹...
