Appendix A

StillColor

Note

You can find color versions of the illustrations in this appendix in the online

version of this document included with your NI-IMAQ software kit.

NI-IMAQ User Manual

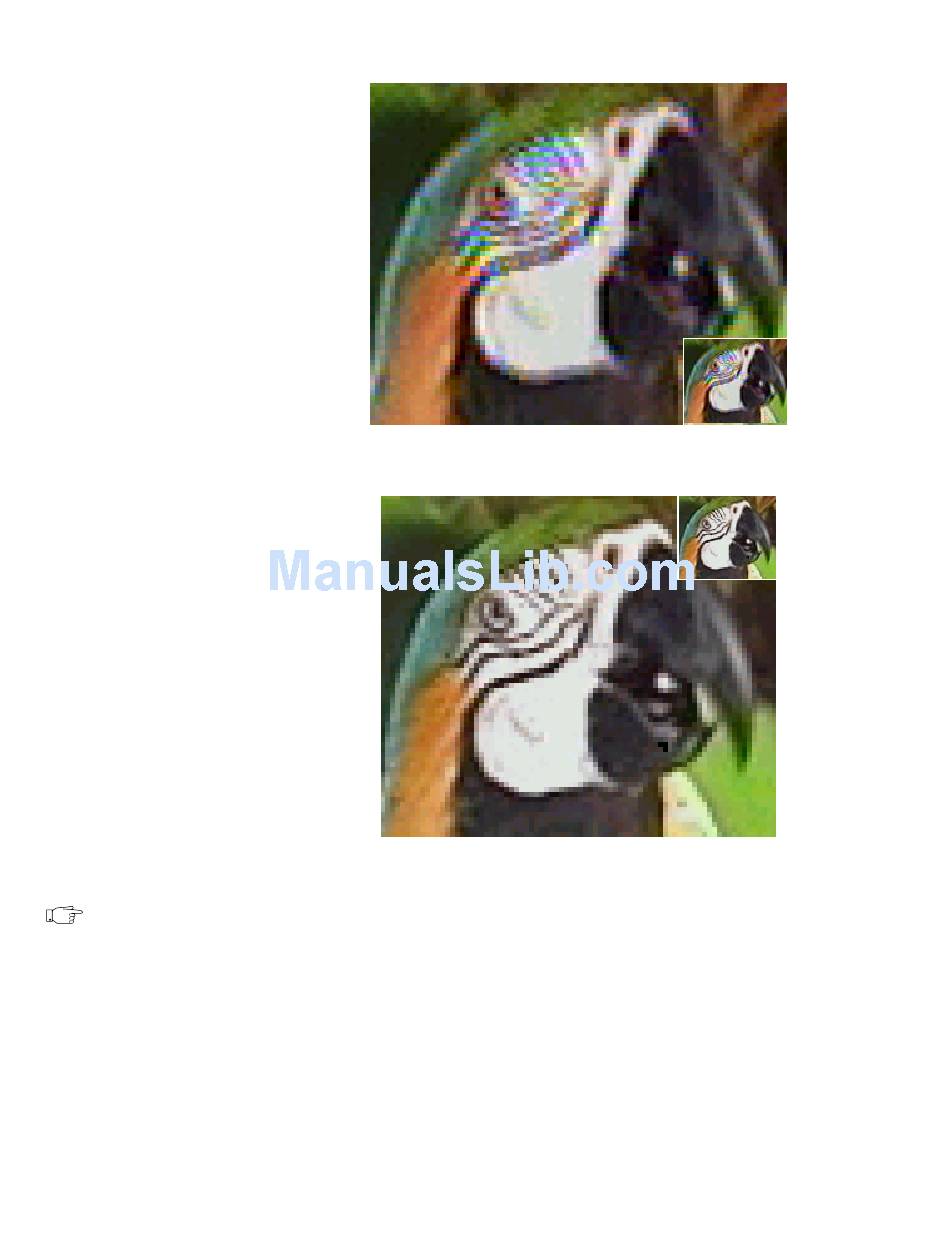

Both pictures are approximately 80 by 80 pixels in size and are acquired

using an NTSC composite video signal. Figure A-1 uses classic decoding

algorithms including bandpass/bandstop and comb filtering. Figure A-2

was acquired using the PCI/PXI-1408 and the StillColor algorithm.

Figure A-1. Classical Decoding

A-4
