SPECIFICATIONS
MODEL
DIMENSIONS
WEIGHT
ENGINE
TYPE
DISPLACEMENT
OUTPUT
CARBURATION
AIR CLEANER
STARTER
IGNITION
SPARK PLUG
FUEL TANK SIZE
FUEL MIX RATIO
FUEL MIX OIL TYPE 2 CYCLE
FUEL TYPE
IMPACT RATE
IMPACT FORCE
IMPACT SECTION
LUBRICATION
LUBRICANT TYPE
LUBRICANT VOL
LUBRICANT USE
UNIT SERIAL NUMBER
_________________________
SKIDRIL
P.O. BOX 8041
GREENSBORO, NC 27419
TEL: 800-843-3745
12
G23
3 2 " X 1 8 " X 1 3
50 LB.
SINGLE CYLINDER,
AIR COOLED, 2 CYCLE
40.2 CC
1.4PS/6000 RPM
DIAPHRAGM,
W/PRIMER AND
CHOKE
WASHABLE, SEMI-WET
RECOIL
ELECTRONIC,
NGK BPM4A
0.28 US GALLON
20-25:1
REGULAR NO LEAD
1200 BPM
60-70 FT-LB.
OIL BATH
SAE 10W-30
5 0Z
1.3 OZ /8 HOURS
SKIDRIL
Operation & PARTS
MANUAL

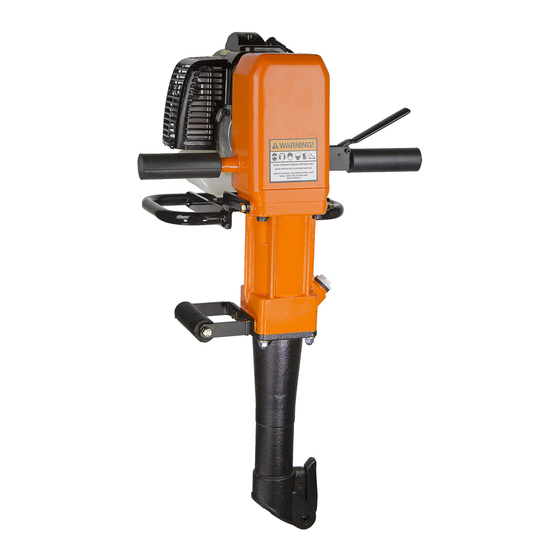

ENGINE BREAKER G23
ANY PERSON
OPERATING THIS
MACHINE SHOULD
READ AND
UNDERSTAND THIS
MANUAL FIRST!
FOLLOW ALL SAFETY
INSTRUCTIONS
1-800-843-3745
Advertisement
Table of Contents
Summary of Contents for SKIDRIL G23
- Page 1 AIR COOLED, 2 CYCLE OPERATION & PARTS DISPLACEMENT 40.2 CC MANUAL OUTPUT 1.4PS/6000 RPM CARBURATION DIAPHRAGM, W/PRIMER AND CHOKE ENGINE BREAKER G23 AIR CLEANER WASHABLE, SEMI-WET STARTER RECOIL IGNITION ELECTRONIC, SPARK PLUG NGK BPM4A FUEL TANK SIZE 0.28 US GALLON...
- Page 2 Part List Contents Part No. Name Page MA02E001A1 STAY E002A3 GUIDE E003A0 BUSHING E004A1 LINER E005A1 PISTON RING CONTROL IDENTIFICATION E006A2 HAMMER PISTON E007A0 PISTON E008A1 BUSHING E009A1 CON-ROD E010A0 SPACER E011A1 E012A1 BOLT E013A0 COLLAR OPERATION E014A0 PINION E015A1 CLUTCH SHAFT E016A1 E017A1...
- Page 3 Maintenance cont. Operation M1: Impact Oil Sight Notice: PREPARATION FOR USE NOTICE: *Do: Always fill/ check the oil level * Do not use 2 cycle 1. IMPACT LUBRICANT: with the machine in or non 10W30 type the upright position. oils. - Remove fill cap (item 12, p4).
- Page 4 Maintenance Operation continued 1. DAILY INSPECTION: D. Start the engine by: A. Look for loose or missing nuts, bolts or screws. 1. Close the choke lever item14, p4) by B. Check the starter rope for wear and pushing it upwards. replace if required.
- Page 5 Exploded View Controls Item 1. Fuel cap 2. Fuel tank 3. Spark plug 4. Muffler cover 5. Handle 6. Exhaust outlet 7. Guard handle 8. Side handle 9. Impact oil window 10. Tool latch 11. Impact oil inlet 12. Impact oil cap 13.
- Page 6 Parts List Continued SAFETY FIRST READ, UNDERSTAND AND FOLLOW SAFETY GUIDELINES AND SAFE WORK Part No. Name PRACTICES. 6001 BEARING (C-TYPE) 6204 BEARING (C-TYPE) QC-12X18 ROLLER TAKE NOTE OF WARNINGS IN THIS MANUAL TA 1520Z NEEDLE BEARING TLA1512Z NEEDLE BEARING AS THEY IDENTIFY INSTRUCTIONS INTENDED CS-12 SNAP RING...
