Following chapters of the provided h/p/cosmos operating and service manual have to be replaced by the content of this
attachement; for these chapters please consider the content of this attachement only.
Foreword, chapter 1 "model overview", chapter 11 "technical data", chapter 12 "options and accessories", chapter 17 "contact".

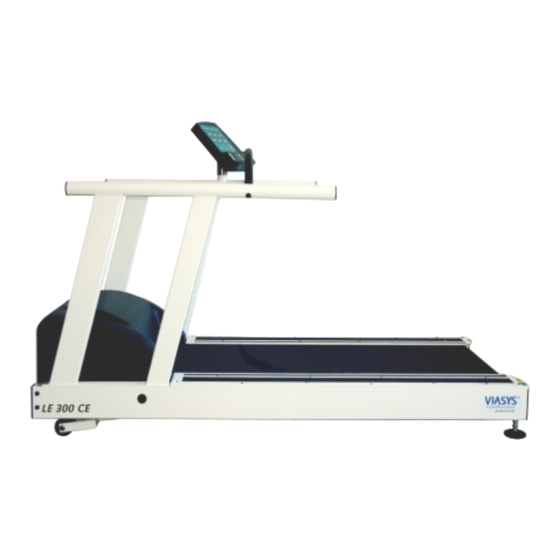

treadmill ergometer
LE100 CE
LE200 CE
LE250 CE
LE300 CE
LE500 CE
LE580 CE up to LE720 CE
manual version
MCU5-v1.07
revision 07.05.2014
order number:
[cos14310m5-v1.07car-en]
running machines
operating and service manual
sales & service
carefusion GmbH
Leibnizstrasse 7
DE 97204 Hoechberg-Wuerzburg
Germany
phone
+49 9 31 49 72 0
fax
+49 9 31 49 72 423
info@carefusion.com
www.carefusion.com
file: n:\article\cos14310m5-v1_07car-en\20140117_cos14310m5-v1.07car-en_handbuch_carefusion_laufband-ergometer_print.doc
© 2014 h/p/cosmos sports & medical gmbh
development & production
h/p/cosmos sports & medical gmbh
Am Sportplatz 8
DE 83365 Nussdorf-Traunstein
Germany
phone
fax
service@h-p-cosmos.com
www.h-p-cosmos.com
email@h-p-cosmos.com
created 17.01.2014
+49 86 69 86 42 0
+49 86 69 86 42 49
printed 07.05.2014
page: 1 of 16
Advertisement
Table of Contents
Summary of Contents for CareFusion LE100 CE
- Page 1 Foreword, chapter 1 “model overview“, chapter 11 “technical data“, chapter 12 “options and accessories”, chapter 17 “contact“. treadmill ergometer sales & service development & production LE100 CE carefusion GmbH h/p/cosmos sports & medical gmbh LE200 CE Leibnizstrasse 7...
- Page 2 file: n:\article\cos14310m5-v1_07car-en\20140117_cos14310m5-v1.07car-en_handbuch_carefusion_laufband-ergometer_print.doc © 2014 h/p/cosmos sports & medical gmbh email@h-p-cosmos.com created 17.01.2014 printed 07.05.2014 page: 2 of 16...
- Page 3 Dear customer, We would like to express our gratitude for putting your trust in us, in deciding for this top of the range running machine. Since 1988 h/p/cosmos has been developing and manufacturing running machines, systems and accessories for ® applications in sports, rehabilitation, medicine, diagnostics and science.
- Page 4 file: n:\article\cos14310m5-v1_07car-en\20140117_cos14310m5-v1.07car-en_handbuch_carefusion_laufband-ergometer_print.doc © 2014 h/p/cosmos sports & medical gmbh email@h-p-cosmos.com created 17.01.2014 printed 07.05.2014 page: 4 of 16...
-
Page 5: Model Overview
1 Model overview medical sports & fitness running machines running machines LE100 CE n.a. LE200 CE LE250 CE n.a. LE300 CE LE500 CE LE580 CE LE590 CE LE600 CE LE650 CE n.a. LE680 CE LE690 CE LE700 CE LE720 CE file: n:\article\cos14310m5-v1_07car-en\20140117_cos14310m5-v1.07car-en_handbuch_carefusion_laufband-ergometer_print.doc... -
Page 6: Technical Data
11 Technical data 11.1 Treadmill ergometer, 150/50 (LE100, LE200) LE100 CE LE200 CE LE200 CE UserTerminal no UserTerminal (no display, no keyboard), control via interface. (display & keyboard) Power supply AC U: 100 V ~ / 110 V ~ / 200 V ~ / 208 V ~ / 230 V ~... - Page 7 LE100 CE LE200 CE LE200 CE Dimension of running surface 1500 x 500 mm length x width Dimension frame 2100 x 800 x 1370 mm length x width x height (UserTerminal + 150 mm width) Track access height from floor...
- Page 8 11.2 Treadmill ergometer, 170/65 (LE250, LE300, LE500) LE250 CE LE300 CE LE500 CE LE300 CE UserTerminal 6 LCD displays / 6 keys / display of mode and unit with LED. (display & keyboard) Power supply AC U: 100 V ~ / 110 V ~ / 200 V ~ / 208 V ~ / 230 V ~ (standard, read nameplate), including N and PE dedicated line required.
- Page 9 LE250 CE LE300 CE LE500 CE LE300 CE Dimension of running surface 1700 x 650 mm length x width Dimension frame 2300 x 1050 x 1410 mm length x width x height (UserTerminal + 150 mm width) Track access height from floor 230 mm Weight of device 330 kg...
- Page 10 11.4 Treadmill ergometer, 200/75 up to 300/125 (LE580 up to LE720) LE650 CE UserTerminal External control unit with TouchScreen (display & keyboard) Power supply AC 200 V 3N~ / 208 V 3N~ / 400 V 3N~ (standard, read nameplate), with N and PE dedicated line required.
- Page 11 LE650 CE Dimension of running surface 2000 x 750 2000 x 1000 2500 x 750 2500 x 1000 2500 x 1250 3000 x 750 3000 x 1000 3000 x 1250 length x width Dimension frame 2400 x 1150 2400 x 1400 2900 x 1150 2900 x 1400 2900 x 1650...
-
Page 12: Accessories And Options
12 Accessories and options This chapter describes the accessories and options available at CareFusion. Only connect and/or use accessories, software and host equipment if it is approved as compatible by all manufacturers. Non-compliance with this clause can lead to serious injury or death. Furthermore, manufacturer warranty and liability expires. - Page 13 special running belt (extra charge) order number other special running belts on request Running belt saturn 300/100 rs ski sticks / spikes cos00097010041 Special re-inforced running belt for use with metal tipped ski sticks and/or spiked shoes; also applicable for running, cycling and wheelchair Running belt saturn 300/125 rs ski sticks / spikes cos12473 (wheelchair stabilizer extra accessory!)
- Page 14 Wheelchair ramp L: 1.25 m for treadmill cos101057va01 wheelchair ramp (L: 125 cm x W: 105 cm) for models with running surface 170&190/65 170&190/65 cm Wheelchair ramp L: 3.0 m for treadmill xx/75 cos101061 wheelchair ramp (L: 300 cm x W: i:66 / o:82 cm) with additional ramp for oversize treadmills with belt W: 75 cm Wheelchair ramp L: 3.0 m for treadmill xx/100 cos101060...
-
Page 15: Sales Department
In case of any further questions about delivery dates, service or maintenance, orders for consumables etc., please contact the corresponding phone, fax or email for qualified help. Sales & service carefusion GmbH Leibnizstrasse 7 DE 97204 Hoechberg-Wuerzburg Germany... - Page 16 file: n:\article\cos14310m5-v1_07car-en\20140117_cos14310m5-v1.07car-en_handbuch_carefusion_laufband-ergometer_print.doc © 2014 h/p/cosmos sports & medical gmbh email@h-p-cosmos.com created 17.01.2014 printed 07.05.2014 page: 16 of 16...
