Temperature/Humidity Data Logger DR-20 series
※Regarding the operation of software and USB Docking station, please refer to
DFC-201U Software Operation Manual.
A. Standard Equipment
Unpack and inspect the contents of the container. Please check all the items listed below
are included in the carton.
● DR-20 series Data Logger
● Instruction Manual
Please note that, DFC-201U (Optional) is a necessary accessory for DR-20 series to
setting the relative functions in PC.
DFC-201U Kit includes the following accessories:
● DFC-201U USB Docking station
● DR-USB-S USB Flash driver for software
● DR-USB-W USB computer interface cable
● DR-1.05M Software Ver.1.05 and User's manual
B. Initial status of
The brand new DR-20D / DR-22D can't function until user connects it to PC and set the
related setting. Please press
to confirm the logger can work well.
※ Press
button one time to observe the LCD content, it will display for 3 seconds.
※ Press

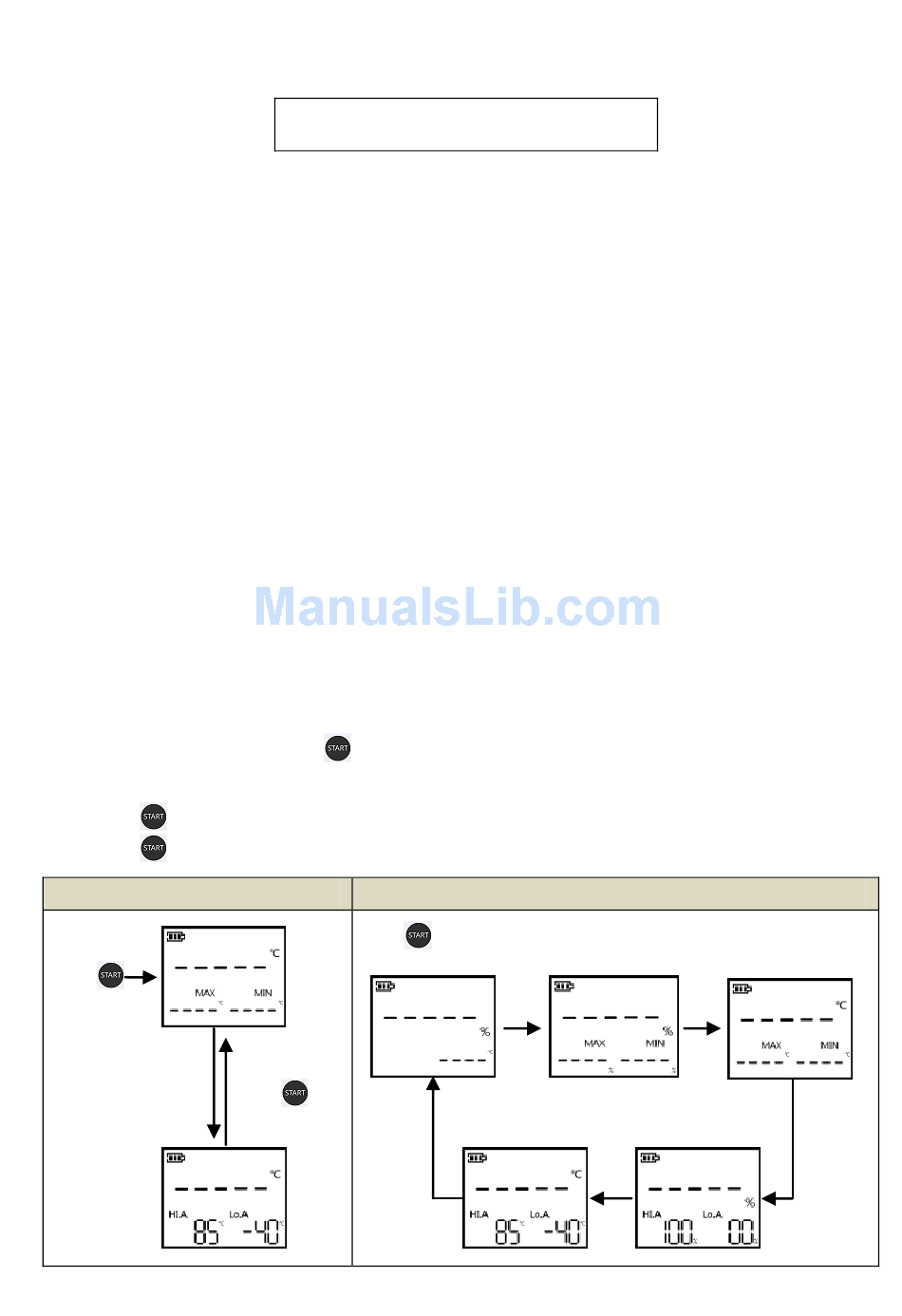

button continually to scroll through the content as the following flowchart.
DR-20D
Press
Instruction Manual
DR-20D/DR-22D
button which is in the lower left corner of the data logger
Press
Press
DR-22D
button continually
1
