Summary of Contents for impact CS-16

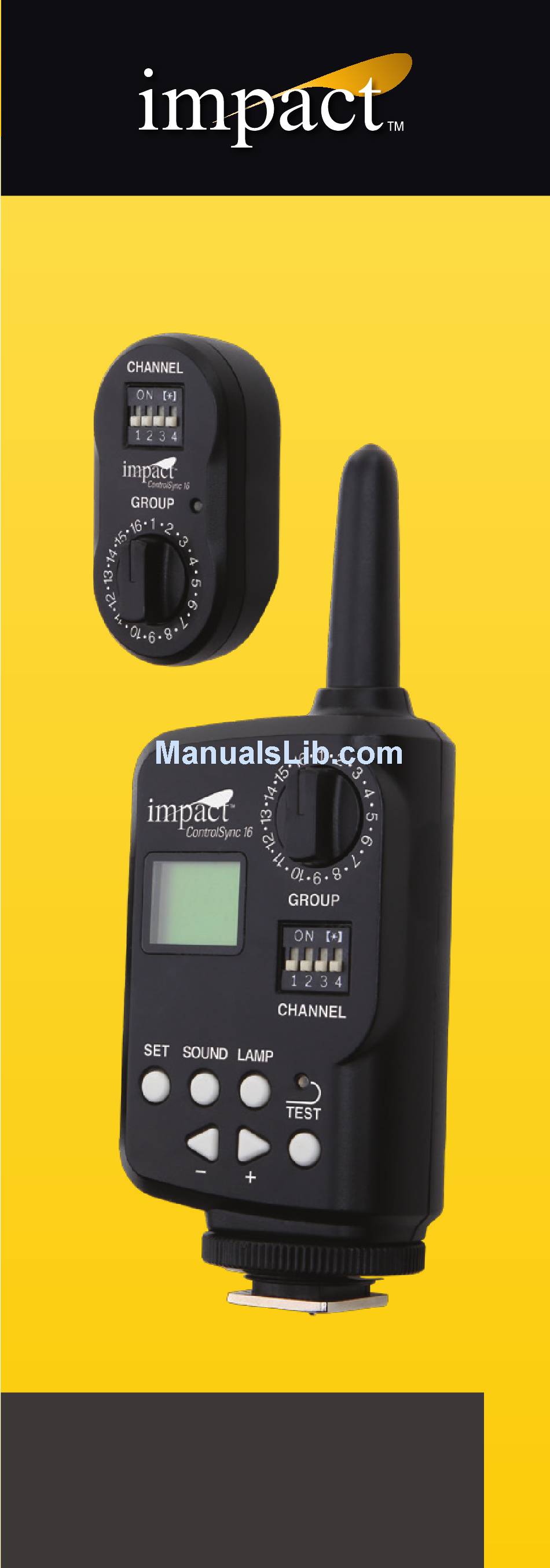

- Page 1 CS-16 ControlSync 16 System INSTRUCTIONS...
- Page 2 Introduction The Impact ControlSync 16 system allows you to control all compatible monolights and strobes from one convenient location with a reliable, easy-to-use controller. The ControlSync 16 is a great solution to speed up and simplify your work ow. Whether you work with a few ashes in a...
- Page 3 Warnings Before using this product, please read the following safety instructions carefully in order to ensure your safety and the proper operation of the Control Sync 16 system. Failure to observe these precautions could result in product malfunction, re or explosion, electric shock or other physical injury.
- Page 4 • Keep away from strong magnetic elds. Strong static or magnetic elds produced by devices such as cell phones and radios may lead to malfunction. • Observe precautions when handling batteries. Batteries may leak or explode if improperly handled. Please observe the following precautions when using batteries with this product.
- Page 5 Features...
- Page 6 • 16 channels • Up to 16 groups • 433 MHz • Effective range 150’ (50 m) • Raise or lower ash power • Model or AF Assist light On/Off • Audio alert On/Off • Test ash (triggers all groups) NOTE: All ashes that you wish to control from the ControlSync 16 must be equipped with a ControlSync 16 Receiver.
- Page 7 Using the ControlSync 16 Installing Batteries in Transmitter 1. Remove battery cover from unit. 2. Insert two AA batteries, being sure to follow illustrations inside unit to properly position the positive (+) and negative (–) terminals. 3. Replace battery cover. Attaching the ControlSync 16 Transmitter to Your Camera: Rotate the locking wheel counterclockwise on the ControlSync 16...
- Page 8 channel. Use the DIP switches on the front panel of the transmitter and receiver to select the desired channel as shown on the DIP switch con guration chart. In order for the transmitter and receiver to communicate with each other, both have to be set to the same channel.
- Page 9 Using the ControlSync 16 Note: The transmitter’s display can be switched from showing power output in decimals (generally used for monolights) to fractions (typically used for ashes). To change this setting, press and hold the Set button until the display switches. When the display is set to decimals, the power adjustments will be in 1/10th-stop increments.
-
Page 10: Troubleshooting
Troubleshooting 1. Unable to trigger a ash by pressing the Test button or the camera’s shutter release: • Make sure the batteries are installed properly and the transmitter is powered on. • Check the DIP switches to see that the transmitter and receiver are set to the same channel. -
Page 11: Speci Cations
Speci cations Transmitter 2 AA batteries Power: USB 5V Receiver power 433 MHz Transmitter frequency Approx. 150’ (50 m) Effective range Raise and Lower Controls Flash Power (for each group) Model Light/AF Assist On/Off Audio Alert On/Off Control (for all Test Fire groups) 1/250th sec. - Page 12 DIP Switch Con gurations Channel 1 Channel 2 1 2 3 4 1 2 3 4 Channel 3 Channel 4 1 2 3 4 1 2 3 4 Channel 5 Channel 6 1 2 3 4 1 2 3 4 Channel 7 Channel 8 1 2 3 4...
-
Page 13: Warranty
Warranty Limited Warranty This IMPACT product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. - Page 14 Impact along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense. For more information, or to arrange service, visit www.impactstudiolighting.com or call Customer Service at 212-594-2353.
