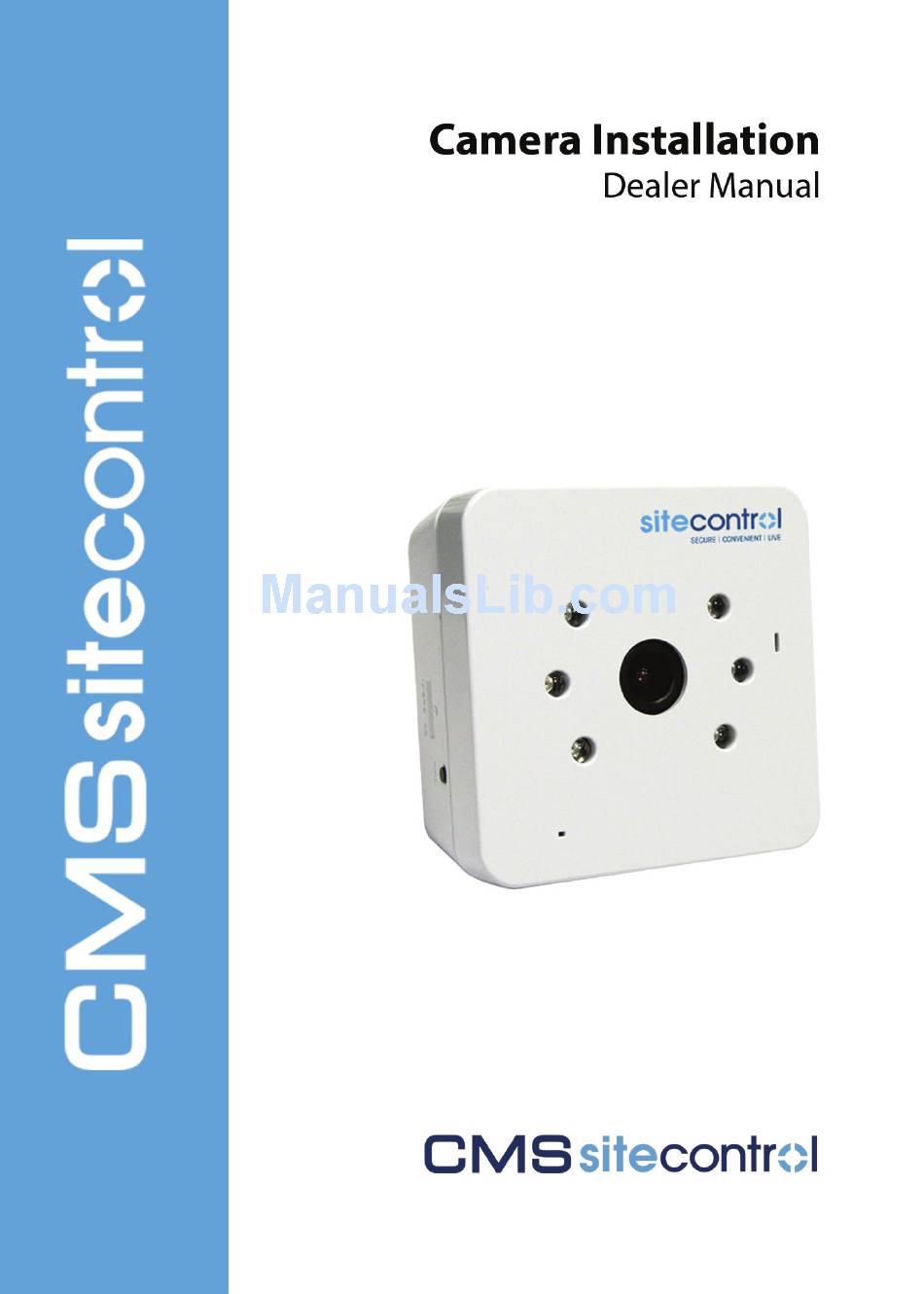

Summary of Contents for CMS re024
-
Page 2: Table Of Contents
Camera Installation Dealer Manual Table of Contents Camera Anatomy pg 1 ........................ Package Contents pg 2 ......................Camera Assembly pg 3 ......................Account Login pg 5 ........................Adding a New Camera pg 6 ....................Wireless Configuration pg 9 ....................WPS Enabled Routers pg 13 .................... -
Page 3: Camera Anatomy
Camera Installation Dealer Manual Camera Anatomy Please Note: These infrared cameras are designed for INDOOR USE ONLY! LED Colors: RED: Power Up LIGHT GREEN: Network Connection FLASHING GREEN: Network Connectivity SOLID BLUE: Privacy Mode FLASHING BLUE: WPS Discovery Mode Infrared Sensors WPS (Wi-Fi Protected Setup) Button: If held for more than 3 seconds your camera will go into discovery (Flashing Blue LED) mode for pairing... -
Page 4: Account Login
Camera Installation Dealer Manual Account Login The User Website: www.scl365.com To log into website: 1. Enter your Username 2. Enter your Password 3. Click Login Once logged in, you will see the Home screen........................................ -
Page 5: Adding A New Camera
Camera Installation Dealer Manual Adding a New Camera To add a new camera, first click on the Accounts tab, then locate the Account you would like to add the camera to. You can scroll through the list of accounts or use the search box and search by account number or name. - Page 6 Camera Installation Dealer Manual Adding a New Camera In order to properly complete the camera configuration, you will need to login through the End User portal as the End User, and click on the Camera Settings tab. If your browser is configured properly, you will see live video and you can continue to the next page.
- Page 7 Camera Installation Dealer Manual Adding a New Camera Set your camera to record automatically when a particular alarm sensor is triggered. Click SAVE when done..................................Congratulations! You have successfully set up your camera with a wired internet connection. If you wish to set up your camera for Wi-Fi communication, DO NOT DISCONNECT the Ethernet cable from your camera, and then continue to the next page.
-
Page 8: Wireless Configuration
Camera Installation Dealer Manual Wireless Configuration YOUR CAMERA HAS THE ABILITY TO COMMUNICATE WITH YOUR WIRELESS ROUTER WITHOUT AN ETHERNET CABLE. Depending on the type of wireless router you have, you may be able to do this with a one touch feature known as WPS. - Page 9 Camera Installation Dealer Manual Wireless Configuration NOTE: Hardwired Camera Installation must be completed before proceeding to the wireless configuration. Now that your camera is added, you can configure it for wireless communication. Navigate to the Camera Settings tab to view available cameras. Click the EDIT icon or the camera NAME/LOCATION.
- Page 10 Camera Installation Dealer Manual Wireless Configuration After clicking Search for Networks, all available networks within range will be shown. If your network is not listed, check to make sure your Wireless Network SSID is being broadcast and click Search for Networks again. If it is still not available contact customer support for further assistance.
- Page 11 Camera Installation Dealer Manual Wireless Configuration Testing Wireless Settings Once the UPDATE is complete you will get a confirmation message. Now it’s time to test your wireless network settings. Disconnect the power and Ethernet cable from your camera. Wait about 15 seconds for the camera to power down fully.
-
Page 12: Wps Enabled Routers
If your router is WPS Enabled follow the directions for pairing WPS Enabled Devices. This step will save the wireless information to the camera but will not add it to your CMS SiteControl Interactive account. Refer to your router ’s owner ’s manual for direction on how to place in discovery mode. -
Page 13: Technical Support
Technical Support 1-800-522-5124 press the option for technical support...
