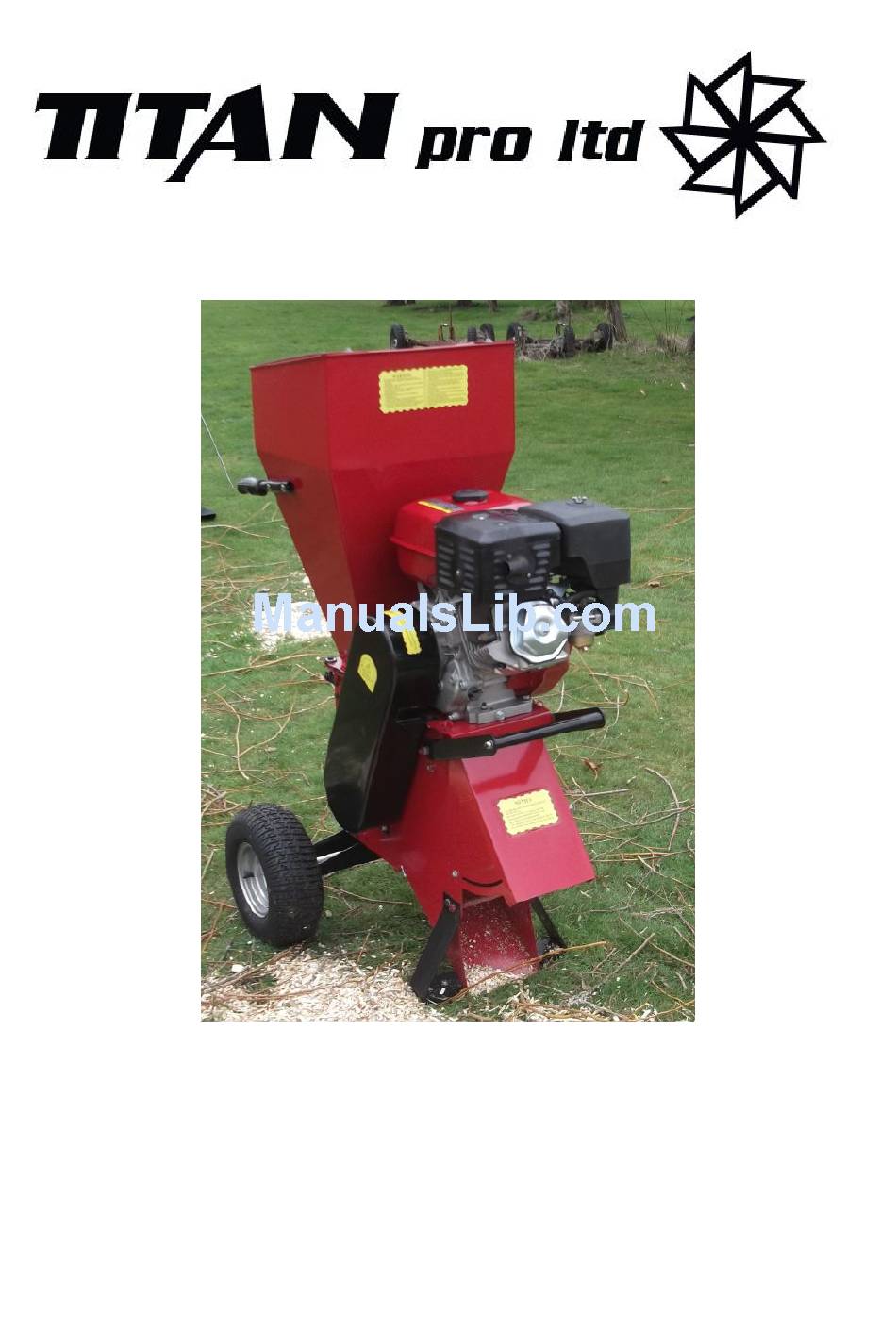

- Page 1 THE TITAN PRO 15 HP PETROL CHIPPER/SHREDDER/MULCHER OPERATORS MANUAL AND PARTS LIST Spares & Support: 0845 6800 962 Important: Please fully read and understand this manual before using this machine paying particular attention to the safety instructions.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS & WARNING LABELS ASSEMBLY FUEL & OIL OPERATION MAINTENANCE & STORAGE EASY START UP GUIDE SPECIFICATIONS PARTS DIAGRAM & LIST EC DECLARATION OF CONFORMITY... -
Page 3: Safety Instructions & Warning
SAFETY INSTRUCTIONS Read and understand this owner’s manual and labels that are affixed to the chipper /shredder. Learn the chippers applications and limitations as well as the specific potential hazards. Please retain these instructions for future reference. Use sturdy footwear also eye and ear protection, wear heavy duty gloves. -
Page 4: Labels
Make sure your work area is clear and the machine is on level ground before starting the machine; do not operate in an enclosed area. Ensure that the plastic protection cover on the top hopper is intact and closed when the chipper shredder is running to avoid any debris coming out. -
Page 5: Assembly
ASSEMBLEY Unpack and check contents. Remove all the items from the box. Some items are stored in the hopper for ease of Transport. Be sure to remove all loose parts from Hopper, by removing M8 Flange bolts and lifting hopper lid. Photo1&2 Make sure Hopper is empty before securing lid on hopper Assembly should be carried out on a clean, level surface with a helper. - Page 6 Figure 2 Remove the nuts from bolts 1, 2, Remove the bolts and pipe spacer. Pull Down chute from the TRANSPORT position to the correct operational position. Attach front foot 5, to the side plate of the cutting chamber and align the mounting holes with holes 1, 2.
- Page 7 3. Fitting of Outer Discharge Safety Grill Safety Grill 3.1. Fit hooks over top bar inside chute. 3.2. Attach side brackets to the bolts on sides and tighten bolts. 3.3. Place support rod through holes and slide pipe spacer over & tighten nuts.
- Page 8 Correct fitting of bottom discharge chute (outer grid not yet installed) Incorrect fitting of Bottom Discharge Chute 4. Attach axle bracket/axle and tyres. See picture 3. Picture 3 4.1. Put the rear axle bracket in place and align the mounting holes. 4.2.
- Page 9 5. Attaching the side chipper tube to the cutting chamber. Figure 4 5.1. Remove protective cover plate. Put the chipper tube in place on the side of the machine. Align the three mounting holes in the flange. 5.2. Secure the flange with M8 washers and nuts. Make sure the chipper tube is in the correct position before tightening up the nuts.
-
Page 10: Fuel & Oil
FUEL & OIL 1. Add unleaded fuel to engine. 1.1. There is no oil in the new engine. 1.2. Unscrew the black cover and pull the dipstick out. Use quality oil with a rating of 15W-40. Fill to the top of the threads. There is a low oil cut out in the sump of this machine, IT WILL NOT START IF THE OIL IS 1.3. -
Page 11: Maintenance & Storage
5. If the machine becomes clogged, immediately turn off the engine before clearing the debris. Keep the engine clear of debris and other accumulations to prevent damage to engine or possible fire. 6. Never rest items on the cover of hopper in case they may fall into the machine. 7. - Page 12 6. When feeding branches, be certain that thicker branches are pushed slower than thin ones. A technique and understanding of the feed rate will be acquired to successfully shred very quickly. 7. Do not allow any accumulation of processed material to build up under discharge of the shredder-chipper as this can result in clogging.
- Page 13 3. Remove the 3 Allen machine screws on the blade by using a Allen key in the front and rotating the lock nut on the back with a ring spanner 4. Sharpen the blade. If the blade is damaged by metal or stone or other hard objects please sharpen ...
-
Page 14: Easy Start Up Guide
Easy Start up Guide Important pre starting note Before starting it is essential that you make sure the Top hopper & Side chipping chute is clear of all produce, make sure the drum rotates freely without obstruction 1. Check Oil is filled right up to top of threads on filler hole, engine will not start if the oil is not at this level as there is a low oil level cut out in the sump. - Page 15 4. Adjust Choke to far left position. 5. Turn the switch to the ON position. 6. Using the Pull Start, pull the pull cord strongly to its full extent.
- Page 16 7. Once started turn choke to Right-hand side (OFF) position to allow engine to run smoothly. 8. To Stop Engine turn switch to OFF position. Important User Information After each use ensure that the cutting chamber and the top and side chutes are completely clear of produce, continue to run the chipper until produce is expelled...
-
Page 17: Specifications
Carton Size 780*460*1180(mm) All photographs are the copyright of Titan Pro Ltd and all graphic design on this Manual are the copyright of Titan Pro Ltd. The copyright in all content included in this manual such as photographs, illustrations, text, is owned by either us or our content providers. -
Page 18: Parts Diagram & List
PARTS DIAGRAM... -
Page 19: Parts List
PARTS LIST Description Description Rubber Foot Plate Front Support Blade Flywheel Flat Washer many Hex Nut Rear Board many Lock Washer Engine Seat many Hex Bolt Discharge Chute Rubber Gasket Movable Door Hopper Tube Handle Grip Screen Hook Safety Grid Hex Bolt many Hitch Pin... -
Page 20: Ec Declaration Of Conformity
V of the Directive 2000/14/EC. Measured Sound Pressure level: 108.4db(A) Guaranteed Sound Power level: 110db(A) Standards and technical specifications referred to: EN13683:2003+A2:2011 Authorised Signature Date: 30/09/2012 Name/Title: Mr Charlie Abbott – Sales Director Titan Pro ltd ,Discovery Court 551-553 Wallisdown Road Poole BH12 5A...
