900
SITdefault
Saab 9-3 CV M04-
Antenna
Accessories Part No.
12 833 679
MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS
MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE
Group
9:39-11
SCdefault
Installation instructions
Date
Instruction Part No.
Jun 03
12 833 680
Saab 9-3 CV M04-
Replaces
F930A250
Advertisement
Summary of Contents for Saab 12 833 679

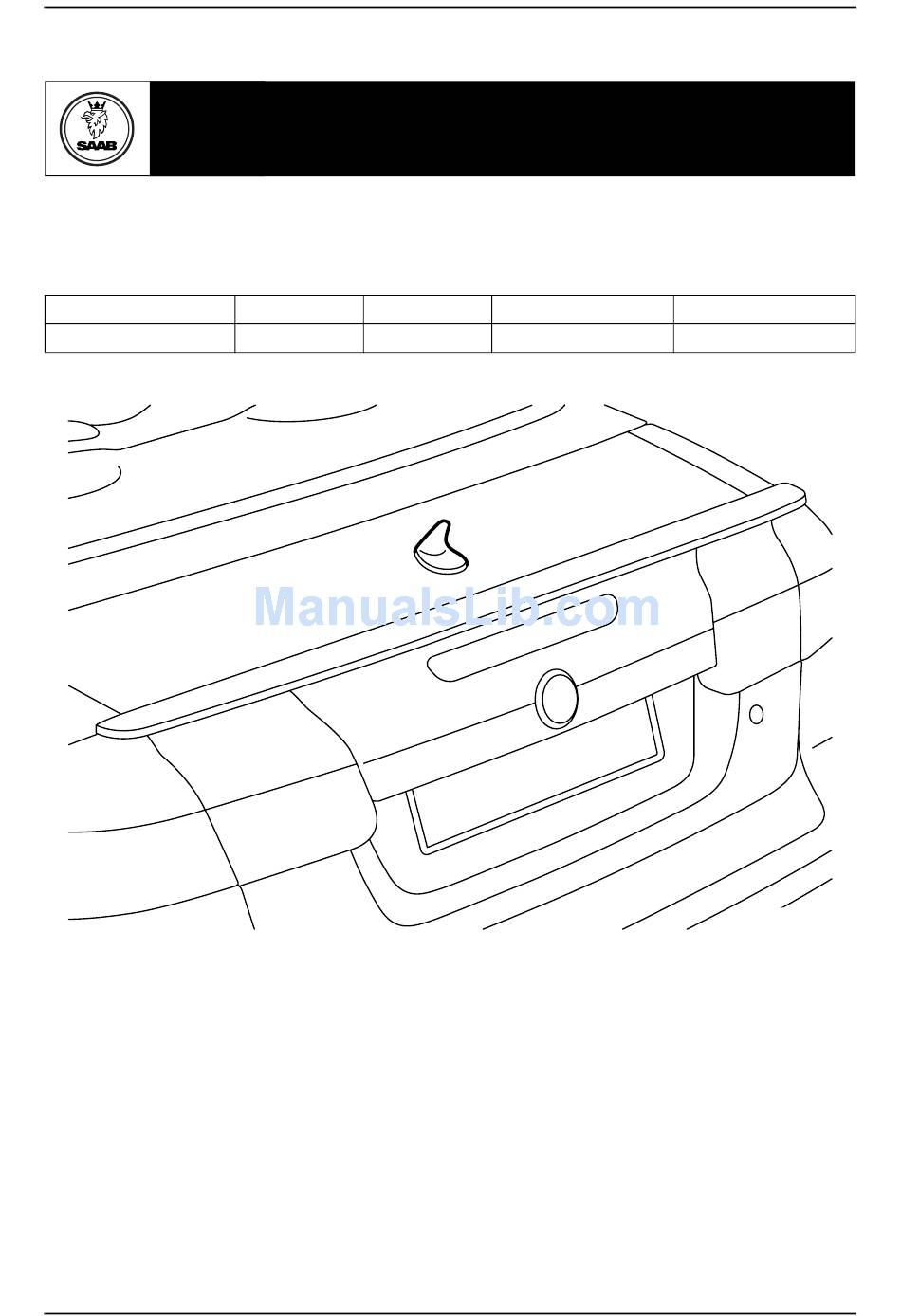

- Page 1 Installation instructions SCdefault MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE SITdefault Saab 9-3 CV M04- Antenna Accessories Part No. Group Date Instruction Part No. Replaces 12 833 679 9:39-11 Jun 03 12 833 680 F930A250 Saab 9-3 CV M04-...
- Page 2 2 12 833 680 F930A251 1 Antenna 2 Antenna cable 3 Nut 4 Cable tie (x3) 5 Template Saab 9-3 CV M04-...
- Page 3 4 Remove the side scuff plate on the right-hand side. 5 Remove the clips for the right-hand side trim and fold the trim aside. Unhook the strap on the rear side of the side trim and remove the side trim. Saab 9-3 CV M04-...
- Page 4 7 Remove the closing handle on the inside of the boot lid, the two-stage rivets and the boot lid trim. US: Remove the screw for the emergency open- ing mechanism and move the mechanism aside. 8 Close the boot lid. Saab 9-3 CV M04-...
- Page 5 Do not press the drill against the boot lid when drilling. First drill using a 2 mm bit, then using a 5 mm bit and finally using a 14 mm bit. 14 Remove the template and all pieces of tape. Saab 9-3 CV M04-...
- Page 6 Note The base of the interior rear-view mirror can be used as an alignment guide. 18 Fit the antenna. Tightening torque 2 Nm (1.5 lbf ft) Saab 9-3 CV M04-...
- Page 7 – Guide the antenna cable into the torsion com- partment and forward to the centre of the torsion compartment. – Secure the antenna cable to the existing wiring harness. Saab 9-3 CV M04-...
- Page 8 20 Align the right-hand side trim and hook on the strap. Fit the clips. 21 Fit the side scuff plate. 22 Fit the front section of the luggage compartment trim and the scuff plate. Fit the carpet on the luggage compartment floor. Saab 9-3 CV M04-...
- Page 9 23 US: Fit the emergency opening mechanism. 24 Fit the trim on the inside of the boot lid, fit the two-stage rivets and fit the closing handle. 25 US: Fit the emergency opening handle. 26 Close the boot lid. Saab 9-3 CV M04-...
