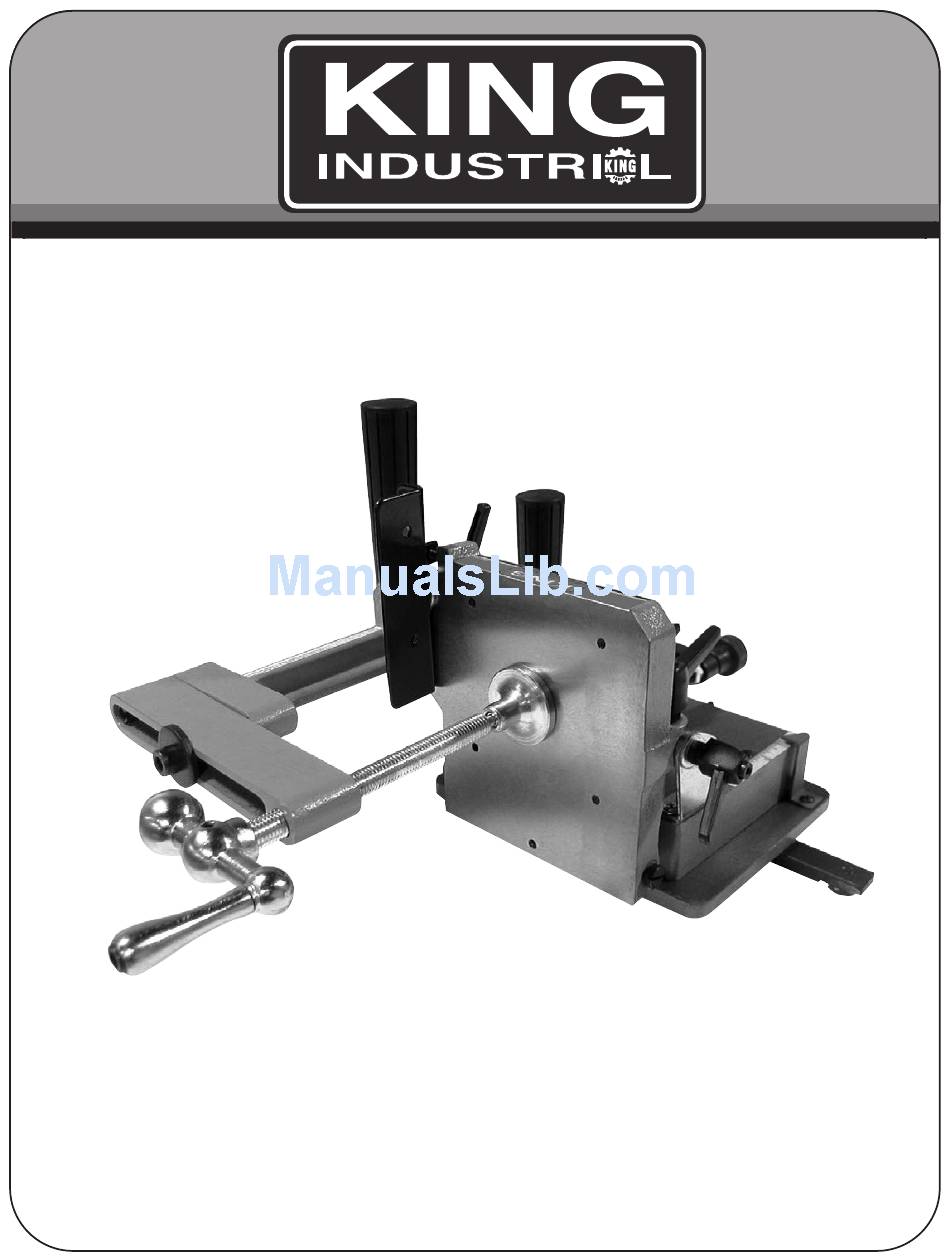

Page 1: Instruction Manual
TENONING JIG 03/2014 INSTRUCTION MANUAL MODEL: K-1500 COPYRIGHT © 2013 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC. -
Page 2: Warranty Information
WARRANTY INFORMATION 2-YEAR LIMITED WARRANTY FOR THIS TENONING JIG PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS 1. KNOW YOUR TOOL eyeglasses only have impact resistant lenses, thet are NOT safety glasses. Also use a face or dust mask if cutting opera- Read and understand the owners manual and labels affixed to tion is dusty. the tool. - Page 4 ASSEMBLY 1) Fasten clamp arm (A) Fig.2 to the back of the work support plate using the M10 x 25mm cap screw (B), M10 x 20mm cap screw (C) and lock washers as shown. FIGURE 2 2) Fasten clamp assembly (A) Fig.3 to the clamp arm (B) using the M8 x 50mm cap screw (C) and flat washer (D), as shown.
- Page 5 ASSEMBLY 7) Lift jig assembly (A) Fig.7 from the base (B). Loosen and remove the two button head screws and washers (C) from the base. FIGURE 7 8) Slide base (A) Fig.8 forward until the two holes (B) are aligned with the holes in the guide bar (C).
- Page 6 ADJUSTMENTS ADJUSTING T-SLOT GUIDE BAR TO TABLE SLOT Make sure the saw is disconnected from the power source before proceeding! A bonus T-slot guide bar has been included with this Tenon Jig to offer a more versatile product which fits most table saws on the market. This bonus T-slot guide bar is used on table saws having a T-slot 1/4”...
- Page 7 ADJUSTMENTS 5) Loosen nut (A) fig.15 and turn set screw (B) counterclockwise two or three times. 6) Loosen two lock levers (A & B) Fig.16, and move the jig (C) until the vertical work support plate (D) is against the saw blade and tighten lever (A).
- Page 8 ADJUSTMENTS ADJUSTMENTS 1) For rapid adjustment of the vertical work support plate (A) fig.19, to- ward or away from the saw blade, loosen levers (B) and (C) and move jig (D) as necessary. Tighten levers (B & C) after rapid adjustment is made.
