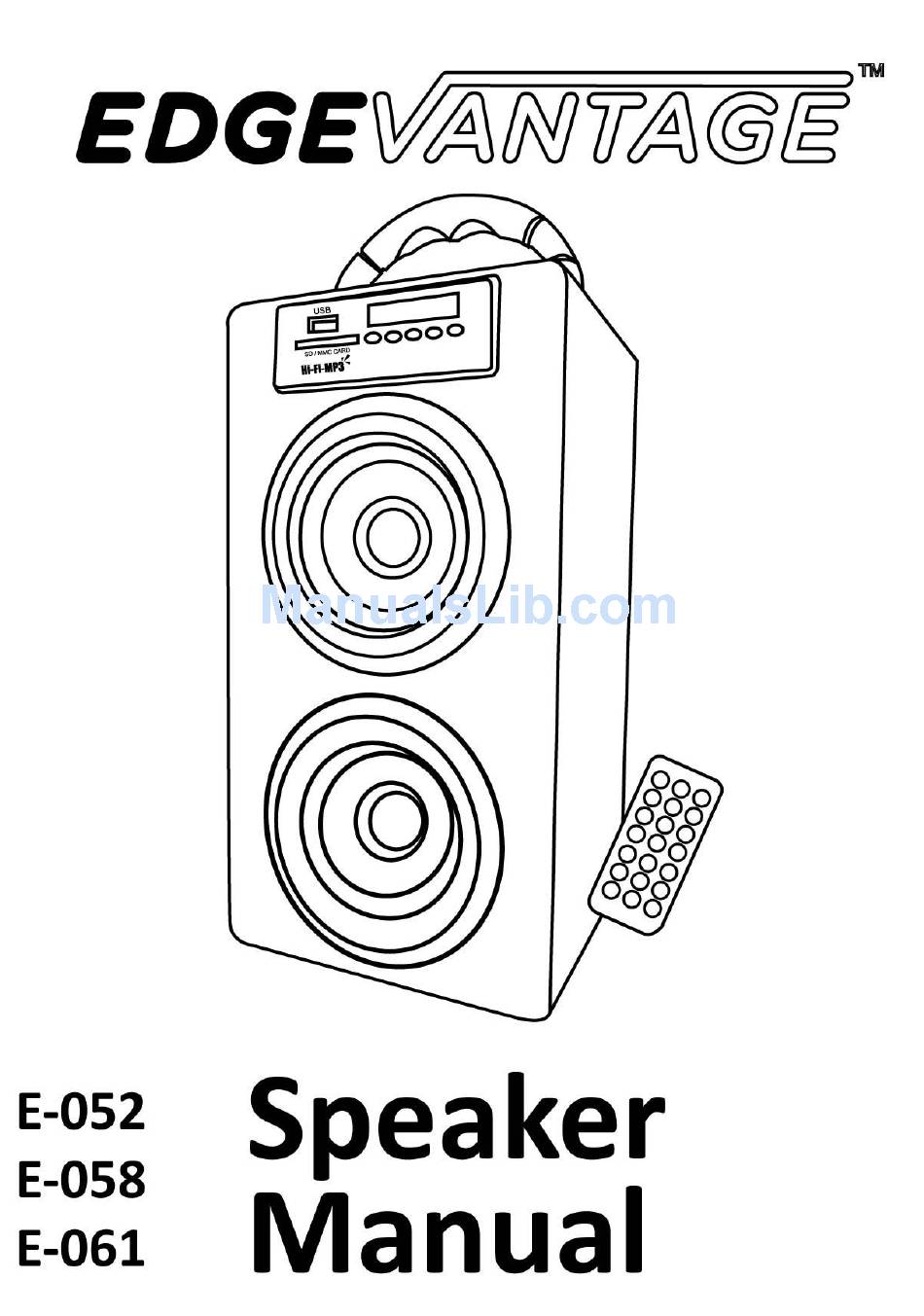

Summary of Contents for EdgeVantage E-052
-
Page 2: Front Control Panel
QUICK REFERENCE GUIDE FRONT CONTROL PANEL USB SLOT SD/MMC CARD SLOT REMOTE CONTROL SENSOR USB/SD MODE : PREVIOUS TRACK FM MODE : PREVIOUS PRESET STATION USB/SD MODE : PLAY/PAUSE FM MODE : THIS ACTS AS A VOLUME MUTE BUTTON LONG PRESS TO AUTO SCAN FM FREQUENCY AND PRESET THE FM RADIO STATIONS USB/SD MODE : NEXT TRACK FM MODE : NEXT PRESET STATION PRESET EQUALIZER : COUNTRY, POP, JAZZ, ROCK, CLASSIC : TO SWITCH FROM USB/SD/FM RADIO/AUX * *Please refer to the User Manual for AUX Mode function. Page 1 of 6 ... -
Page 3: Remote Control
REMOTE CONTROL STANDBY (THE MAIN POWER SWITCH LOCATED AT THE BACK PANEL OF THE SPEAKER SYSTEM MUST BE IN THE ON POSITION TO USE THIS FEATURE) TO SWITCH FROM USB/SD/FM RADIO/AUX MUTE o USB/SD MODE : PLAY/PAUSE o FM MODE : THIS ALSO ACTS AS A VOLUME MUTE BUTTON o LONG PRESS TO AUTO SCAN FM FREQUENCY AND PRESET THE FM RADIO STATIONS o USB/SD MODE : PREVIOUS TRACK o FM MODE : PREVIOUS PRESET STATION o LONG PRESS IN USB/SD/FM MODE FOR VOLUME DOWN Page 2 of 6 ... -
Page 4: Back Panel Controls
REMOTE CONTROL (CONTINUED…) o USB/SD MODE : NEXT TRACK o FM MODE : NEXT PRESET STATION o LONG PRESS IN USB/SD/FM MODE FOR VOLUME UP 5 PRESET EQUALIZER: COUNTRY, POP, JAZZ, ROCK, CLASSIC (ONLY IN USB/SD MODE) VOL DOWN ONLY AVAILABLE IN USB/SD AND FM MODE, DOES NOT WORK IN AUX MODE VOL UP ONLY AVAILABLE IN USB/SD AND FM MODE, DOES NOT WORK AUX MODE USB/SD MODE ‐ REPEAT ONE, RANDOM PLAY, REPEAT ALL OR REPEAT SONGS IN A FOLDER ON YOUR DISK FM MODE : AUTO SCAN & PRESENT THE FM RADIO FREQUENCIES. SWITCH BETWEEN USB AND SD MODE NUMBER BUTTONS o USD/SD MODE : GO DIRECTLY TO THAT FILE NUMBER o FM MODE : PRESSING CONSECUTIVE NUMBERS WILL TAKE YOU TO THAT FREQUENCY—I.E. PRESS 9 7 1 AND YOU WILL GET FREQUENCY 97.1 BACK PANEL CONTROLS ON/OFF POWER SWITCH USB CHARGING SOCKET (CABLE INCLUDED) FOR CHARGING THE LITHIUM ION BATTERY (INCLUDED). 3.5MM LINE IN FOR AUX CABLE (INCLUDED) TO CONNECT TO COMPATIBLE EXTERNAL DEVICES. Page 3 of 6 ... -
Page 5: Charging The Unit
Speaker System Features Plays MP3 Files stored in your SD Card or USB Disk Max Capacity 16GB for SD Card or USB stick (not included) FM Radio with up to 30 Preset Memory Stations Rechargeable Lithium Ion Battery Play/Pause /Forward/Rewind Buttons on unit & remote control. Full Function Infrared Remote Control On/Off Power Switch LINE IN to connect to External Audio Players such as iPod®, iPhone®,... - Page 6 5. Turn up/down the volume to the desired level from the unit’s volume control on the control panel by long pressing either or , or from the remote by pressing for Volume Down or Volume Up. The sound output quality of speakers will depend on the quality of the MP3 files.
- Page 7 The Trademark Blackberry® is owned by Research In Motion Limited and is registered in the United States and may be pending or registered in other countries. Edgevantage is not endorsed, sponsored, affiliated with or otherwise authorized by Research In Motion Limited.
