Seiwa SW RP07 User Manual

Digital data repeater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SW RP07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW RP07 and is the answer not in the manual?

Questions and answers

Summary of Contents for Seiwa SW RP07

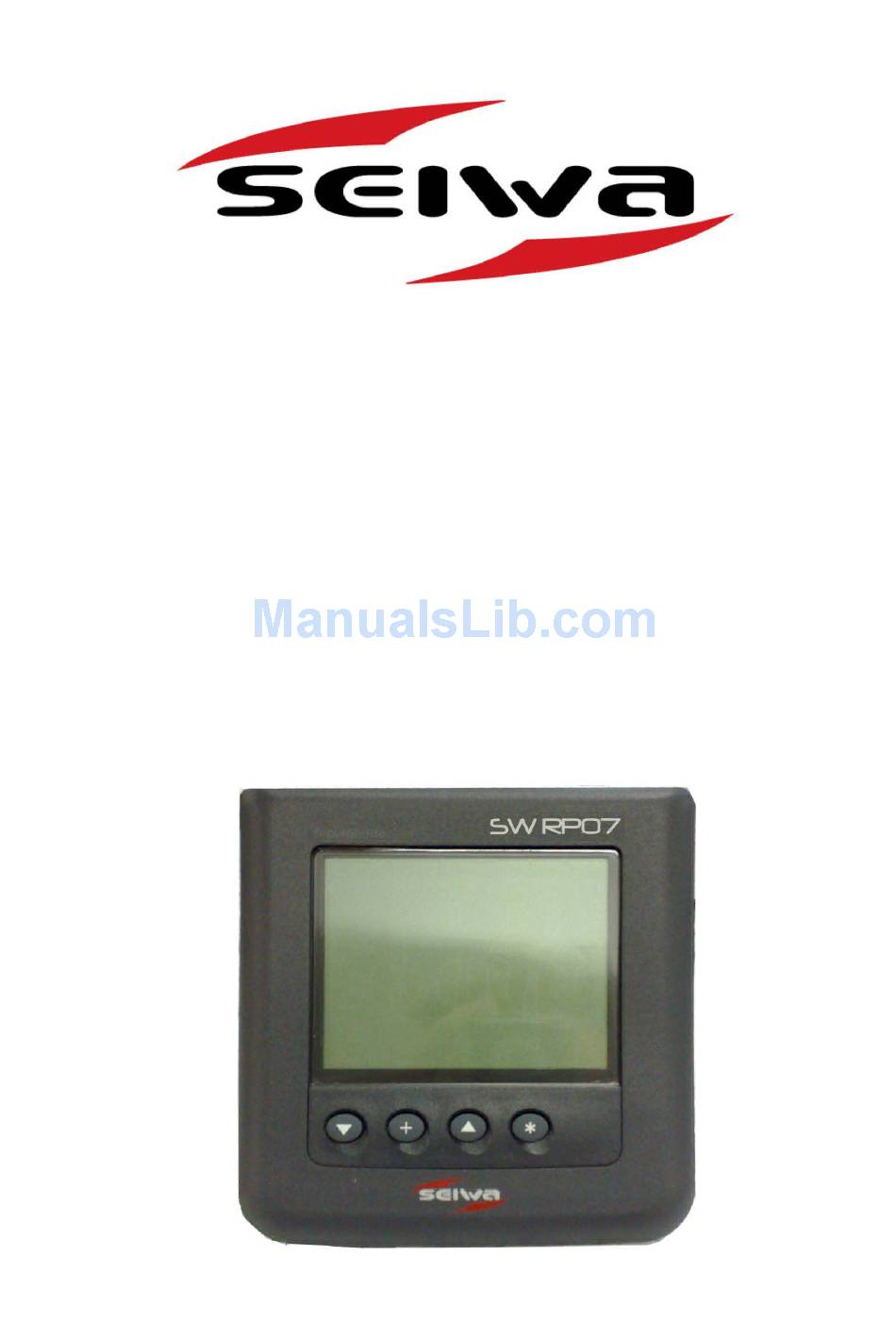

  • Page 1 SW RP07...

  • Page 2: Table Of Contents

    Notes and Warnings ........12 Other Seiwa products....…... 16...

  • Page 3: Installation

    Transducers: Transom and thru-hull speed/temperature transducers available separately. Display: 4 digit LCD, 5 levels of backlighting. NMEA 0183 sentences: Water temperature: $VWMTW,xx.x,C*CS Total/Trip Logs: $VWVLW,xxxx,N,yyy.y,N*CS Speed (Knots/km/h): $VWVHW,,,,,xx.x,N,yyy.y,K*CS CS=Check Sum Installation Before starting the installation, please read this entire section first. Finger tighten the screws that mount the instrument bracket - It is not necessary or recommended to use tools.

  • Page 4: Operation

    Operation Key Functions keys are used to select what to display, set backlight levels, calibrate speed, temperature and clock speed and set/change constants and units of display. New information is automatically saved to non-volatile memory. Backlight Intensity Press the key 1/2 second to adjust the backlight level for night viewing.

  • Page 5: Display Average Speed

    average speed. Pressing the key again while displaying the distance traveled log will toggle the display between total distance traveled and trip distance traveled. The trip log displays with a decimal point such as "82.3" and the permanent log displays to a full digit such as "562" so you always know which log you are viewing.

  • Page 6: Calibrating Speed

    keys for ten seconds and use the keys to adjust the first start value to any number between 1 and 99 minutes. Press the key to save the new value to memory. To change the second race timer start value press and hold the keys for ten seconds and use the keys to adjust the second start value to any number between 1 and 99 minutes.

  • Page 7: Nmea 0183 Sentences

    NMEA 0183 Sentences The SW RP07 outputs serial data of boat speed, water temperature and both permanent and trip logs in NMEA 0183 serial data format. The sentences are output in the following formats: Water temperature (C): $VWMTW,xx.x,C*CS Total/Trip Logs (N.Mi): $VWVLW,xxxx,N,yyy.y,N*CS Speed (Knots/km/h): $VWVHW,,,,,xx.x,N,yyy.y,K*CS...
