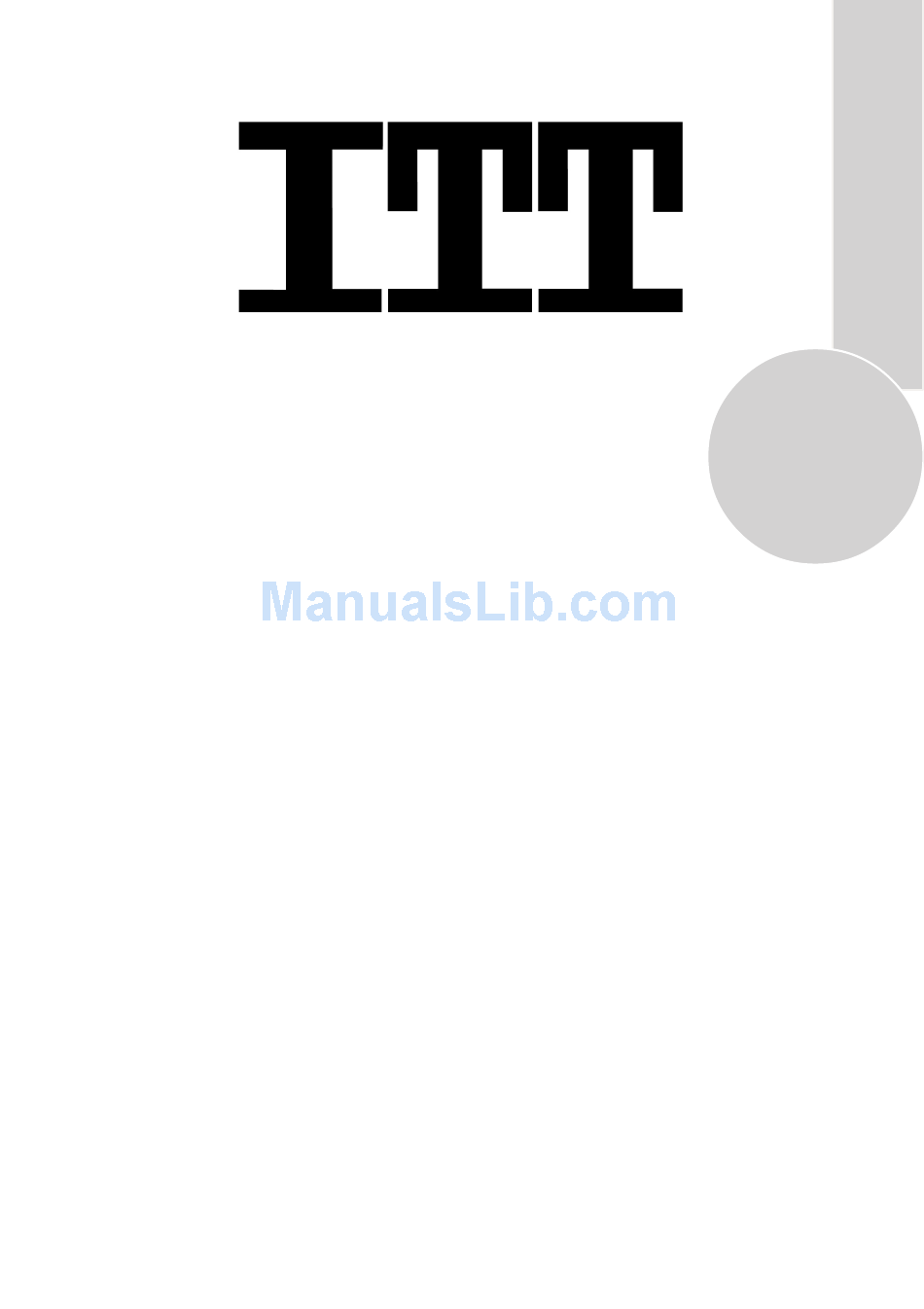

- Page 1 CTV 21-50ST Bedienungsanleitung Operating Instructions...
-
Page 2: Table Of Contents
List of contents Special features Safety instructions Getting started Aerial connection Switching on Battery fitting Control unit Front and rear panel External connections table Remote control Using the TV TV controls Manual tuning Automatic tuning Child lock Program table TV setup Sound menu 11-12 Picture menu... -
Page 3: Special Features
• Channel editing • Quick Program Display • Games (Optional) • Now&Next (TV Guide), (Optional) • Alarm function (Optional) is a registered trademark of ITT manufacturing Enterprises, Inc., a subsidiary of ITT Industries, Inc., and is used under license. www.itt-deutschland.de... -
Page 4: Safety Instructions
Safety is important Y our safety and the safety of others is important. Please, therefore, make sure you read the safety instructions before you operate this television. Safety instructions Read all the safety instructions before the first use of your TV. •... -
Page 5: Getting Started
Getting started Please Note Remove your television carefully When not in use disconnect the plug from the box. You may wish to from the mains power supply. store the packaging for future use. Press the Power button on the front of the TV . The In the box standby indicator will illuminate. -
Page 6: Control Unit
Control Unit Front Panel Program Down/Up button Volume Down/Up button. General Program ON/OFF switch Stand by (Depends on model) Stand by indicator External Connections: (Front or side) (External connections: (Rear) AV1 scart Headphone socket AV2 scart (optional) S-Video connection Aerial socket S-VIDEO Video RCA (Yellow) Power cable... -
Page 7: External Connections Table
External connections table Picture tube 20” 21” size/type AV1 Scart STD. STD. AV2 Scart OPT. OPT. Headphone OPT. OPT. socket Audio/Video OPT. OPT. S-Video OPT. OPT. socket : Standart : Optional Please note: The Audio/Video RCA, S-Video and Headphone socket can be placed on the front panel or on the right-hand side of the cabinet depending on the model of your TV. -
Page 8: Using The Tv
Using the TV Turning on for the first Mute time and Tuning To mute the sound press the Mute button on the remote control. A When you first turn your TV on, “ Language” menu willl appear. To loudspeaker symbol will appear on search on the languages, use the the screen. -
Page 9: Manual Tuning
Press the button again to return In the Setup menu select PROG to TV . NO and change to P1 using the Program down button to select it and the Volume up Tuning the television button to change it. There are two ways of tuning your television: Manual, where you control the tuning process Starting with Program 1, tune in the first channel as follows:... -
Page 10: Automatic Tuning
Use the Program down button to Tuning with channel numbers Enter the SETUP menu by pressing select AUTOPROGRAM and the blue button. press the OK button. A list of countries will appear. Select Press the OK button to enter the the desired country using CHANNEL row. -
Page 11: Program Table
Program Table Once you have tuned in all the channels you Please note want, you can change their program Some TV channels may send their names with teletext transmission. In this number, if required, and name them. case their names will be automatically To enter the PROGRAM TABLE shown on the name line. -
Page 12: Tv Setup
Volume TV set up Sets default volume using the Volume up The TV set up is accessed through the menu and down buttons. system. To save your settings, select STORE and press the OK button. Once you have stored your setup, this is the STORED will be displayed. - Page 13 Sound mode Dynamic Bass (optional) Y ou can select NORMAL, SPATIAL or DOLBY VIRTUAL (optional) using the Set DYNAMIC BASS to ON if you Volume up/down buttons or mix button. wish to deepen the bass sound specifically. SPATIAL sound is an ‘expanded stereo’. It gives the impression that the two speakers in the TV are further apart than they really are.
-
Page 14: Picture Menu
Equalizer Picture menu (Green button) EQUALIZER PICTURE BRIGHTNESS MUSIC CONTRAST SPORTS COLOUR CINEMA SHARPNESS SPEECH COLOUR TEMPERATURE NORMAL USER 0.1 0.5 1.5 5 10 STORE BACK BACK In this menu there is a series of preset The picture menu allows you to set up the equalizer settings for different types of following: sound output. -
Page 15: Features Menu
Language Select BRIGHTNESS, There are many languages available for the On CONTRAST, COLOUR and Screen Displays (OSD). SHARPNESS using the Program up/down buttons. Press the OK button to select the language list. Change the settings with the Volume up/down buttons. Press the Program down button to page through all the languages and To save your settings, select STORE... - Page 16 GAME (optional) Press the Menu button, select the "New Game" option and press the OK button to Use Program up and down buttons to select restart the game. You can press the Menu Games in the features menu. Press OK to button again to cancel this menu.
- Page 17 TV GUIDE (optional) STATION MATCH: The supported channels by provider may not be defined You can see the TV Guide information on automatically. You can open this menu and the screen by pressing the DOUB button define the provider for these channels. while a provider channel or a supported Adjusting the provider just one time is channel by provider is selected.
-
Page 18: Picture Format
Picture format PAT (Picture and Text) (Optional) In the double window function, you can also This allows you to select the picture size display the teletext screen in the second corresponding to the scren type of your TV: window. Avaible formats for 4:3 TV sets are 4:3 and TeleText 16:9. -
Page 19: Using Teletext
Using Teletext Teletext is an information system that displays TV/text mix text on your TV screen. Using the teletext To view a page of text while control buttons you can view pages of watching a TV programme press information that are listed in the teletext button. - Page 20 Page hold To reveal information If the page of text you have selected Press the Rev button to reveal REVEAL contains sub pages, these sub pages concealed information (quiz answers etc.). will automatically be displayed in order with a delay to allow you to read the page.
-
Page 21: Connecting External Equipment
Connecting external equipment Headphones (optional) Please note: You can connect a RGB external equipment The headphones must have an impedance of via Scart 1. It is necessary to you use full between 8 and 32 ohms and have a 3.5 mm Scart cable for this purpose. - Page 22 S-Video Player Via aerial socket If you have an S-Video player you can Make sure the TV and video recorder are connect it to SCART socket 2 (optional) both switched off. via an adaptor from scart to S-Video/RCA audio (not supplied). Unplug the aerial lead from the TV and plug it into the aerial socket on the video Press the AV button three times...
-
Page 23: Connecting A Dvd
Connecting a DVD Via RCA lead (optional) Make sure the TV and DVD player are both player switched off. Via SCART Plug one end of the RCA lead into the video Make sure the TV and DVD player are both and audio out sockets on the back of the switched off. -
Page 24: Connecting A Decoder
Connecting a decoder Plug one end of the RCA lead into the video and audio out sockets on the back of the decoder and plug the other end into the video Via SCART and audio in sockets on the TV . Make sure the TV and decoder are both switched off. - Page 25 Connecting TV with video and satellite/digital receiver Satellite/digital receiver Video Rear of TV Aerial out Aerial out Video Scart socket Scart socket Scart socket Scart 1 Aerial in Aerial in Aerial socket Connecting TV with camcorder AV1 or AV2 (2 scart models only) S-Video In S-VIDEO Video In...
-
Page 26: Help And Service Tips
Help and service tips The TV does not work No sound • Is the sound muted? Press the Mute Make sure it is plugged into the mains supply button. and switched on. • Is the volume turned down? Poor picture •... -
Page 27: Technical Specifications Table
Technical specifications table 21” Picture tube 20” 21” 4:3 PF size/type Screen size 51 cm 55 cm 55 cm Visible 48 cm 51 cm 51 cm screen size Sound output 2x7 W 2x7 W 2x7 W (%10 THD) Power 55 W 55 W 55 W consumption...
