Operating Instructions

Design Coffee electronic

Art.-No. 42700 Design Coffee electronic

Read all provided instructions before first usage!

Model and attachments are subject to change!

For domestic use only!

Table of Contents

Need help?

Do you have a question about the 42700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gastroback 42700

Page 1: Operating Instructions

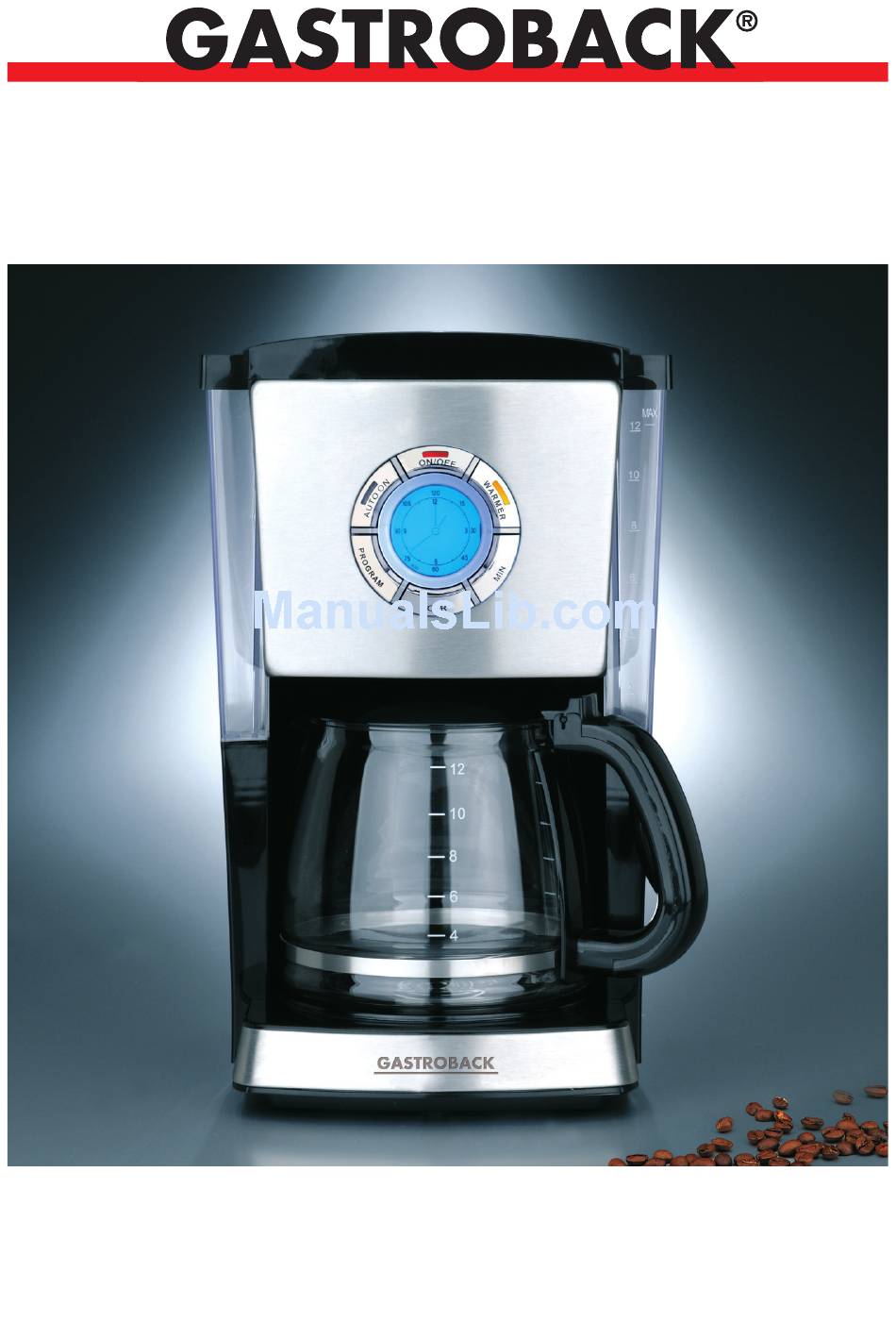

Operating Instructions Design Coffee electronic Art.-No. 42700 Design Coffee electronic Read all provided instructions before first usage! Model and attachments are subject to change! For domestic use only!
Page 2: Table Of Contents
Carefully read all provided instructions before you start running the appliance and pay regard to the warnings mentioned in these instructions. Table of Contents Knowing Your New Coffeemaker ............25 Important Safeguards ............... 26 High Temperature - Risk of Burns ............ 28 Technical Specifications ..............
Page 3: Knowing Your New Coffeemaker
Congratulations on your purchase of the Design Coffee electronic, the new coffeemaker from Gastroback. Using the Design coffee electronic, only a few simple touches are necessary to brew an excellent coffee. By means of the automatic operation, the coffeemaker will wait for you with freshly brewed coffee for instance, on your lunch break.
Page 4: Important Safeguards
Important Safeguards Carefully read all instructions before operating this appliance and save the instructions for further reference. Do not attempt to use this appliance for any other than the intended use, described in these instructions. Any other use, especially misuse, can cause severe injuries or damage by electric shock, heat or fire.
Page 5 • Close supervision is necessary when the appliance is used near young children. Do not let young children play with any parts of the appliance or the packaging. The appliance is not intended for use by children or infirm persons without supervision. For storage always keep the entire appliance dry and clean and where young children cannot reach it.
Page 6: High Temperature - Risk Of Burns
• Do not use the glass carafe for any other than the intended use, or with any other drip-type coffeemaker, on a range top, or in a microwave oven. Do not stir inside the glass carafe with any hard objects (e.g. spoon or cooking utensils). •...
Page 7: Technical Specifications
(e.g. filter basket) and/or moving or cleaning the appliance. Always empty the water reservoir completely, before transportation, cleaning or storing the appliance. Technical Specifications Model: Art.-No. 42700 Design Coffee electronic Power supply: 220/240 V AC, 50 Hz Power consumption: 950 Watt Length of power cord: ca.
Page 8: Preparing Some Cups Of Coffee
Preparing Some Cups of Coffee WARNING: Always special care is necessary, when using any electrical appli- ance for heating water, to avoid risks of overheating, fire and electric shock. DO NOT leave the appliance unattended when it is in reach of young child- ren.
Page 9 4. Insert the filter basket into the appliance. The insert guide nipple at the upper brim of the filter basket must point to the back side of the coffeemaker. Gently press the filter basket down until it snaps into place. 5.
Page 10: Freshness Timer And Automatic Switching Off
10. When the brewing cycle ends, and the water reservoir is empty, there may still be hot liquid in the filter basket. Wait a few minutes for the rest of the liquid to drain, before finally removing the glass carafe. 11.
Page 11: Adjusting The Warming Plate Temperature
or two drops fall from the filter basket, after removing the glass carafe. 2. IMMEDIATELY put back the glass carafe on the warming plate to avoid that the filter basket will overflow. Doing so, ensure that the coffee drips into the glass carafe again. Adjusting the Warming Plate Temperature The coffeemaker offers the option of adjusting the temperature setting of the warming plate to slightly reduce the temperature of the coffee after it has been brewed.
Page 12: Selecting The Auto Brew Start Time
Selecting the Auto-Brew Start Time Note: For adjusting the start time the clock must be set. (See: Setting the Clock) 1. Press the PROGRAM button. The letter “P” will blink on the lower left of the display. 2. Adjust the time you want to start the brewing cycle by using the HOUR and MIN buttons following the procedure for setting the clock.
Page 13: Useful Tips
Tip: You can switch off automatic operation quite easily by pressing the AUTO ON button again. The green light will expire and the coffeemaker is in normal operation again. When the brewing cycle starts, the green light on the AUTO ON button will go out and the red light of the ON/OFF button will be illuminated to indicate that the coffeemaker is in ope- ration.
Page 14: Care And Cleaning
Care and Cleaning WARNING: Cover, filter basket, glass carafe, and warming plate will get very hot during operation. Additionally, hot water and steam can pour out during operation. Always switch OFF (ON/OFF button), unplug, allow cooling down, moving or cleaning the appliance. Additionally, empty the water reservoir before transportation or storage.
Page 15: Cleaning The Coffeemaker
Cleaning the Coffeemaker 1. Always unplug the appliance and allow cooling down before cleaning. 2. Open the cover of the coffeemaker, grasp the filter basket at the tabs, and pull out the filter basket. Empty the filter basket. (See: Cleaning the Filter Basket) CAUTION: The hinges of the covers of the appliance and/or glass carafe are sensitive to careless handling.
Page 16: Solving Problems
5. Refill the water reservoir with cold tap water and repeat the brewing cycle with water only. 6. Refill the water reservoir again with cold tap water and repeat the brewing cycle a second time using only water. This will rinse out any remaining vinegar solution. Thereafter, the coffee- maker is ready for use again.
Page 17 Problem Possible Reason The Simple Solution The coffee does not The water reservoir is empty. Fill in a sufficient amount of water. drip in the glass Press the ON/OFF button to switch the appliance ON. The appliance is switched OFF; carafe.
Page 18: Storage
Information and Service Please check www.gastroback.de for further information. For technical support, please contact Gastroback Customer Care Center by phone: +49 (0)4165/22 25-0 or e-mail info@gastroback.de. Notes for Disposal Dispose of the appliance must be effected in accordance with the corresponding local regulations and requirements for electrical appliances.
Page 19: Index
Index | A | | O | AM/PM indicator ......33, 44 operating elements ........25 AUTO ON button ..... 25, 34, 35 overfilling holes .......25, 30 automatic operation ......33, 34 automatic switch-off .......32 | P | Pause & Serve mechanism ..25, 30, 32 | B | power consumption ....
Page 20 GASTROBACK GmbH Gewerbestraße 20 . D-21279 Hollenstedt / Germany Telefon +49 (0)41 65/22 25-0 . Telefax +49 (0)41 65/22 25-29 info@gastroback.de . www.gastroback.de...
