Summary of Contents for Seiwa SW RP05

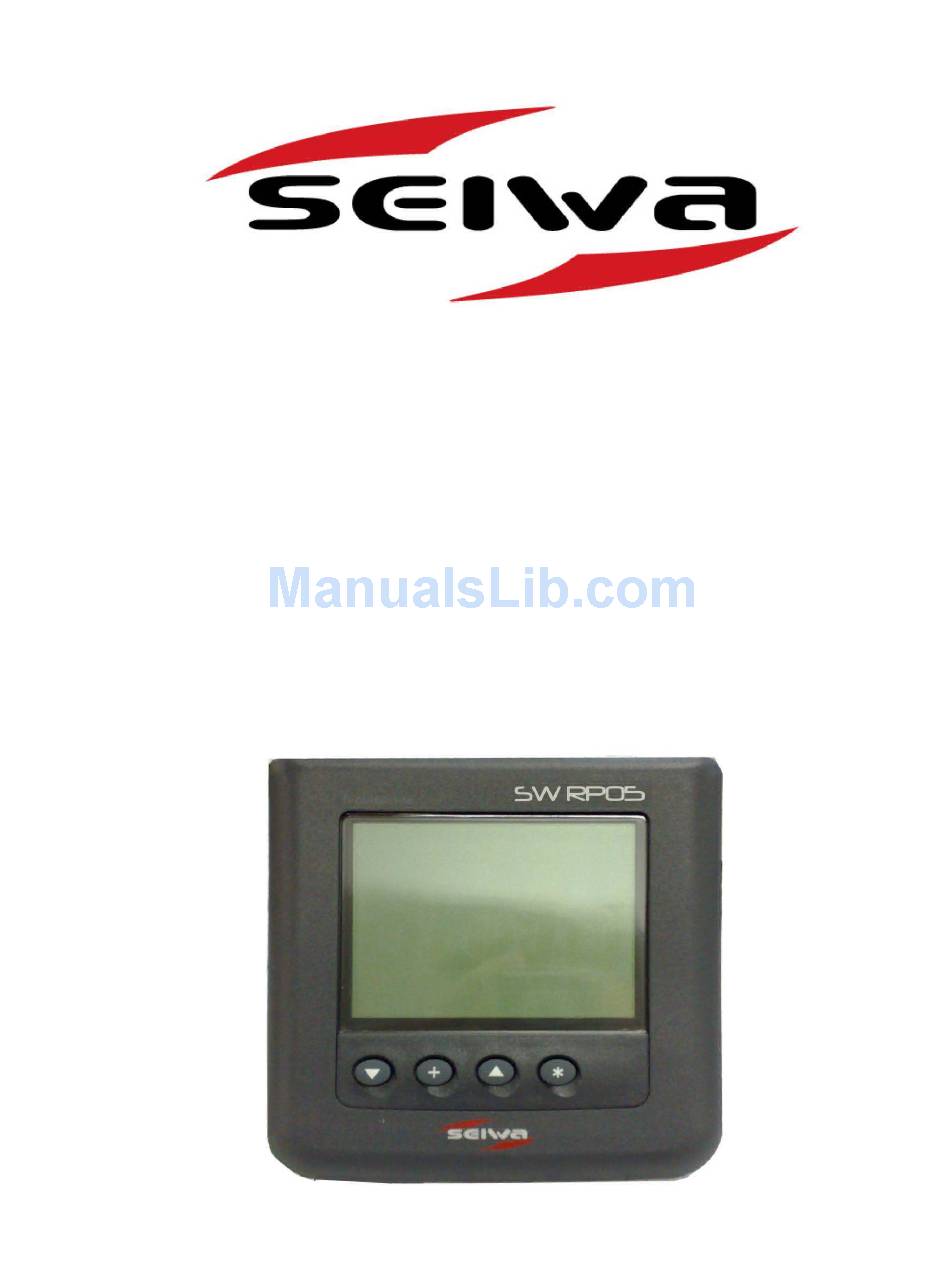

- Page 1 SW RP05...
- Page 2 Notes and Warnings ... . . ……………..11 Other Seiwa Products ..……… ..12 Introduction The SW RP05 is a compact digital depth gauge.
- Page 3 Depth range: 1.2 to 1000 feet ( 0.3 to 365 Metres) Resolution: 0.1 Feet, Meters or Fathoms below 20.0, full digits above 20 Keel offset adjust range: -20.0 to +20.0 feet Alarms: Shallow depth alarm Deep depth alarm Anchor drag alarm Display: 4 digit LCD Feet, Metres and Fathoms icons Alarm ON/OFF icons...
- Page 4 Operation Key Functions keys are used to select what to display, set backlight levels, turn alarms on/off, set alarms values, set/ change keel offset and display damping. New information is automatically saved to non-volatile memory. Turning Alarms ON/OFF Press the key 1/2 second to turn alarms ON.
- Page 5 Press the key 1/2 second to adjust the backlight level for night viewing. Each time you press the key 1/2 second, the level will get brighter 1, 2, 3, 4, OFF, 1, 2, ... etc. The blue backlight ON/OFF control wire in cable #2 must be switched to +12/24V for the backlights to work.
- Page 6 A 5V signal (10 mA Max.) is output whenever an alarm condition exists and the alarms are enabled. NMEA 0183 Sentence: The SW RP05 outputs serial data of depth in NMEA 0183 format. The sentence is output in the following format: Depth: $SDDPT,xxx.x,yyy.y*CS xxx.x = Depth in Metres yyy.y = Keel offset in Metres...
