Summary of Contents for XX.Y BTT009

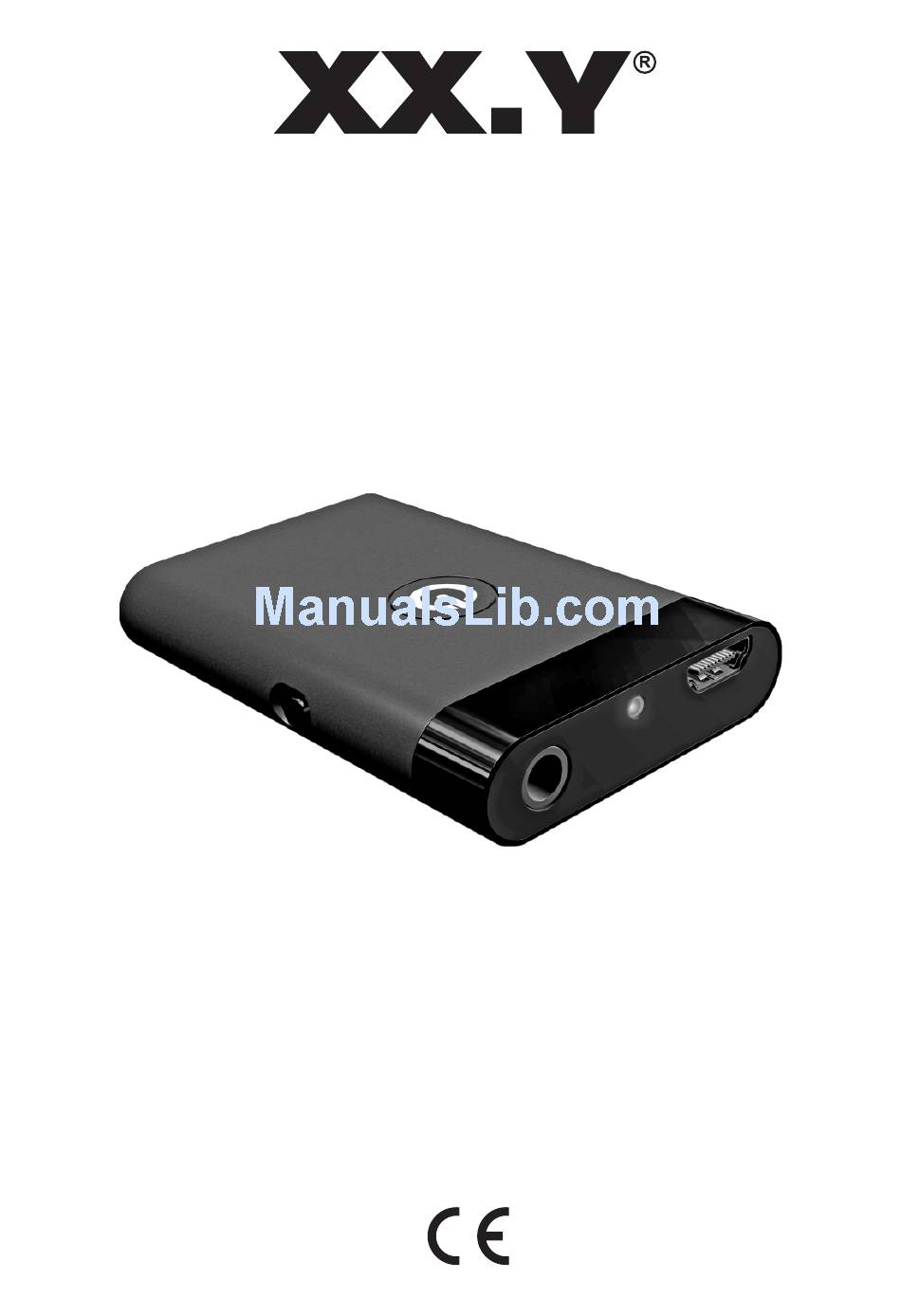

- Page 1 BTT009 Bluetooth transmitter and receiver Manual...
-
Page 2: Table Of Contents
Index Before use………………………………………………....……..3 1. About the product………………………………………………….…..3 2. System requirements…………………………………………...….…3 3. Overview……………………………………………….………..…..3 Getting started……………………………………………....…..4 1. Charging the battery of THE BT TRANSCEIVER….……………..4 TX Mode……………………………………………………....4 1. Switching on/off the transmitter……………………………..……4 2. Pairing with a Bluetooth device………………………………….…5 3. Reconnecting to a Bluetooth device………………………………..6 4. -
Page 3: Before Use
System requirements/Overview 2. System requirements a) When THE BT TRANSCEIVER is used as a Bluetooth transmitter, you need to prepare an audio player with 3.5mm audio-out jack and a Bluetooth A2DP receiver, such as Bluetooth stereo headset, Bluetooth stereo speaker and so on. b) When THE BT TRANSCEIVER is used as a Bluetooth receiver, you need to prepare a stereo receiver with 3.5mm audio-in jack and a Bluetooth A2DP transmitter, such as Bluetooth cell phone,... -
Page 4: Getting Started
Charging the battery Getting started 1. Charging the battery of THE BT TRANSCEIVER First time charging: Please charge the battery fully before use the transmitter. Low battery When you see the red LED flashes during use, the battery is low power and needs to be charged. -
Page 5: Pairing With A Bluetooth Device
TX Mode 2. Pairing with a Bluetooth device After connecting transmitter to a Bluetooth stereo receiver, you can enjoy music wirelessly. Before pairing, please make sure your Bluetooth stereo receiver supports Bluetooth A2DP profile. The pairing steps are as follows: 1) Make sure the transmitter is off, otherwise switch it off;... -
Page 6: Reconnecting To A Bluetooth Device
TX Mode Notes: The pairing mode will last 2 minutes. The transmitter will enter standby mode if no devices can be connected within 2 minutes. The transmitter can pair with a Bluetooth stereo receiver whose PIN NO... is “0000”, “1234”or “1111”, “8888”. 3. -
Page 7: Led Indicator
TX Mode 5. LED indicator Blue LED flashes continuously Pairing mode Blue LED flashes once every 1 Standby mode and not second connected to a device Blue LED flashes twice every 4 Connected to a device seconds Red LED flashes Low power RX Mode RX Mode... -
Page 8: Pairing With A Bluetooth Device
3) Activate your cell phone Bluetooth function and set your cell phone to search for Bluetooth devices within range. After the search is completed, select “BTT009” from the list of devices shown; 4) According to the indication, enter password or PIN No:“0000”;... -
Page 9: Listening To Music
RX Mode Notes: If the pairing is failed, please switch off the receiver and re-pair according to steps 1～6 mentioned above. After pairing is successful, the receiver and the cell phone will remember each other, they will no need to re-pair next time. The receiver can remember 8 paired devices, when the number of paired devices exceeds 8, the first one will be replaced. -
Page 10: Auto-Off
RX Mode 5. Auto-off The receiver will automatically switch off if no devices can be connected within 5 minutes. 6. LED indicator LED indicator Status of the receiver Red and blue LEDs flash Pairing mode alternately Blue LED flashes once every 1 Standby mode and not connected second to a device... -
Page 11: Specifications
Specifications Bluetooth specification: Bluetooth 2.1 + EDR Bluetooth profiles: A2DP and AVRCP Frequency range: 2.402GHz-2.480GHz Built-in battery: lithium polymer Operating distance: Up to 10 meters Charging input voltage: DC 5V Working time: TX: Up to 10 hours, RX: UP to 8 hours Charging time: About 2.5 hours Dimensions: 51.4×34.7×8.6mm Weight: 48.5g...
