Summary of Contents for Ronetix EB9261
-

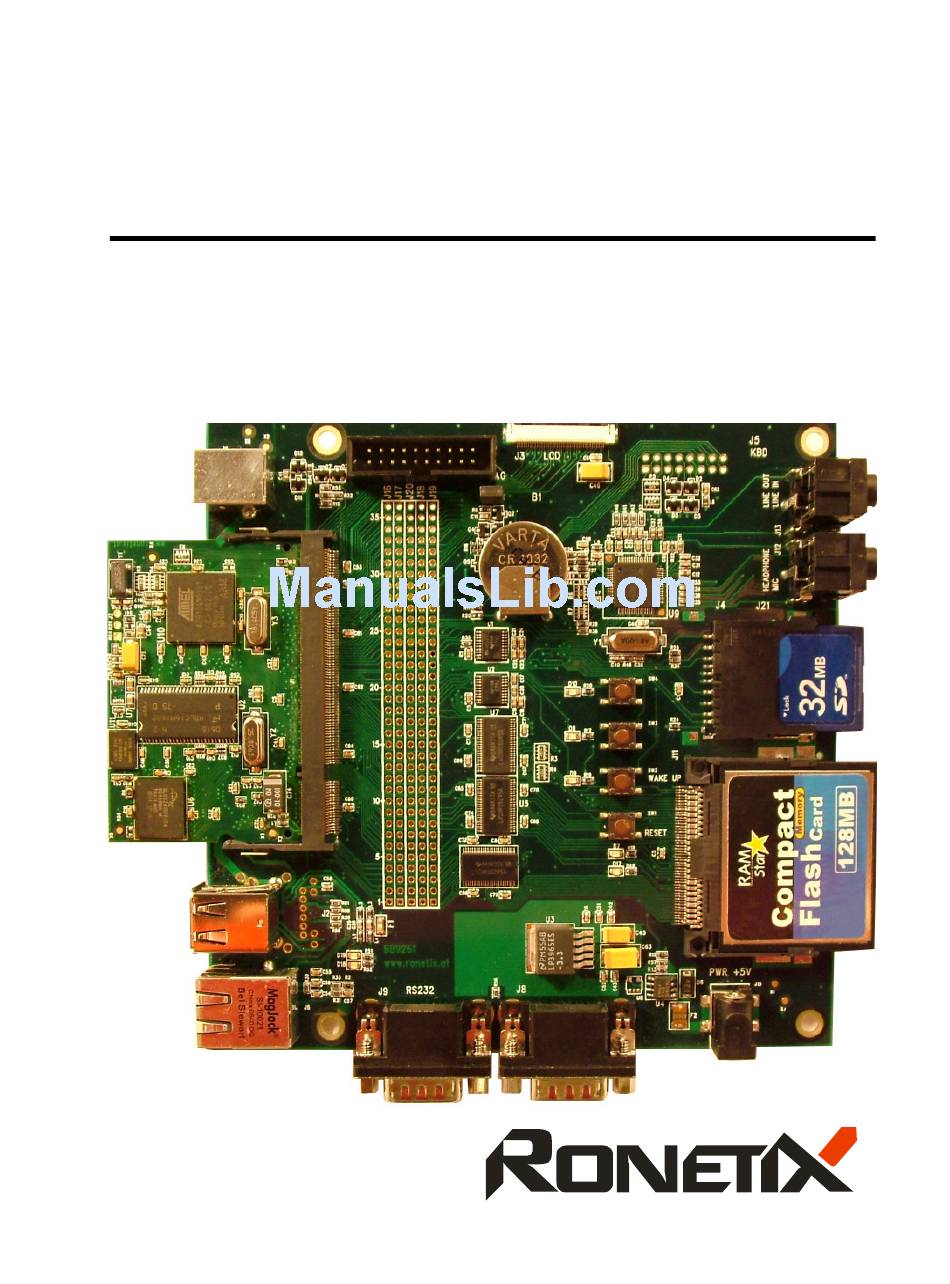

Page 1: User Manual
EB9261 Evaluation Board User Manual Version 1.2 embedded development tools... - Page 2 Acknowledgements November, 2008 Ronetix has made every attempt to ensure that the information in this document is accurate and complete. However, Ronetix assumes no responsibility for any errors, omissions, or for any consequences resulting from the use of the information included herein or the equipment it accompanies.
-
Page 3: Table Of Contents
Crystal Quartzes......................8 2.4.6 Power ...........................8 2.4.7 Ethernet Controller .......................8 2.4.8 Temperature range.......................8 BASE BOARD BB9261......................9 Revisions........................10 Jumpers.........................10 Electrostatic Warning....................10 Requirements........................11 GETTING STARTED ......................11 Getting started with Linux ...................11 Getting started with a standalone example under Windows ........11 EB9261 User’s manual www.ronetix.at... -
Page 4: Overview
EB9261 1 Overview Scope The EB9261 Development Kit enables real time code development and evaluation. It supports AT91SAM9261. Package contents The Development Kit consists of: CPU Module PM9261 Base Board BB9261 Power Supply 5V/1A PEEDI – JTAG Emulator and Flash Programmer (optional) -
Page 5: Electrostatic Warning
The PM9261 Module is shipped in protective anti-static packaging. The board must not be subjected to high electrostatic potentials. A grounding strap or similar protective device should be worn when handling the board. Avoid touching the component pins or any other metallic element. EB9261 User’s manual www.ronetix.at... -
Page 6: Layout
The board has 4 signal layers and 2 power planes. The mechanical drawing of the CPU module is available on the DVD or here: http://download.ronetix.info/boards/doc/PM9261/v1.2/bb9261_v1.2_assembly.pdf Figure 2-1 – Top View Figure 2-2 – Bottom View EB9261 User’s manual www.ronetix.at... -
Page 7: Circuit Description
The PM9261 has on board: 4 Mbyte, 16-bit Parallel Flash (boot capable) • 64 Mbyte, 32-bit SDRAM • 2 Gbit, 8 or 16-bit NAND Flash (boot capable) • 32 Mbit, serial SPI DataFlash (boot capable) • EB9261 User’s manual www.ronetix.at... -
Page 8: Serial Number Chip Ds2401
If BMS = 1 (J22 open) – then the internal 32 KB ROM boot loader of AT91SAM9261 allows the CPU to boot from the DataFlash or the NAND Flash The JTAG Emulator and Flash Programmer PEEDI from Ronetix support the flash programming of all these memories: FLASH, DataFlash and NAND Flash. -
Page 9: Base Board Bb9261
Two USB Host ports One RJ45 10/100M Ethernet JTAG debug interface, 20-pin One 3.5” ¼ VGA TFT LCD + Touch Screen – 40 pin Two RS232 Four Audio connectors: Line In, Line Out, Headphone, Microphone One MMC/SD card EB9261 User’s manual www.ronetix.at... -
Page 10: Revisions
The BB9261 Module is shipped in protective anti-static packaging. The board must not be subjected to high electrostatic potentials. A grounding strap or similar protective device should be worn when handling the board. Avoid touching the component pins or any other metallic element. EB9261 User’s manual www.ronetix.at... -
Page 11: Requirements
For more information please see the board schematics on the DVD. 4 Getting started The EB9261 is delivered with a DVD containing all necessary and step-by-step procedure for working with the GNU development tools. Please refer to this DVD, or to the Ronetix web site, for the most up-to-date information: http://download.ronetix.info...
