OWNER'S MANUAL

Action Camera / DVR

Table of Contents

Need help?

Do you have a question about the Rush and is the answer not in the manual?

Questions and answers

Summary of Contents for Whistler Rush

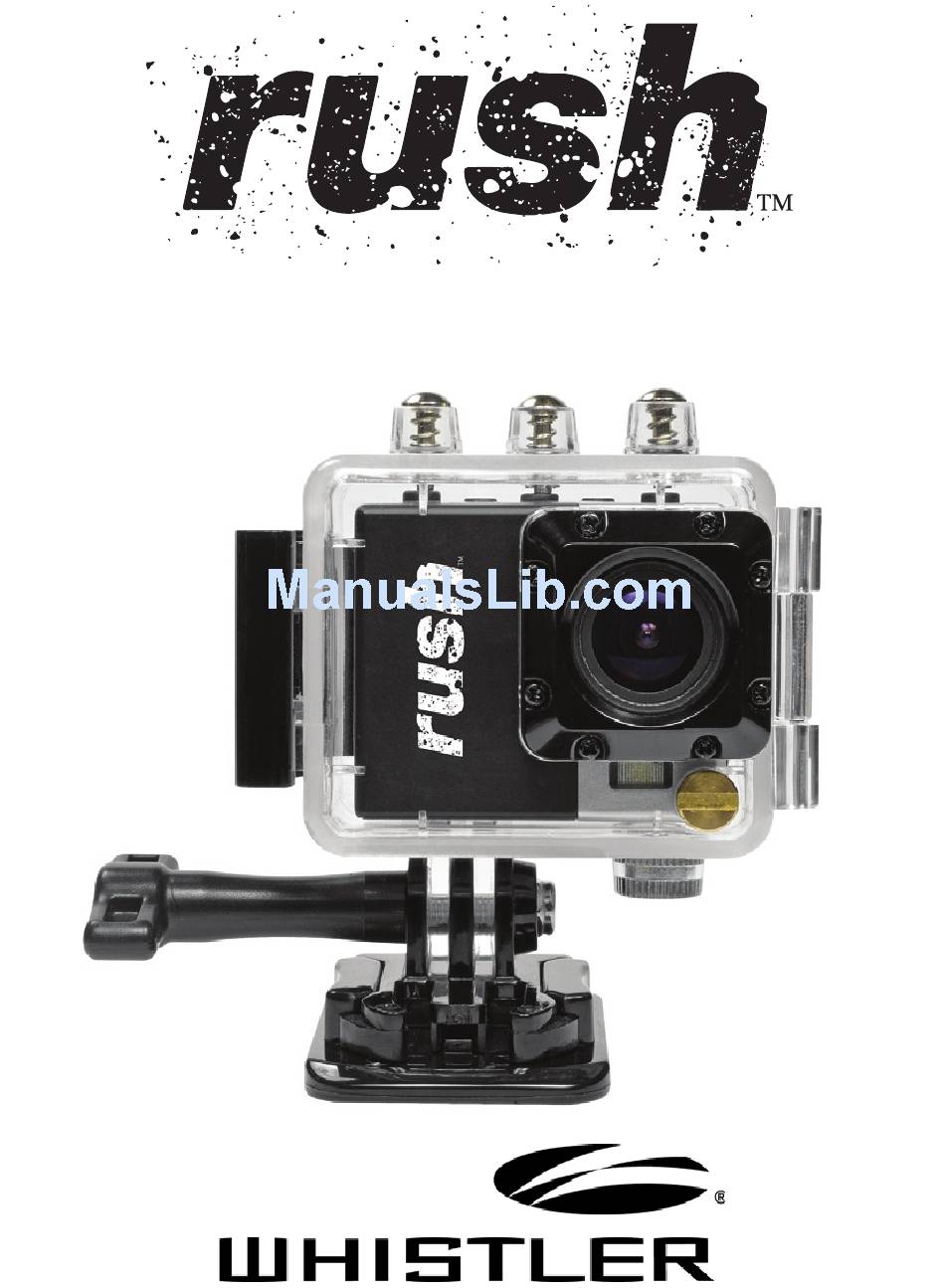

Page 1 OWNER’S MANUAL Action Camera / DVR...
Page 2: What's Included
WHATS INCLUDED CAMERA DIVE CASE CASE CLIP 2 HELMET MOUNTS 2 FLAT MOUNTS BATTERY SHORT HANDLE BAR SURF BOARD LONG SHAFT MOUNT MOUNT SHAFT WINDSHEILD USB CABLE AV CABLE USER MOUNT MANUAL 12V POWER ADAPTER...
Page 3: Feature Description
FEATURE DESCRIPTION Features 01 Battery cover 02 USB 03 SD1 04 HDMI 05 SD2 06 Microphone 07 Charging indicator light 08 White light 09 Status indicator light 10 Posts for Car DVR Function 11 White light Button 12 Power Button 13 Menu Button 14 Photo Button 15 Replay Button...
Page 4: Screen Description
SCREEN DESCRIPTION Screen Icon Recording Time Timestamp (designates ON or OFF) Video / Photo Battery Display 00 10 :01 20.5G B 1080 p 10:03 System Time Image Quality Memory cards and remaining capacity Micro SD slots 1 & 2 for Action Camera function. Micro SD slot 2 for car DVR function.
Page 5: Menu Settings
SETTINGS Menu Settings External Srceen Display Menu Photo (bold italic indicates default setting) Photo size: 8M, 5M, 3M Off, 3 Photos, 5 Photos Photo intervall: Off, 3 Sec., 5 Sec., 10 Sec., Auto shooting: 30 Sec., 60 Sec. Time stamp: Off, On Video 1080p, 1080pS, 720pH, 720p...
Page 6 SETTINGS Video Settings System Settings Image Settings Menu Options Menu Settings System Language: English, French, German, Spanish, Italian, Dutch, Norwegian, Russian Date: YYYY-MM-DD Time: hh:mm Auto Screen Off: Off, 30 Sec., 60 Sec., 120 Sec. Auto Power Off: Off, 60 Sec., 120 Sec., 300 Sec. Motion Detection: Off, High, Medium, Low Regular, Rotation 180...
Page 7: Memory Card
OPERATIONS Memory Card The rush Action Camera supports 2GB, 4GB, 8GB, 16GB and 32GB capacity micro SD, micro SDHC and micro SDXC memory cards. While all speed class ratings are compatible, Speed Class 4 or above is recommended for high definition video recording use.
Page 8 OPERATIONS Battery The included lithium-ion battery comes partially charged. To charge, connect the included USB cable to camera and connect the other end of the cable to a power source such as a computer, 5 Volt wall charger or Mobile power bank. No damage will occur to the camera or battery if used prior to a full charge.
Page 9 Press and hold to turn camera OFF. Screen shows rush image and then goes off when camera is turned off. NOTE: 1. Pressing and holding the power button when recording video may cause the video being recorded to be lost.
Page 10 OPERATIONS When replaying videos or reviewing photos: Short press to call the *File operations* window, you can choose to “Return, Delete this file, Delete all files or LOCK/UNLOCK (clear protection of files); Long press to go directly to Photo/Video Mode. Photo Button: • Take Photo/Photos • UP Button in Menu , Replay or Connect to PC...
Page 11 OPERATIONS Record Button: • Start/stop video or time lapse video recording • DOWN Button in Menu , Replay or Connect to PC mode Press to start video recording. Press again to save video and turn recording OFF. Record normal video with section time set in Menu: 5 / 10 / 15 / 20 / 30 minutes Record time lapse video button works as DOWN button in:...
Page 12: Troubleshooting
TROUBLESHOOTING About Powering ON/OFF 1. Unable to power on • Check to make sure battery is installed correctly. • Check to make sure battery is fully charged. • Take out the battery, reinstall it and power the device on. 2. Immediately powers OFF after being powered ON • Check to make sure battery is fully charged.
Page 13 TROUBLESHOOTING 4. The video jerks when playing on the PC directly from camera. • The USB connection is too slow. Download the file to the PC first. • The micro SD Card is too slow. Use one of the recommended micro SD Cards. • The computer is too slow.
Page 14: About Display
TROUBLESHOOTING 2. White dots appear on image • Dust or other particles may cause reflection if camera is used in the dark and does not indicate a failure of the device. • Check camera lens or dive box lens cover for dust or other particles.
Page 15: Specifications
SPECIFICATIONS Sensor: 5.0 M 1/2.5” CMOS Sensor Lens: f/2.8, 6-layers glass lens Compression: H.264 FOV: 170° @ 720p; 127° @ 1080p Recording modes: 1080p 30fps , 720 60fps Photo modes: 8M / 5M / 3M Optional Motion Detection: Time Lapse modes: 1fps, 2fps, 6fpm, 1fpm, Screen: 1.5”...
Page 16: Warranty Information
All express or implied warranties for this product are limited to one (1) year. Whistler is not liable for damages arising from the use, misuse, or operation of this product including but not limited to loss of time,...
Page 17 • The unit has been misused, abused, modified, installed improperly, or had its housing removed. The minimum out of warranty service fee for your Whistler rush Action Camera is $125.00 (U.S.). If you require out of warranty service, please return your unit as outlined in the section “Service Under Warranty”...
Page 18 WARRANTY INFORMATION In the event repairs cannot be covered by the minimum service fee, you will be contacted by a Whistler technical service specialist who will outline options available to you. IMPORTANT: When returning your unit for service, be certain to include a daytime telephone number and an email address (if applicable).
Page 19: Corporate Headquarters
Bentonville, AR 72712 Toll Free (800) 531-0004 TEL (479) 273-6012 FX (479) 273-2927 www.whistlergroup.com CUSTOMER RETURN CENTER 1412 South 1st St. Rogers, AR 72756 Customer Service Tel (800) 531-0004 Email: info@whistlergroup.com P/N 406000A Rev. 1 © 05/2014 The Whistler Group, Inc.
