Chapter 2 Operating Instructions; External Controls; Front Panel Controls - Acer X213H Service Manual

Operating Instructions
Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the
monitor. By changing these settings, the picture can be adjusted to your personal preferences.
• The power cord should be connected.
• Connect the video cable from the monitor to the video card.
• Press the power button to turn on the monitor position. The power indicator will light up.

External Controls

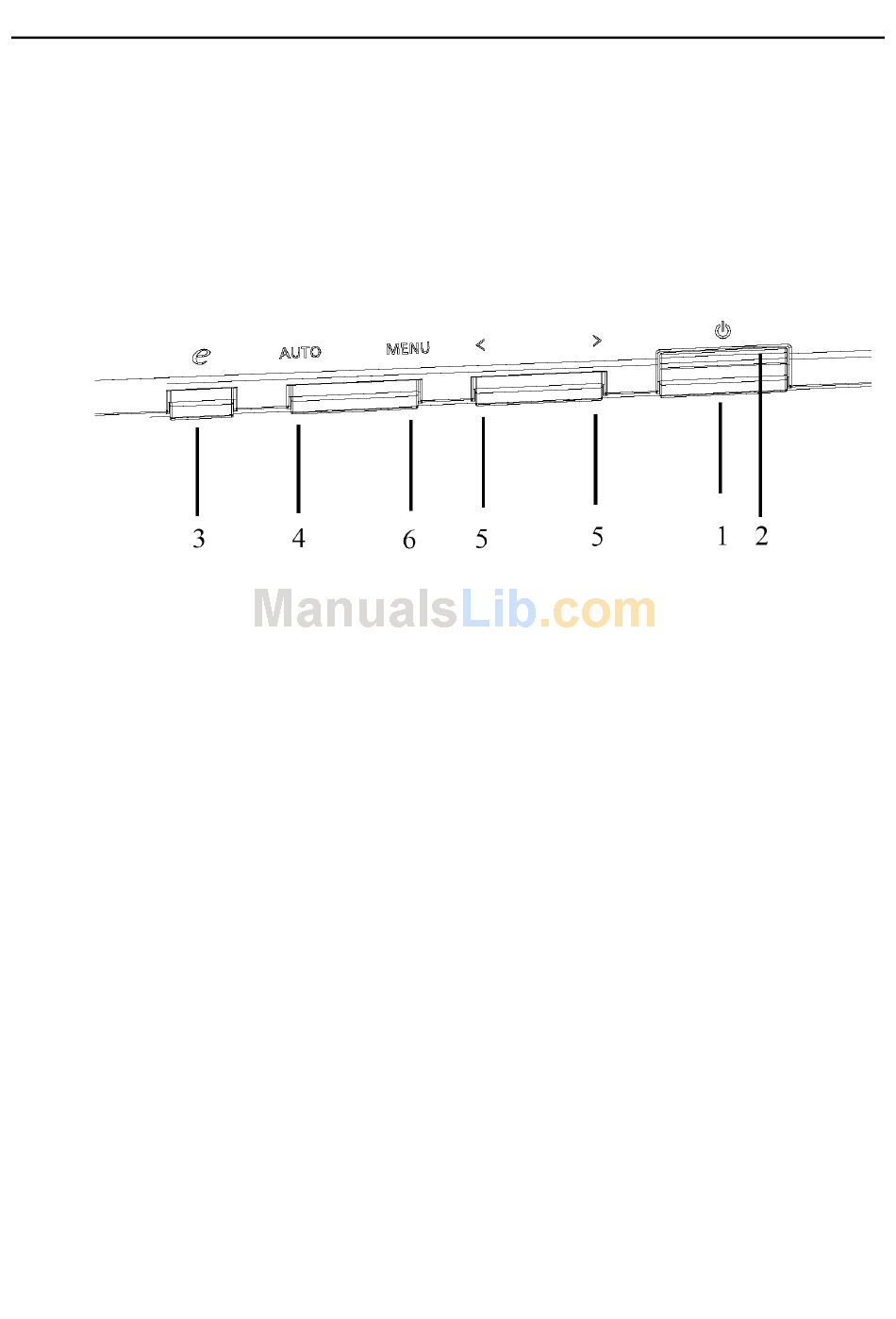

Front panel controls

1.Power Switch
2.Power LED
3.Empowering / Exit
4.Auto Adjust button /
Exit
5.< / >
6.MENU / ENTER
To turn ON or OFF the power.
Lights up to indicate the power is turned ON.
1) When OSD menu is in active status, this button will act as EXIT-KEY (EXIT
OSD menu).
2) When OSD menu is in off status, press this button to select scenario mode.
3) When exit eColor OSD, it will activate the Auto Adjustment function
1) When OSD menu is in active status, this button will act as EXIT-KEY (EXIT
OSD menu).
2) When OSD menu is in off status, press this button for 2 seconds to activate the
Auto Adjustment function .The Auto Adjustment function is used to set the Hpos,
Vpos, Clock and Focus.
Press < or > to select the desired function. Press < or > to change the settings of
the current function.
Activate OSD menu when OSD is OFF or activate/de-activate adjustment
function when OSD is ON.
