Summary of Contents for Telemax TXGCDIG
-

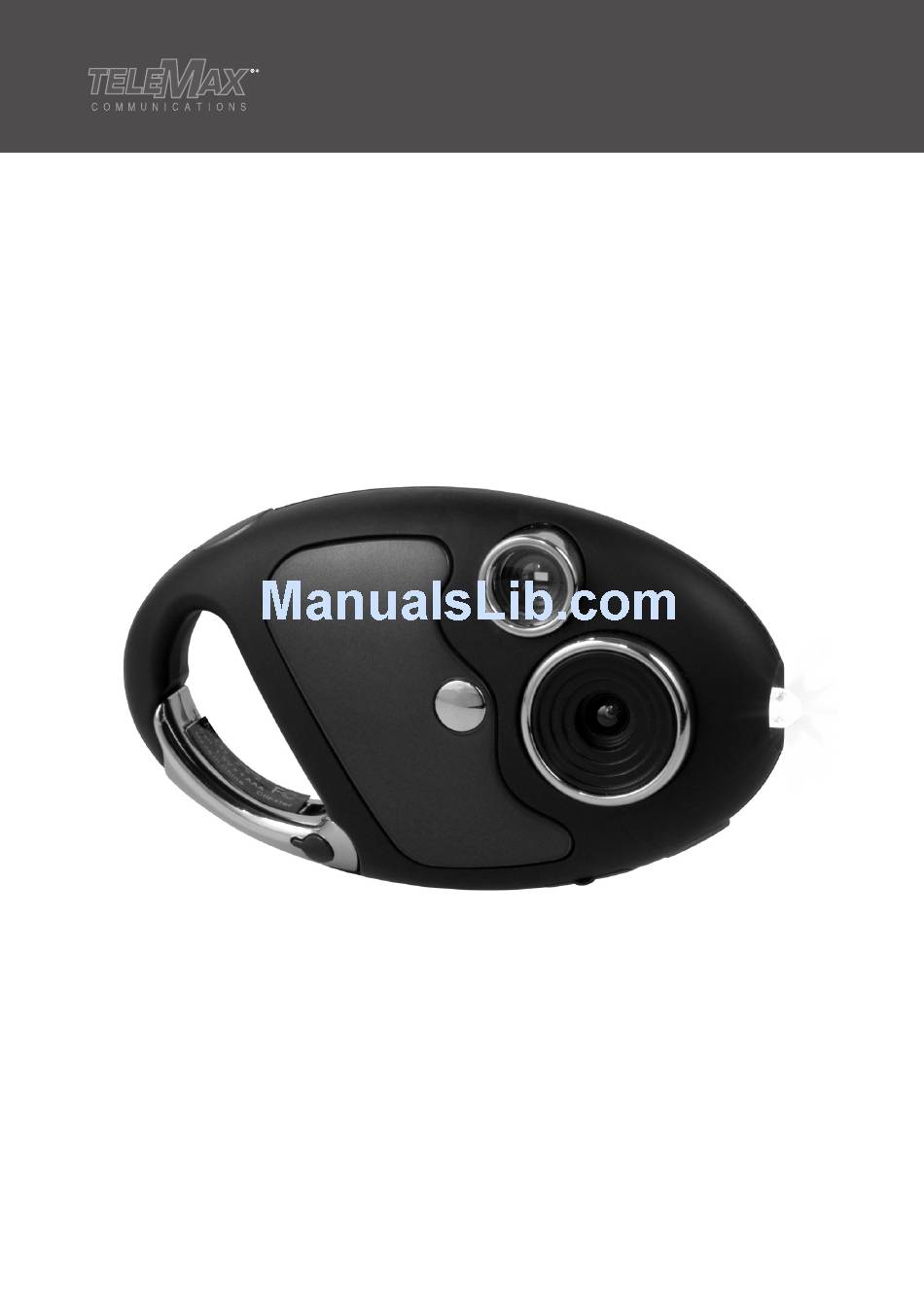

Page 1: User Manual
4-in-1 Digital Carabiner Camera TXGCDIG User Manual... -
Page 2: System Requirement
Thank you for purchasing the 4-in-1 Carabiner Digital Camera. This camera takes still photos, video, and can be used as a PC web-cam. This camera is equipped with a 2Mb built-in SDRAM. Through the USB cable provided, you can download the captured images to your computer, or use the camera as a web-cam. -
Page 3: Installation Of Driver
INSTALLATION OF DRIVER 1. Make sure the camera is not connected to your computer. Load the software CD to your PC 2. Click <Install Camera Driver> and follow the step-by-step instructions to complete installation. After successful installation of driver, restart your computer. A “Dual Mode Camera” folder will appear on your desktop. -
Page 4: Self-Timer Mode
SELF-PORTRAIT FEATURE 1. On the front of the camera adjacent to the lens is a small aiming mirror. 2. Hold camera at arms length and use mirror to center your portrait. 3. Press the “Shutter” button to take image. SELF-TIMER MODE 1. Press MODE button until the data LCD displays 2. Press “Shutter” button within 5 seconds to enter the 10-second time set. The digital camera will beep for every second. 3. After 10 seconds, the camera will take the picture. VIDEO MODE 1. Press the mode button until the data LCD displays 2. Press and hold the “Shutter” button within 5 seconds, for continuous video capture. -
Page 5: Image Compression
DELETE LAST PHOTO 1. Press MODE button until the data LCD displays 2. Press the “Shutter” button within 5 seconds to delete the last photo. HI RESOLUTION/LO RESOLUTION The resolution governs how much detail is captured in each picture. The default resolution is Hi. 1. To select the “Lo” resolution setting, press MODE button until the data LCD displays 2. Press the “Shutter” button within 5 seconds to change resolution. IMAGE COMPRESSION In order to better utilize the built-in memory, the 4-in-1 Carabiner Digital Camcorder carries a File Compression function. - Page 6 DOWNLOAD, SAVING, TRANSFERRING & ADJUSTING IMAGES When the photo memory is full, the operation will stop and the “FL” symbol will appear. To save your images, you’ll need to download or transmit them to your computer. 1. Use the provided USB cable to connect the computer with the digital camera.
-
Page 7: Using The Digital Camera As Pc Camera
USING THE DIGITAL CAMERA AS PC CAMERA 1. Click on the “Dual Mode Camera” folder on your computer desktop or under the Program Menu. Click on the “PC Cam” icon to open program. If the Digital Camera does not start preview automatically, go to “Options” on the menu bar and choose “Preview”... - Page 8 4. Go to “Options” on the menu bar and choose “Video Capture Filter” for image setting. Choose the desired level of “Brightness”, “Contrast”, “Saturation”, “Sharpness”, and “White Balance”. Click to exit. To return to default image setting, click “Default” and then “OK” or “Apply”. 5. Go to “Options” on the menu bar and choose “Video Capture Pin” to choose the resolution of the video that will be captured. Choose the desired “Frame Rate” and the desired “Color Space/ Compression” and “Output Size”. Click “OK” or “Apply” to confirm setting. Otherwise, click “Cancel” to exit. 6. Go to “Capture” on the menu bar and choose “Set Frame Rate” to set the desired “Frame per Second”...
- Page 9 7. Go to “Capture” on the menu bar and choose “Set Time Limit” to set time limit for the video that will be captured. Make sure the check box for the “Use Time Limit” is checked and enter the desired Time Limit. Click “OK” to confirm, click “Cancel” to discontinue the setting. 8. Go to “Capture” on the menu bar and choose “Start Capture” (the default saving location must be set). A pop-up window will appear requesting confirmation to proceed while showing the default saving location. Click “OK” to begin video capturing. 9. The Digital Camera will begin capturing video with the timer on the bottom of the program screen. When finished, go to “Capture” and choose “Stop Capture”...
-
Page 10: Using The Digital Camera As A Web-Cam
10. T o save the file in location other than the default location, go to “File” on the menu bar and choose “Save Captured Video As”. Choose the desired location and rename if necessary (be sure to include “.avi” after the file name), then click “Open”. USING THE DIGITAL CAMERA AS A WEB-CAM The digital camera supports most Webcam software applications such as Microsoft® or Yahoo® Messenger. Used with these software applications, the digital camera functions as a web-cam. -
Page 11: Camera Specifications
CAMERA SPECIFICATIONS Image Sensor: 300K Pixel CMOS sensor Internal Memory: 2Mb built-in SDRAM Modes: Digital video recording (no sound) Still photos PC Camera (web-cam) Resolution: 640 x 480 (VGA) 320 x 240 (QVGA) File Formats: 24-bit JPEG, AVl Storage Capacity: VGA: 26 images, 50 compressed QVGA: 79 images, 302 compressed AVI: ~20 seconds Status display: Monochrome LCD Display (data only) Interface: USB 1.1 Video Frame Rate: 12 fps (VGA), 10-12 fps (QVGA) Lens: Fixed; f=6.00 mm Focus: settings 40 cm~infinity (Normal) Aperture: F2.8 Power source: 1 x AAA battery (Not included) Self-timer: 10 seconds Viewfinder: Built-in Auto off system time: 30 seconds... -
Page 12: Warranty
This warranty gives you specific legal rights and you may have other rights which will vary from province to province. For product support please contact www.leiproducts.com or 1-800-449-3315. Custom Manufactured in China for/ Fabriqué en Chine spécialement pour LEI Electronics Inc., 18 Mollard Court, Unit 4 Barrie, Ontario, Canada L4N 8Y1 www.leiproducts.com *Telemax Communications is a registered trademark of LEI Electronics Inc.
