Summary of Contents for Acetech VOB500

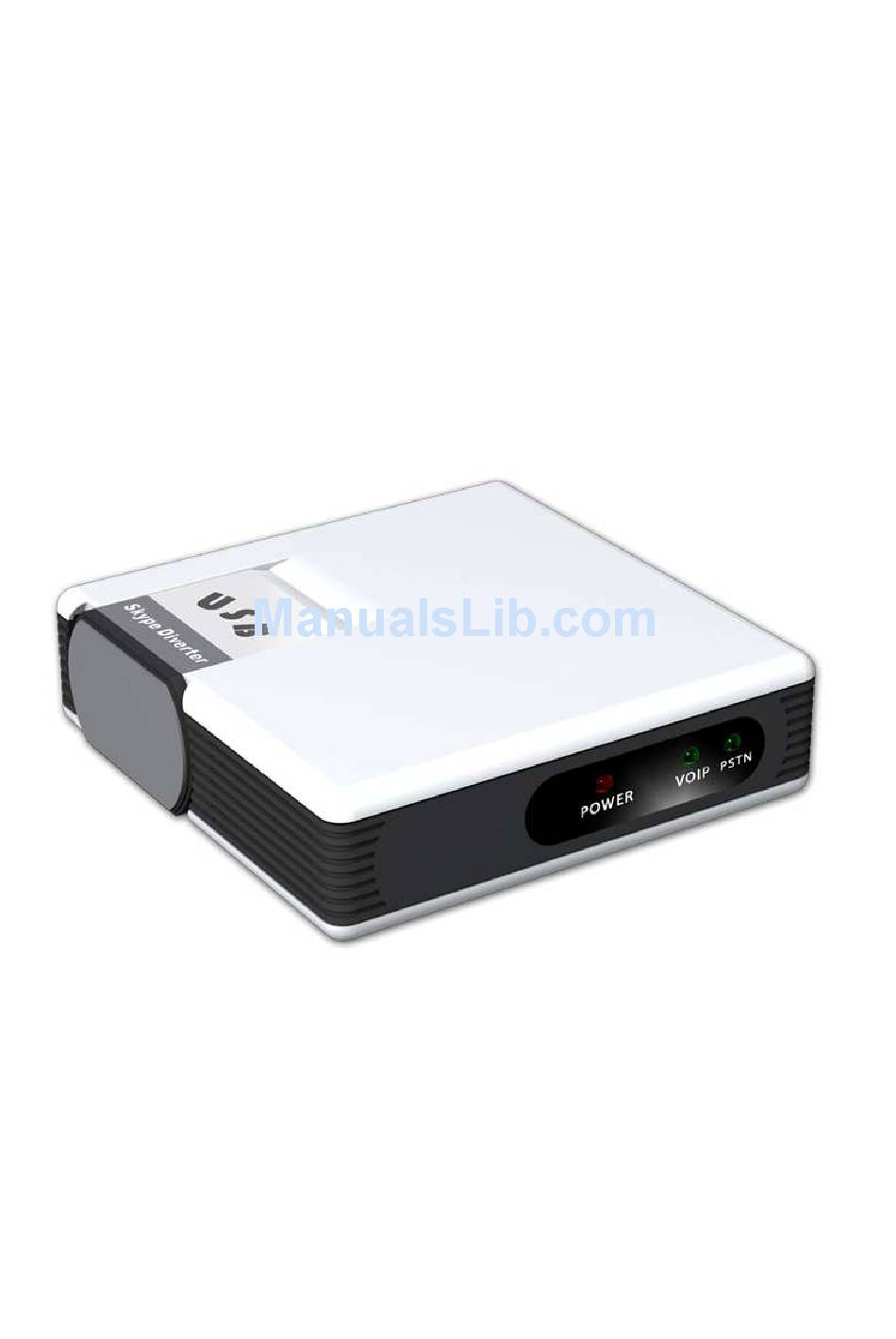

- Page 1 USB VoIP Adapter Quick Guide...
-
Page 2: Installation
Installation The following instructions will guide you to through the process of installing the Personal USB Adapter. STEP 1: If Skype™ is not already installed on your computer, visit http://www.skype.com and follow the instructions there to install Skype™. Verify that Skype™... - Page 3 hub. The USB Adapter MUST not be connected to a bus powered USB hub. STEP 3: You would then see following screen if your Skype is already running. If not, start your Skype program. Refer to STEP 1 for how to download the Skype program.
- Page 4 using a telephone cable as shown below STEP 5: Connect a telephone cable between the USB Adapter’s port “PSTN” and a wall jack as shown below. Note that this is only required for making regular phone calls or for Diverting Skype calls to your mobile (or other off-site) phone or for toll bypass applications.
- Page 5 is properly connected to the PC. When the USB Adapter program is not running, there is no phone in the system tray. USB Adapter LED PSTN LED VoIP LED Power LED Power LED: Indicating the USB Adapter is receiving power. VoIP LED: When the USB Adapter is switched to VoIP(Skype) network, it will be lit.
- Page 6 the light will be blinking. Both VoIP and PSTN LED xwill be lit when the USB Adapter is diverting call, or when the 3-way conferencing is enabled. Making and Receiving Calls You can continue to use the telephone handset connected to the USB Adapter to make and receive standard telephone calls as you used without any change.
- Page 7 Setting Skype Speed Dial Right click on the desired contact as shown below and select “Assign Speed-Dial” under Skype: Note: There are different dial tones for PSTN and VoIP/Skype. You can switch forward and back between PSTN and VoIP/Skype through pressing “*#*”...
