Artisan Home Furniture TORO-3200 Spare Parts & Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TORO-4000
R
with Ped 500
Adjustable
Pedestal Motor Drive
TORO
TORO
INSTRUCTION & SPARE PARTS MANUAL
2013.02
artisan
artisan
TORO-3200
with Ped 500
Adjustable
Pedestal Motor
Drive
-
3000, TORO
-
3000, TORO
TORO 4000
TORO 4000
and
and
TORO-3000
with Ped 500
Adjustable
Pedestal Motor
Drive
TORO-3200
BT
Bench Top
Self Contained
Transportable
Heavy Duty Stitcher
-
-
Series
Series
u
u
TORO-4000
Pedestal Motor Drive
3200
3200
LA-25
with Ped-600
Adjustable

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TORO-3200 and is the answer not in the manual?

Questions and answers

Related Manuals for Artisan Home Furniture TORO-3200

Summary of Contents for Artisan Home Furniture TORO-3200

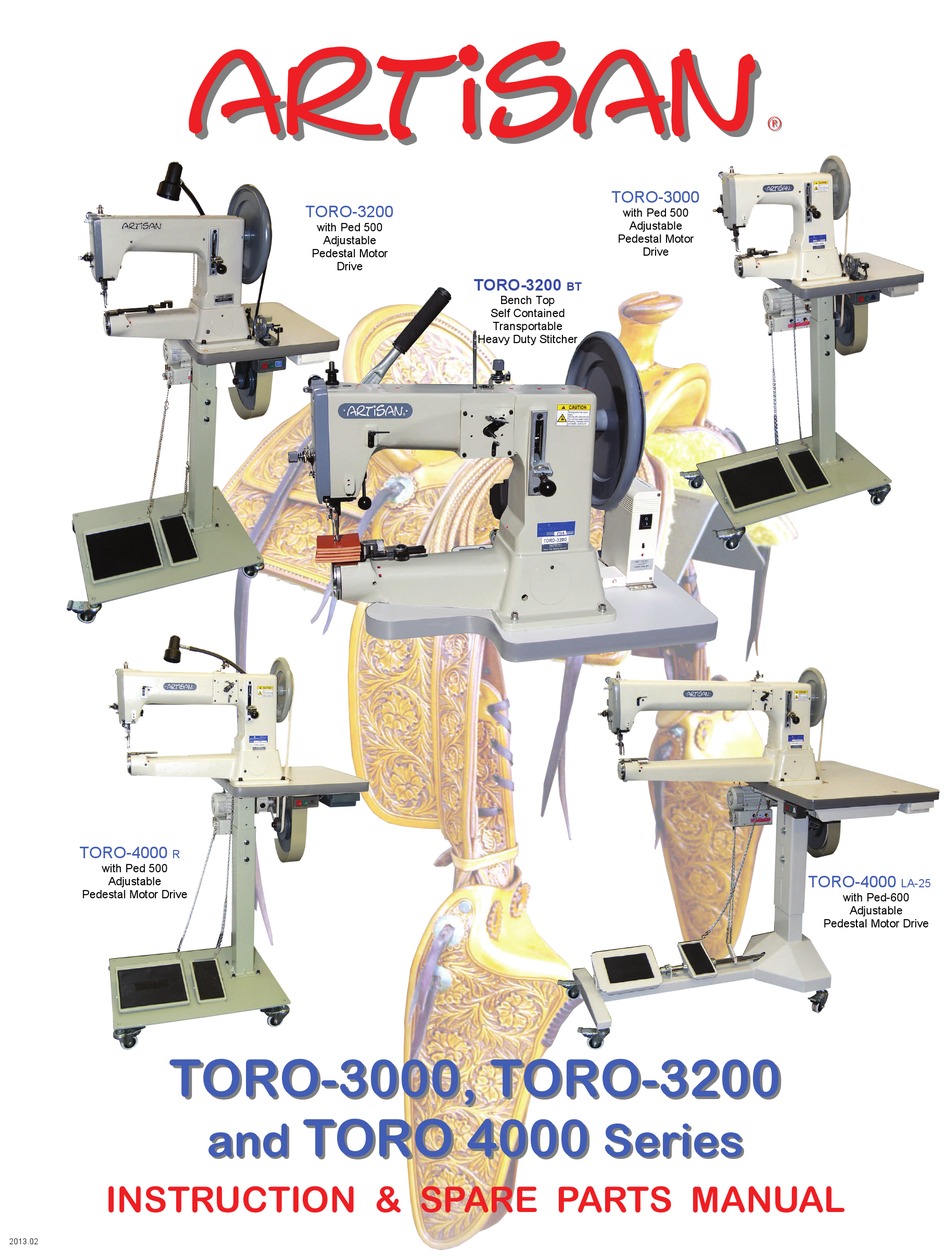

  • Page 1 TORO-3000 TORO-3200 with Ped 500 Adjustable with Ped 500 Pedestal Motor Adjustable Drive Pedestal Motor Drive TORO-3200 Bench Top Self Contained Transportable Heavy Duty Stitcher TORO-4000 with Ped 500 TORO-4000 Adjustable LA-25 Pedestal Motor Drive with Ped-600 Adjustable...

  • Page 2: Table Of Contents

    28, 29. KNEE LIFTER COMPONENTS ADDITIONAL INSTRUCTIONS FOR TORO-3200 BT and TORO 4000 BT Located on Pages 33 and 35 We Strive to Continuously Improve our Machinery. Specifications and features are constantly being updated. Your New TORO Stitcher may look slightly different then as shown in this pamphlet.

  • Page 3: Specifications

    TORO-3000, TORO-3200 and TORO-4000 Extra Heavy Duty Cylinder Bed Lockstitch Compound Needle Feed Walking Foot Stitching Machines. CAUTION ….. READ BEFORE OPERATING THIS MACHINE... Lubricate the Stitcher before operating! Keep your hands and all clothing away from Confirm you are plugging the electric motor the machine when pushing the button to turn into the correct rated voltage.
  • Page 4 Normal stitching operation causes dust, lint, and dirt to build up around the moving parts of your TORO-3000, 3200 and 4000. Periodically clean around all the moving parts of the machine. Pay special attention to keeping the shuttle, shuttle race, and throat plate area clean. Simply wipe off the build-up with a clean cloth or blow off the dirt with compressed air.
  • Page 5 Remove the bobbin being careful to leave the light weight beehive Place your open left hand under the Shuttle area to catch the bobbin. shaped bobbin push spring inside the bobbin case. of a TORO-3200 and TORO-4000...
  • Page 6 1. Pull approximately 3 to 4 inches of thread off the bobbin and insert the new bobbin into the bobbin case so that when turning the bobbin turns counter-clockwise. (A) of the bobbin case 2. Pass the thread through the slot and pull the thread until the thread passes under the bobbin thread tension adjusting spring and rests in the groove as pictured.
  • Page 7 To Adjust the Stitch Length 1. Turn the adjuster nut (1) counter-clockwise and push the handle in a downward direction for a longer stitch length. 1. For a shorter stitch length raise the handle and then turn the adjuster nut (1) to lock in the handle.
  • Page 8 1. The outside presser foot pressure is adjusted by loosening nut (3). 2. To increase the holding capacity of the Outside presser foot, turn the regulator (1) clockwise. 3. To reduce the holding pressure, turn the regulator Counter-clockwise. Be care not to fully unscrew the regulator.

  • Page 9: Thread Tension

    Needle Needle Shuttle Hook Guard Point Shuttle Hook Race Carrier Frame Shuttle Hook Assembly Shuttle Hook with Bobbin Case Driver A. Complete Oscillating Shuttle Hook Assembly with Bobbin Case. B. Shuttle Hook Point. C. Bobbin Thread Tension Adjusting Screw. D. Bobbin Thread Tension Adjusting Locking Set Screw.
  • Page 10 Shuttle Hook Point Needle Guard Shuttle Hook Needle Point Needle Shuttle Hook Point Guard to the Needle Relationship Shuttle Hook as viewed from behind Race the needle on the rear left side, and from left to right. Shuttle Hook Point Shuttle Hook Point to the Needle Relationship Shuttle Hook...

  • Page 11: Walking Foot Height Adjustment

    WALKING FOOT HEIGHT ADJUSTMENT To Adjust the height of the walking feet: 1. Loosen the nut (6) and move the lever (7) up to Decrease the walking foot height. (B) 2. Move the lever (7) down in slotted bracket to Increase the walking foot height. (A) 3.
  • Page 12 Adjusting the Needle to Shuttle Position 1. Loosen the small Allen head screw Hand Wheel Then lightly snug the screw. Side Loosen the two 6 mm Allen head screws 3. With the stitch length lever set to the “0” position, turn the hand wheel in a counter-clockwise rotation and place the needle bar to the “Bottom-Dead-Center”...
  • Page 14 794 (D or S) NM 200, 25 Needle The above adjustments are for stitching normal fabrics and do not apply to stitching heavy leathers for the TORO-3000 or 4000 R. Leather machines are specially adjusted for each application. The standard adjustments are only a starting point.
  • Page 15 1. The thread breaks or 1. A burr, cut, ruffness, or other imperfection 1. Clean off and remove the flaw with a fine tends to fray and was created on the needle plate, shuttle, India stone or other abrasive. then break. shuttle race or presser foot by a broken or 2.
  • Page 16 SUGGESTED REFERENCE GUIDE FOR artisan TORO 3000, 3200, 4000 , 4000 LEATHER STITCHING MACHINES Recommended Schmetz brand Needle 1. Sewing on Thin Leathers of less than 8 oz. or up to1/8”: Use Schmetz brand Needles number 794 D or S, NM:160 Size 23, Canu 53:20MF1. “D”...

  • Page 17: Spare Parts List

    Spare Parts List artisan TORO-3000, TORO-3200 TORO-4000...

  • Page 18: Frame And Cover Components

    1. FRAME AND COVER COMPONENTS...

  • Page 19: Main Shaft Components

    2. MAIN SHAFT COMPONENTS...
  • Page 20 Page 20.

  • Page 22: Presser Bar Components

    4. PRESSER BAR COMPONENTS...
  • Page 23 OUTSIDE PRESSER FOOT WITH TEETH FOR FABRICS 43423 Center Grover Leather Presser Foot 43424 Left Side Leather Presser Foot 43425 Right Side Leather Presser Foot 43426 Double Toe Leather Presser Foot 43405 Double Toe Presser Foot with Teeth for Fabric or Webbing (aka Blanket) 43406 Center Presser Foot with Teeth for Fabric or Webbing (aka Blanket) 43424S...

  • Page 26: Hook Driving Shaft Components

    6. Hook Driving Shaft Components Shuttle Hook Parts A. GS 184 Locking Set Screw. B. GS 164 Thread Tension Adjusting Screw. C. GW 113 Thread Tension Spring. D. GW 114 Bobbin Push-out Spring. E. GN 115 Bobbin Case Body. GN 112 Shuttle Body.
  • Page 27 OSCILLATING SHUTTLE HOOK SPACER...
  • Page 30 8. BOBBIN WINDER AND THREAD GUIDE COMPONENTS...
  • Page 33 TORO-3000 Bobbin Winder Instructions: 1. Place the bobbin on the spindle. Align the small pin on the spindle with the hole or slot in the bobbin. Insert the thread into the eye above the bobbin winder tension. Pull the thread between the two tension discs in a clockwise fashion. 4.
  • Page 35 TORO-3200 BT and TORO-4000 BT...
  • Page 36 artisan TORO-3000, 3200 and 4000 T HREADING Insert the thread through the upper wire thread guide (A), then around the top tension (auxiliary tension) in a clockwise rotation between the 2 disks, one revolution and back up to the same wire thread guide (A).

This manual is also suitable for:

Toro-3000Toro-4000 rToro-4000 la-25
