Raptor E820 Instruction Manual

1490
SPECIFICATION / 規格表

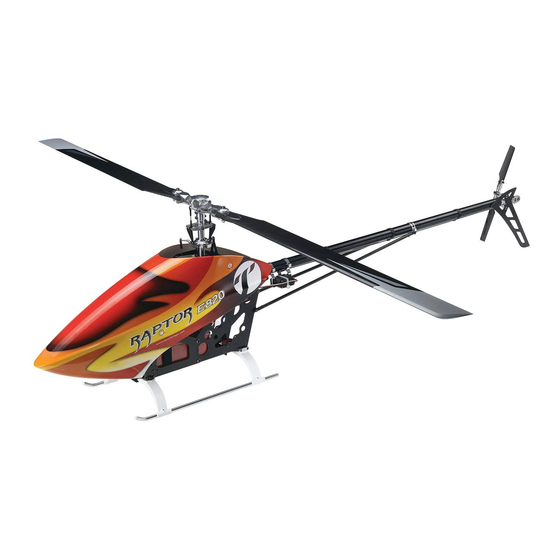

Description / 產品名稱 RAPTOR E820
Item No. / 產品料號 4793
Power / 動力 Electric Motor
Rotor Head / 主旋翼頭型式 Flybarless
Length / 總長 1490 mm / ( 58.66" )
Width / 總寬 221mm / ( 8.7" )
Height / 總高 432 mm / ( 17.0" )
Length / 長度 813 mm / ( 32" )
Main Rotor (Req'd)
主旋翼 Diameter / 迴轉直徑 1809 mm / ( 71.2" )
Length / 長度 115 mm / ( 4.52" )
Tail Rotor (Req'd)
尾旋翼 Diameter / 迴轉直徑 300 mm / ( 11.8" )
Main Gear / Pinion 主齒盤 / 驅動齒數 111T (standard), 115T (option) / 11T, 12T
10.09 (11T) : 1 : 4.67
Gear Ratio (E:M:T) / 齒輪比
9.25 (12T) : 1 : 4.67
Full Equipped Weight w/o Battery 3670-gram
(129.5 oz)
全配重量不含電池
Max. Battery on Board
215 x 62 x 105 mm (8.5 x 2.4 x 4.1")
電池最大承載量
Battery: 14S (7S x 2) 5.0~6.0Ah
Battery C-rate: Above 30C
Recommended Power Configuration
ESC:160~200A
動力搭配建議
Motor:380~480KV
Est. Rotor rpm:1900
FEATURES / 特色
1. Latest fiberglass canopy design w/sleek scheme
2. Collective pitch range +/-15 degrees
3. Reinforced thicker rotor grip plate
4. Carbon tail boom support
5. Innovative quick calibration system
6. Lightened metal main shaft bearing blocks
7. 15mm hardened hollow steel main shaft
8. 2mm aerospace grade true carbon side frame
9. Ultra thick helical main gear 111T(115T OP) V.S. 11T/12T Pinion(8mm)
10. Lite yet rigid one-piece machined AL tail case
11. Precisely and heavy-duty tail rotor system
12. 8mm torque tube driven w/efficient helical bevel tail gear
13. Recommend approx. 400KV outrunner max. O.D. 64mm
14. Quick-release battery tray fits two 7 cells Lipo battery packs
15. Adjustable one-piece U type pinion bearing block w/motor mount(Applicable to a 8mm
diameter motor shaft)
16. Adjustable metal rudder servo mount for better precise tail control
17. Lightweight and rugged landing skid for low center of gravity
18. Easy to install tail rotor rod guide
19. Lightweight one-piece metal tail boom support bracket
20. Lengthened FBL rotor grip post for precisely cyclic pitch control
21. All metal servo horns and control arms assembly eliminate the need for upgrades
22. Optional carbon battery tray available
221
1. 原廠塗裝完成高彩度玻璃纖維機頭罩
2. 主旋翼攻角最大可達+-15度
3. 強化加厚型主旋翼轉座搖臂
4. 碳纖維尾管支撐架
5. 原創中立點快速校正系統
6. 輕量化主軸軸承座
7. 15mm熱處理強化主軸
8. 高強度2mm碳纖維側板
9. 超厚111T螺旋主齒盤(115T選配),並配置兩顆8mm馬達齒(11T與12T)
10. 一體成型輕量化高強度金屬尾座
11. 高精度全金屬尾旋翼系統
12. 8mm尾傳動軸並搭配高負載尾螺旋傘齒
13. 適用馬達外徑可達64mm,建議使用400KV以獲得充足動力
14. 原創電池快拆機構,可容納2組7CELLS鋰電池
15. 一體式U型馬達與驅動齒輪固定座(可適用8mm馬達軸)
16. 可調式尾舵伺服機固定座提供更精準的尾部控制性
17. 高強度輕量化低重心腳架組
18. 快拆式尾舵拉桿導環
19. 一體成型輕量化金屬尾管支撐固定座
20. 加長型主旋翼轉座支柱提供更精準的螺距控制
21. 配備金屬伺服機舵片及控制臂組，無需額外進行升級改裝
22. 可換裝碳纖維電池座(選配)
JK6173
INSTRUCTION MANUAL INSTRUCTION MANUAL
組 裝 說 明 書
No.4793
This radio control model is not a toy! Before beginning assembly, please read this
manual thoroughly.
The contents are subject to change without prior notice due to product improvements
and specification changes.
本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。
本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原因，我們
將保留產品規格變更權利，不再另行通知使用者。
E820
3D
