Summary of Contents for Murphy HelmView 450

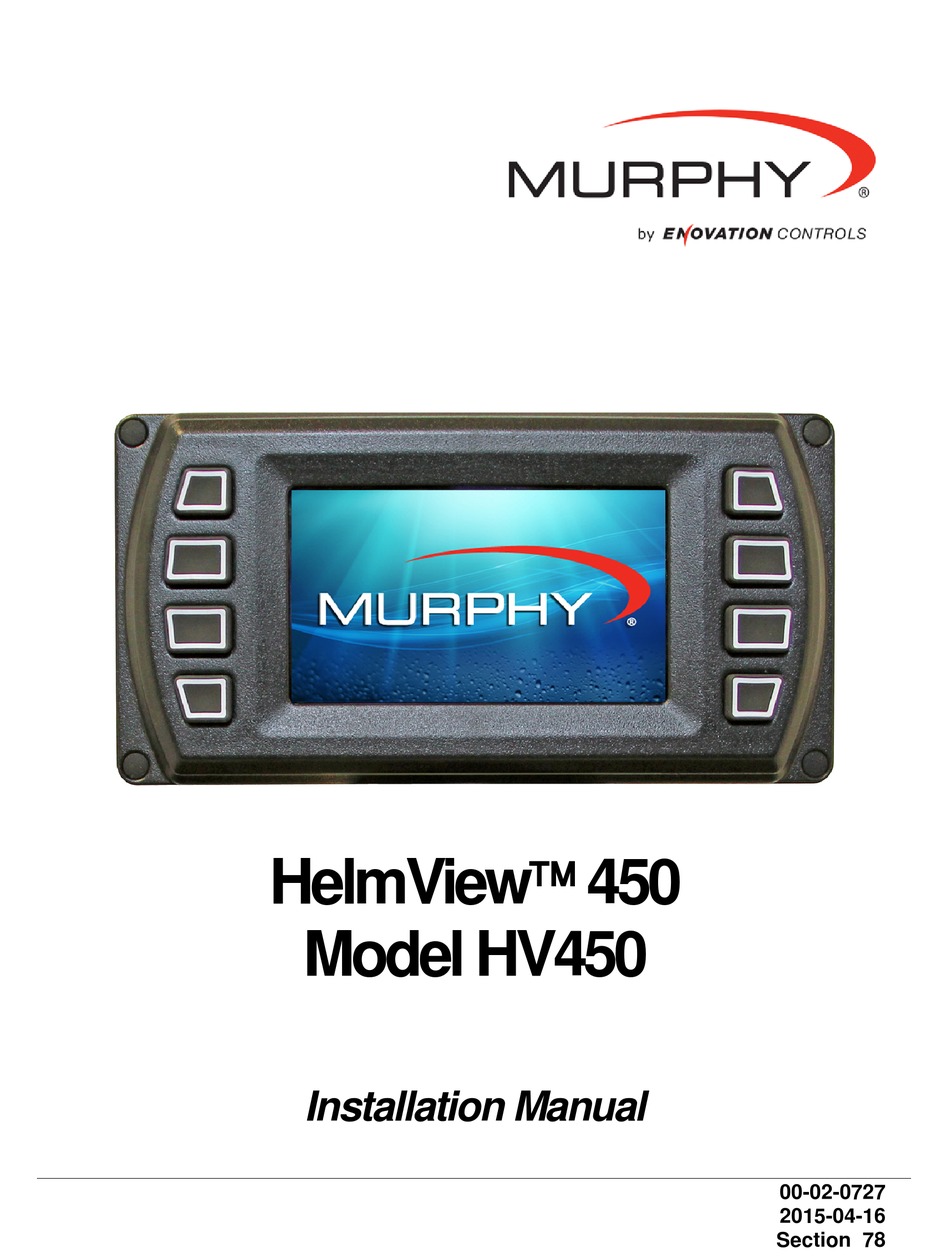

- Page 1 HelmView 450 Model HV450 Installation Manual 00-02-0727 2015-04-16 Section 78...
- Page 2 In order to consistently bring you the highest quality, full-featured products, we reserve the right to change our specifications and designs at any time. The latest version of this manual can be found at www.fwmurphy.com. Please read the following information before installing. BEFORE BEGINNING INSTALLATION OF THIS MURPHY PRODUCT: • Read and follow all installation instructions.
-
Page 3: Table Of Contents
Table of Contents Hardware Installation ........................1 Inspecting Package Contents ..................1 Dash-Mounted Installation ..................1 Wiring Instructions ........................4 Single Engine ......................4 NMEA Gages .......................6 Dual Engine Gages .....................7 USB Wiring ........................8 Analog Video ......................9 No Video Wiring ......................10 Pin Specifications for Deutsch DT04-6P Style Connections ........11 Specifications .......................... - Page 4 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 5: Hardware Installation
NOTE: When using the paper template from the manual, please be aware that if you downloaded this document from the FW Murphy website, the pdf file may not automatically print to scale. When submitting the file for print, you will need to select None for Page Scaling. - Page 6 The HV450 has a matching bolt pattern for the RAM Diamond base with 9/16” ball (P/N RAM-A-238). Aesthetics Murphy offers a set of plugs for the gimbal-mount application to cover the mounting holes for aesthetic purposes: • Part # 78000814: Kit, Mounting, Plug, HV450...
- Page 7 Dimensions for Installation Section 78 00-02-0727 2015-04-16 - 3 -...
-
Page 8: Wiring Instructions
Wiring Instructions The following illustrations are examples of various typical quick-connect options for setup. Wiring harnesses are sold separately. WARNING: Failure to install the unit per the specified wiring diagrams may cause damage to the unit. DO NOT connect power to the video ground. Warranty is void for damage caused by incorrect wiring. - Page 9 PVA Gages The pinout is as viewed from the back of mating plug. WARNING: Failure to install the unit per the specified wiring diagrams may cause damage to the unit. DO NOT connect power to the video ground. Warranty is void for damage caused by incorrect wiring. Section 78 00-02-0727 2015-04-16...
-
Page 10: Nmea Gages
NMEA Gages The pinout is as viewed from the back of mating plug. Section 78 00-02-0727 2015-04-16 - 6 -... -
Page 11: Dual Engine Gages
Dual Engine Gages The pinout is as viewed from the back of mating plug. NOTE: Port B and C connectors are keyed differently than Port A and D connectors to ensure proper connection. Section 78 00-02-0727 2015-04-16 - 7 -... -
Page 12: Usb Wiring
USB Wiring The pinout is as viewed from the back of mating plug. Section 78 00-02-0727 2015-04-16 - 8 -... -
Page 13: Analog Video
Analog Video The pinout is as viewed from the back of mating plug. WARNING: Failure to install the unit per the specified wiring diagrams may cause damage to the unit. DO NOT connect power to the video ground. Warranty is void for damage caused by incorrect wiring. -
Page 14: No Video Wiring
No Video Wiring The pinout is as viewed from the back of mating plug. WARNING: Failure to install the unit per the specified wiring diagrams may cause damage to the unit. DO NOT connect power to the video ground. Warranty is void for damage caused by incorrect wiring. Section 78 00-02-0727 2015-04-16... -
Page 15: Pin Specifications For Deutsch Dt04-6P Style Connections
Pin Specifications for Deutsch DT04-6P Style Connections The pinout is as viewed from the back of mating plug. WARNING: Failure to install the unit per the specified wiring diagrams may cause damage to the unit. DO NOT connect power to the video ground. Warranty is void for damage caused by incorrect wiring. -
Page 16: Specifications
Specifications Electrical Display Bonded 4.3” color transmissive TFT LCD Resolution WQVGA, 480 x 272 pixels, 16-bit color Aspect Ratio 16:9 Orientation Landscape Backlighting LED, 500-650 cd/m2 (30,000 hr lifetime) Microprocessor Freescale iMX35, 32bit, 532 MHz Operating System QNX Real Time Flash Memory 256 MB (expandable to 8GB) 128 Mb DDR2 SDRAM... -
Page 17: Addendum
Addendum How to Install a Configuration From a USB Drive for the HV450 1. READ ALL INSTRUCTIONS BEFORE CONTINUING! 2. Power OFF the display unit. 3. Insert USB drive with the configuration file into USB port. 4. Press and hold the top left button (continue to hold). 5. - Page 18 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 20 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 22 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 23 THIS PAGE INTENTIONALLY LEFT BLANK...
