Microtech RIC 10 Operation Manual

Mini ric receiver-in-canal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
mini RIC
(RIC 10)
receiver-in-canal
OperatiOns ManuaL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RIC 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Microtech RIC 10

Summary of Contents for Microtech RIC 10

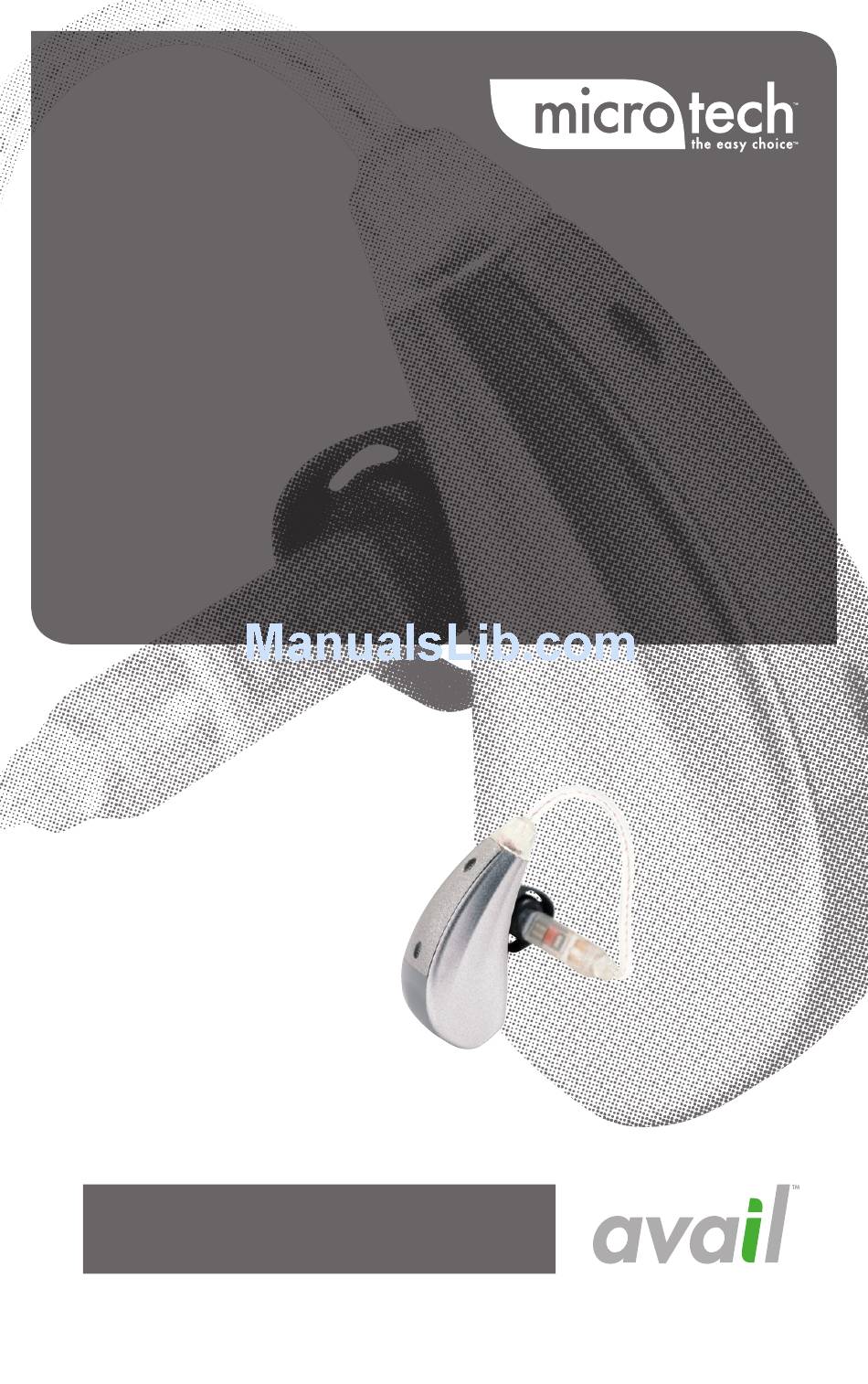

  • Page 1 RIC (RIC 10) receiver-in-canal OperatiOns ManuaL...

  • Page 3: Table Of Contents

    Table of Contents Overview RIC 10 Overview ..............4 Preparation Batteries ................5 Battery Indicators ............... 7 Tamper Resistant Battery Compartment ......7 Insertion and Removal ............9 Operation On & Off ................11 Volume Control ............... 11 Multimemory ..............12 Directional Settings ............

  • Page 4: Ric 10 Overview

    RIC 10 Overview Features, Controls and Identification Your hearing system controls include: 1. Hearing Instrument 8. Location of manufacturer’s name 2. Cable and model name 3. Receiver 9. Location of left/right side 4. Microphone receiver indicator 5. Multifunction Button 10. Instant Fit Earbud 6.

  • Page 5: Preparation

    Preparation Batteries Your hearing system uses a battery as its power source. This battery size can be identified by the yellow (10) code on the packaging. To insert or replace the battery: 1. Use the nail grip on the battery door. 2.
  • Page 6 Preparation...

  • Page 7: Battery Indicators

    Preparation Battery Indicators An indicator will sound when the battery voltage is low. You have approximately 5 minutes* to replace the battery. An indicator will sound just before the battery stops working. * Actual time between low battery indicator and shut down will vary depending on environmental noise levels and brand of battery used.
  • Page 8 Preparation Helpful Hints • NEVER FORCE THE BATTERY DOOR SHUT; this could result in serious damage; if the door will not close securely, check that the battery is inserted correctly • Do not open the battery door too far or damage is likely to occur • Dispose of used batteries immediately in the proper waste or recycling container • Because batteries can vary in size and performance, your hearing care professional is your best source for lifespan estimates and verification that you are using the proper size and type Warnings...

  • Page 9: Insertion And Removal

    Preparation Insertion and Removal To insert the earbud or eartip: 1. Hold the cable at the bend in front of the receiver with your thumb and forefinger. Gently insert the receiver into your ear canal. 2. Carefully place the hearing instrument behind your ear, wrapping it over the top of your ear.

  • Page 10: Helpful Hints

    Preparation Helpful Hints • Minor irritation and inflammation may occur as your ear becomes accustomed to having an object in it; if so, please contact your hearing care professional. • If an actual allergic reaction occurs, alternative earmold materials are available; contact your hearing care professional. • Severe swelling, discharge from the ear, excessive wax, or other unusual conditions warrant immediate consultation with a physician.

  • Page 11: Operation

    Operation On & Off To turn ON: Insert a battery and completely close the battery door. To turn OFF: Open the battery door until the battery is no longer touching the battery contacts. Your instrument has a Power-On delay and may require a few seconds to power on.

  • Page 12: Multimemory

    Operation Multifunction Button - Volume Control Your hearing system uses the button to control volume. Press then release the button until the desired volume level is reached. Each press/release changes the volume one increment. Volume Settings Volume Level Tone Level 5 (More volume) Five beeps plus tone Level 4 Four beeps...

  • Page 13: Directional Settings

    Operation Directional Settings Your hearing system has directional microphones to help improve speech understanding in noisy situations. Ask your hearing care professional about your particular directional settings. Telephone Use Your hearing instruments are equipped with tools to help you effectively communicate on the telephone. Ask your hearing professional about your telephone solution.
  • Page 14 Operation Telecoil and Manual Switching Hearing instruments with a manual telecoil allow you to switch the devices to telephone mode when needed. Manually switched telecoils are activated by choosing the telecoil setting using the Multifunction button. General Telephone Use Some hearing instruments work best by holding the phone close to, but not fully covering your ear.
  • Page 15 Operation DISCLAIMER – Some hearing aid users have reported a buzzing sound in their hearing aids when they are using cell phones, indicating that the cell phone and hearing aid may not be compatible. According to the ANSI C63.19 standard (ANSI C63.19-2006 American National Standard Methods of Measurement of Compatibility Between Wireless Communications Devices and Hearing Aids), the...

  • Page 16: Hearing System Care

    Hearing System Care Instrument Care Do your best to keep your hearing instrument clean at all times. Heat, moisture and foreign substances can result in poor performance. • Use a cleaning brush or soft cloth to clean debris from around the switches, microphone, and battery compartment; inspect the receiver, earbud or eartip and Wax Guard regularly • Never use water, solvents, cleaning fluids or oil to clean your instrument Your hearing care professional can provide further...
  • Page 17 Hearing System Care Helpful Hints • When not wearing your hearing system, open the battery door to allow any moisture to evaporate • When not in use, remove the batteries completely; place your hearing system in the storage container and store: – In a dry, safe place – Away from direct sunlight or heat to avoid extreme temperatures –...

  • Page 18: Service And Repair

    Hearing System Care Service and Repair If, for any reason, your hearing system does not operate properly, do NOT attempt to fix it yourself. Not only are you likely to violate any applicable warranties or insurance, you could easily cause further damage. Should your hearing system fail or perform poorly, check the guide on the next page for possible solutions.

  • Page 19: Troubleshooting Guide

    Hearing System Care Troubleshooting Guide SYMPTOM POSSIBle SOlUTIONS CAUSeS Low battery Replace battery Blocked Clean or replace Wax earmold/tubing/ Guard as needed earbud Not Loud Enough Contact your hearing Hearing change care professional Clean both microphone Debris buildup and receiver with brush Low battery Replace battery Inconsistent...

  • Page 20: Tips For Better Communication

    Tips for Better Communication Your hearing care professional will recommend an appropriate schedule to help you adapt to your new hearing system. It will take practice, time and patience for your brain to adapt to the new sounds that your hearing system provides. Hearing is only part of how we share thoughts, ideas and feelings.

  • Page 21: For Your Family And Friends

    Tips for Better Communication • Develop realistic expectations of what your hearing instruments can and cannot do • Better hearing with hearing instruments is a learned skill combining desire, practice and patience For Your Family and Friends Your family and friends are also affected by your hearing loss. Request that they: • Get your full attention before beginning to speak • Look at you or sit face-to-face in a quiet room...

  • Page 22: Fda Information

    FDA Information Required Information The following additional information is provided in compliance with U.S. Food and Drug Administration (FDA) regulations: WARNING TO HEARING AID DISPENSERS. A hearing aid dispenser should advise a prospective hearing aid user to consult promptly with a licensed physician (preferably an ear specialist) before dispensing a hearing aid if the hearing aid dispenser determines through inquiry, actual observation, or review of any other available information concerning...
  • Page 23 FDA Information The audiologist or hearing aid dispenser will conduct a hearing aid evaluation to assess your ability to hear with and without a hearing aid. The hearing aid evaluation will enable the audiologist or dispenser to select and fit a hearing aid to your individual needs. If you have reservations about your ability to adapt to amplification, you should inquire about the availability of a trial-rental or purchase-option program.

  • Page 24: Limited Warranty

    (30) days of discovering the defect. There will be no cost to you for MicroTech’s repair or replacement of the instrument itself, but the hearing professional may charge a fee for services he or she provides.
  • Page 25 DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES: THE PURCHASER SHALL NOT BE ENTITLED TO RECOVER FROM MICROTECH ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES RESULTING FROM ANY DEFECT IN THE HEARING INSTRUMENT, INCLUDING BY WAY OF EXAMPLE ONLY, EXPENSES TO DELIVER THE HEARING INSTRUMENT TO AN AUTHORIZED HEARING PROFESSIONAL, HOTEL ROOMS, OR LOST WAGES. THIS EXCLUSION...
  • Page 26 Notes...
  • Page 27 Notes...
  • Page 28 6425 Flying Cloud Drive 800.745.4327 Eden Prairie, MN 55344 www.mthearing.com © 2011 MicroTech Hearing Technologies All Rights Reserved 85018-004 8/11 BKLT0263-00-EE-MT Rev. A 0086...
