Summary of Contents for W Box 0E-HDMISW4X1

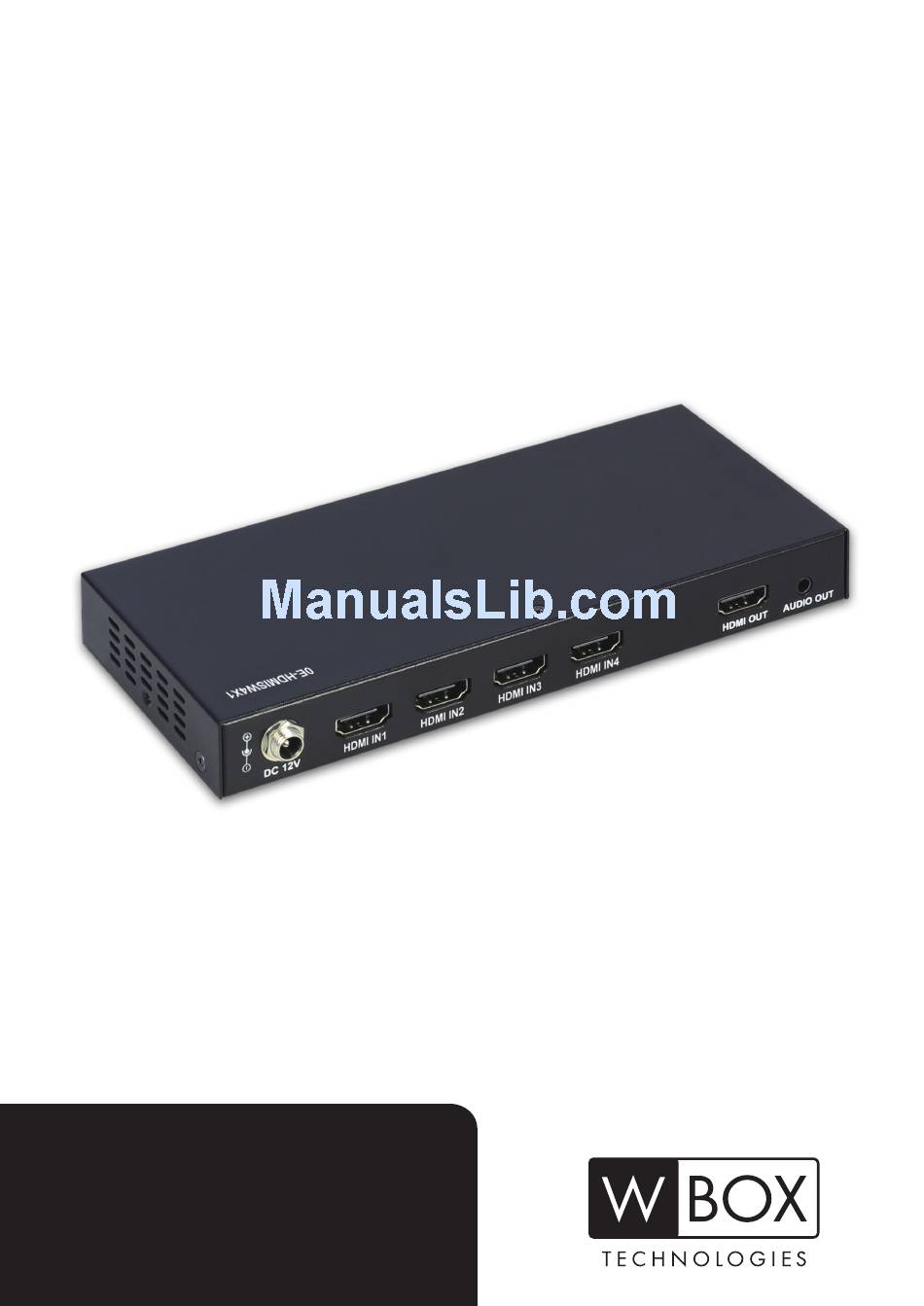

- Page 1 4K UHD HDMI SWITCHER 0E-HDMISW4X1...
- Page 2 Introduction Congratulations and thank you for purchasing W Box Technologies 0E-HDMISW4X1. 0E-HDMISW4X1 is a 4 by 1 4K2K@30Hz HDMI switcher with CEC control, a perfect solution for managing multiple sources. It provides four inputs for direct connection of HDMI devices, which gives you a high performance connection between four sources and a display without signal loss.
-
Page 3: Package Contents
Supports stereo audio output Package Contents Before you start the installation of the matrix, please check the package contents. 1 x 0E-HDMISW4X1 Main Unit 1 x 12V 1A Power Supply 1 x IR Remote Control Handset ... - Page 4 Panel Front Panel ID Name Description Input LED The selected input source LED will be on Press this button to select the input Select button source Power LED Indicates the power status of switcher IR receive Accepts the remote control signal window Rear Panel ID Name...
-
Page 5: Ir Remote Handset
IR Remote Handset The included Remote control handset supports turn on/off TV and select input source. -
Page 6: Installation Instructions
Installation Instructions 1. Connect HDMI source devices to the HDMI input ports via HDMI cables. 2. Connect an HDMI display to the HDMI out port via an HDMI cable. 3. Connect an audio system to the audio out port via an audio cable. -
Page 7: Troubleshooting
Troubleshooting W Box Technologies products are designed to function trouble-free. Most problems that occur are due to simple issues. If you have trouble, please check the list of simple fixes below. SWITCHER TROUBLESHOOTING PROBLEM SOLUTION POWER LED OFF Check the switcher is powered on. -
Page 8: Specification
Specification Video Input 4 x HDMI IN Output 1 x HDMI OUT Input/Output Signal Type HDMI: HDMI1.4 / HDCP1.4 720 x 480@30Hz/60Hz, 720 x 576@30Hz/60Hz, 1080 x 720@30Hz/60Hz, Input/Output Resolution Support 1920 x 1080@30Hz/60Hz, 3840 x 2160@30Hz, 4096 x 2160@24Hz Input Video Signal 0.5~1.0 Vp-p Maximum Pixel Clock... - Page 9 General Power Supply DC 12V 1A Power Consumption 5W (Maximum) 32° F to 113° F (0° C to 45° C) Operating Temperature 10% to 90%, non-condensing -4° F to 158° F (-20° C to 70° C) Storage Temperature 10% to 90%, non-condensing Human Body Model: ESD Protection ±...
- Page 10 Subject to the terms and conditions of this Limited Warranty, from the date of sale through the period of time for product categories specified in Section 1(b), ADI warrants its W Box Technologies products to be free from defects in materials and workmanship under normal use and service, normal wear and tear excepted.
- Page 11 does not itself warrant any non-ADI branded product and sells only on an as is basis in accordance with ADI’s terms and conditions of sale. b. Specific Warranties for product categories are as follows: Product Categories Warranty Period Soundbars 12 months Walk Through Metal Detectors 12 months Intrusion...
-
Page 12: Exclusion Of Liability
Product Categories Warranty Period Analog Cables Limited Lifetime B Connectors Limited Lifetime Bus Terminals Limited Lifetime Extension Cords Limited Lifetime HDMI Cables Limited Lifetime Jacks, Cords Intrusion Limited Lifetime Communication Accessories Patch Cables Limited Lifetime Patch Panels Limited Lifetime Raceway Conduit Limited Lifetime Wire Ties Limited Lifetime... - Page 13 models, bulletin, drawings, diagrams, engineering sheets, or similar materials used in connection with the Buyer’s order are for the sole purpose of identifying ADI’s products and shall not be construed as an express warranty or condition. suggestions by ADI ADI’s agents regarding use,...
- Page 14 hold ADI harmless against and defend ADI from, any and all suits, claims, demands, causes of action and judgments relating to damages, whether for personal injury or to personal property, suffered by any person, firm, corporation or business association, including but not limited to, Buyer’s customers and/or users of the products because of any failure of the products to detect and/or warn of the danger for which the goods were designed or any other failure of the products...
- Page 15 If any W Box Technologies product is found to be in good working order or such product’s inability to function properly is a result of user damage or abuse, the product will be returned to Buyer in the same condition as received and Buyer shall be responsible for any return freight changes.
- Page 16 ADI ne garantit que les produits portant la marque W Box Technologies qu’elle vend. Les autres produits portant une marque de tiers sont garantis par le fabricant tiers pendant une...
- Page 17 période définie par ce dernier, et ADI cède à l’acheteur ces garanties et uniquement les garanties offertes par ces fabricants tiers ou vendeurs à l’égard de produits ne portant pas ses marques. ADI ne garantit pas de produits ne portant ses marques et vend produits...
- Page 18 Catégories de produits Période de la garantie Système d’alarme anti-intrusion 30 mois Bâtis 60 mois Supports de télévision 60 mois Caméras IP 60 mois DVRs, NVR's 60 mois Détecteurs mouvement infrarouge 60 mois Attaches pour câbles À vie limitée Les panneaux de brassage À...
- Page 19 DE QUELQUE FAÇON QUE CE SOIT ET/OU DU NON- RESPECT DE LA PRÉSENTE GARANTIE OU DE TOUTE AUTRE GARANTIE OU CONDITION, EXPRESSE OU IMPLICITE, TOUTE AUTRE RÉCLAMATION FONDÉE SUR LA RESPONSABILITÉ, MÊME SI LA PERTE DOMMAGES SONT CAUSÉS NÉGLIGENCE OU LA FAUTE D’ADI ET MÊME SI CETTE DERNIÈRE A ÉTÉ...
- Page 20 RÉCLAMATION SELON LAQUELLE LE PRODUIT N’AURAIT PAS DONNÉ DE SIGNAL D’AVERTISSEMENT. Toutefois, si ADI est tenue responsable, directement ou indirectement, de pertes ou de dommages à l’égard des produits qu’elle vend, quelle qu’en soit la cause ou l’origine, sa responsabilité n’excédera en aucun cas le prix d’achat du produit, dont le remboursement sera exigé...
- Page 21 ADI se réserve le droit de donner une note de crédit plutôt que de remplacer le produit. Si l’on établit que le produit W Box Technologies n’est pas défectueux ou que son mauvais fonctionnement résulte d’une utilisation abusive ou de dommages causés par l’utilisateur, le produit sera retourné...
- Page 22 5. Lois applicables Les lois de l’État de New York s’appliquent à la présente garantie limitée. 6. Modalités diverses Si une modalité de la présente garantie limitée est interdite par ces lois, elle sera nulle, mais le reste de la présente garantie limitée demeurera pleinement en vigueur.
- Page 23 0E-HDMISW4X1 1 1 9 1 4 0 2 4 5 7...
