Summary of Contents for SOUNDMASTER KTV 100

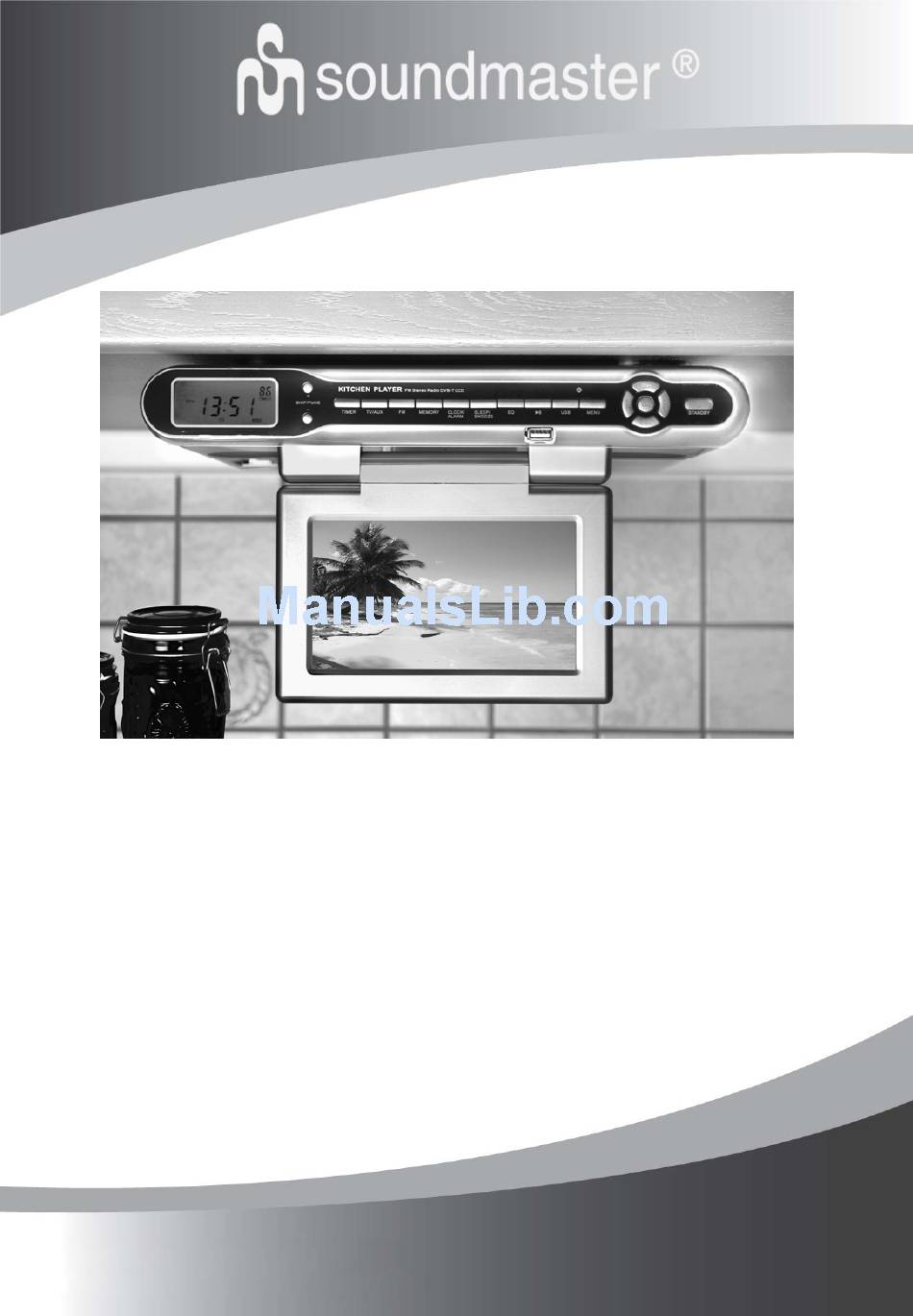

  • Page 1 DEUTSCH ENGLISH FRANÇAIS NEDERLANDS ESPANOL KTV 100...
  • Page 2: Table Of Contents

    Table of Contents Precautions Accessories Description Of Appearance Description of Remote Controller Basic port Connect Operation InStruction For Alarm Clock Radio System DVB-T In Stallation Guide VIII DVB-T MENU Operation Guide Troubleshooting Technical Parameters...
  • Page 3: I Precautions

    I Precautions Storage 1. Keep this product away from extremely hot or cold places. The storage temperature ranges from -20 to 60 and the working temperature from -5 to 40 . 2. Do not use this product at damp environment like bathtubs, wash basins, washtubs, as well as basements, swimming pools or similar places.
  • Page 4: Accessories

    II Accessories 1. Knighthead 2. Screws 3. Remote control 4. AAA type batteries 5. Operation Instructions 6.Mounting Template paper * Open the package and make sure all the items are included.
  • Page 5: Description Of Appearance

    III Description of Appearance SKIP/TUNE- : Radio Tuning/ Time Adjustment Key. When the Radio function is enabled, press this key to tune in downwards; hold this key to search down, and it will automatically stop when find a channel. When in Time Adjustment mode, press the key to adjust the hour or minutes in a stepping-down way;...
  • Page 6 6. MEMORY: Memory Key. When receiving FM programs, press this key to enable Channel Memory function; press " SKIP/TUNE+ "/ " SKIP/TUNE- " or " CH+/- " to select broadcasting channels you want to put into memory; and press " MEMORY "...
  • Page 7 15. OK: Enter Key. When the setting menu of TV interfaces is open, press this key to complete parameter adjustment and enable related functions. VOL+: Volume Up Key. When the TV receiver is in service, press this key to turn up; when in TV or AUX menu status, press the key to adjust parameters.
  • Page 8: Description Of Remote Controller

    IV Description of Remote Controller POWER MUTE INFO TEXT SUBTITLE DTV MODE MENU EXIT VOL- VOL+ AUDIO PAUSE AL.SET SKIP/TUNER P.ADJ CLOCK ALARM SET1 FAVOR GUIDE ALARM SET2 SEARCH TIMER SNOOZE SLEEP MEMORY MONO TV/AUX 1. POWER: Boot/standby/alarm cancel button. Switch between booting and standbying for each press.
  • Page 9 : Return Key. In TV mode, press this key to switch between current program and previous program. 10. MENU: Menu Key. In TV/AUX mode, press this key to open corresponding main menus. 11. EXIT: Exit Key. In TV mode, press this key to exit menu and related functions.
  • Page 10 20. AL.SET: Alarm Clock Set Key. Press this key to set Alarm Clock1 and Alarm Clock2 to: BUZZER/ RADIO/ TV. 21. FAVOR: Favorite Program Lists Switch. In DTV mode, press this key to switch favorite program lists; press "OK" key to open the selected list.
  • Page 11: Basic Port Connect

    V Basic port Connect Connect to USB Set in DTV mode, open the USB cover, insert USB storage device into the jack. Connection jack on the right of the machiner VI Operation Instruction for Alarm Clock Radio System 1 .Time setting CLOCK on remote) Press for 3 seconds...
  • Page 12 CLOCK on remote) Press one time Alarm 1 minute setting CLOCK on remote) Press one time Alarm 2 hour setting CLOCK on remote) Press one time Alarm 2 minute setting 2. Alarm setting (standby status) a."CH-" (ALARM SET2 key on remote) press to choose Alarm/Radio/ b.
  • Page 13 Then press TIMER key to confirm. 6. Radio operation . Press FM to selected Radio. ress " " for three seconds can realize all auto-searching mode and to be all FM band searching, channels will be stored once searched and continue searching. C.
  • Page 14: Dvb-T Installation Guide

    VII DVB-T Installation Guide When first time usages or program list do not exist, the DVB-T Installation Guide will display once the device is turned ON. Please set up as the following Pictures. Press key to move the cursor to your wanted item, press adjust with your local DVB-T standard setting.
  • Page 15: Dvb-T Menu Operation Guide

    VIII DVB-T MENU Operation Guide Press "MENU" from the remote control or from the device to enter MENU surface, there will be five menu and some sub-menu under. Press to switch each menu, then press to select sub-menu, press OK to enter sub-menu. Press to move cursor to your wanted location.
  • Page 16 8.1.2 TV Setup Under "TV Setup" Menu for the following items: (1) TV format: Display mode, '4:3LB', '4:3PS', '16:9LB' and '16:9FIT'. (2) TV mode: AV output system, selection of 'PAL', 'NTSC', 'AUTO'. (3) OSD Transparency: Setting for OSD transparency levels. (4) Banner Display Time: Menu banner time display setting.
  • Page 17 8.1.4 Advance Timer Uers can setup appointed time to watch appointed Channels, start and finish time can be setup according to the timer system in this device, please confirm with the timer system from this device before setting up; Detailed guide as follow: 8.1.5 SW Update Available to be updated via other device or external memory devices.
  • Page 18 When LCN setup as "OFF", (see 8.1.1) the following Menu surface will be appear: Move and Sort are for setting channels in order. 8.2.2 Enter "TV Guide" Menu, under the program gide, you can see the current channels display list, press to move the cursor to the channel you wish to watch, press key to enter the Guide timer of...
  • Page 19 2. The USB plug do not support Card reader, mobile harddisk, MP3 and MP4 device. 8.3.1 Enter "My Album" Press key to select the picture you wish to view, press "OK" to confirm as follow: Press "INFO" from the remote control for viewing tools, press to move the picture for clock wise or anti-clock wise, press key to select next or previous picture, press "RED"...
  • Page 20 8.3.3 When viewing Picture, press OK key to enter Picture playing mode and auto-switch to different effect to view the picture. Press "INFO" from the remote control for playing tools, press to select previous or next pictures, press "RED" for play/pause; "GREEN"...
  • Page 21 8.3.5 Enter My Movie surface Press key to select the item you wish watch, Press "OK" key to play, as follow: Press "INFO" for play tools, press key to select previous or next movie, press "RED" key for play/pause; "GREEN" key for stepforward; "YELLOW"...
  • Page 22: Troubleshooting

    IX Troubleshooting The following phenomenon does not indicate failures. Before you contact us for repair, please check your device according to the approaches below. Problems Causes Power wire is not properly connected; the functioning power source is not No picture or sound recognized;...
  • Page 23: Technical Parameters

    X Technical Parameters Radio Receiving Frequency Range: FM87.5MHz-108MHz Radio Adjustment Step: 50KHz Radio Sensitivity: FM 10dBuV Radio Signal-to-noise ratio: FM 40dB TV Receiving Frequency: 177.5MHz - 858MHz TV Receiving Input Power: -85dBm - 0dBm LCD Size: 7 inch LCD Aspect Ratio: 16:9 LCD Resolution: 480 LCD Light Source: LED LED Life: more than 10,000 hours...
  • Page 24 Warning: This operation instruction is only intended for reference. No further notice is available to any modification of all information contained therein. Due to continuing improvements, the features and design are subject to change without notice. No repairable components exist in the machine. Don't try to dismantle and improve the monitor, and the high voltage in the machine may cause danger.
