Mobile Devices C4evo Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

C4evo - INSTALLATION GUIDE
V 1.2
04/03/2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C4evo and is the answer not in the manual?

Questions and answers

Summary of Contents for Mobile Devices C4evo

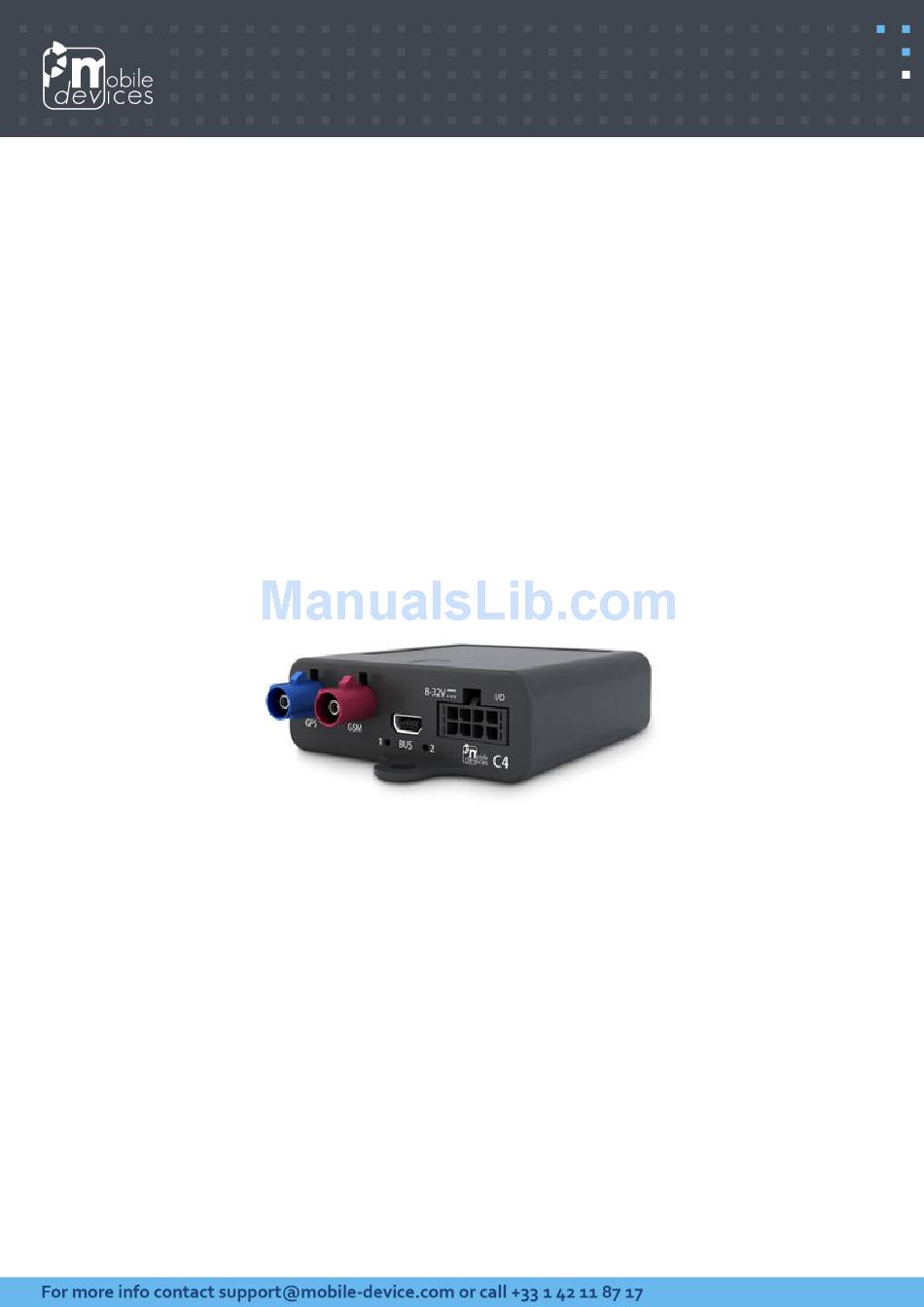

  • Page 1 C4evo - INSTALLATION GUIDE V 1.2 04/03/2011...

  • Page 2: Table Of Contents

    Table of contents Preface ......................3 Warnings and notices ..................3 1. Hardware features ..................4 2. Hardware description .................. 5 2.1. Front ..................... 5 2.2. Back ...................... 5 2.3. Inside ....................6 3. Preparing/installing the device ..............7 3.1. Open the device to insert a sim card ............7 3.2.

  • Page 3: Preface

    Mobile Devices can in no event be held liable for technical or editorial errors or omissions herein, nor for incidental, special or consequential damages from the furnishing, performance or use of this installation guide.

  • Page 4: Hardware Features

    1. Hardware features Performance Processor ARM 11 - 500MHz 64 Mbytes NAND Flash 256 Mbytes Power supply External power supply 8- ● External voltage 8-32V measurement Li-ion battery charger ● Li-ion battery option (900mA.h) Communication GSM receiver ● GSM antenna External Positioning GPS receiver...

  • Page 5: Hardware Description

    2. Hardware description 2.1. Front 1. GSM connector 2. GPS connector 3. USB connector 4. Molex (8pins) connector Molex (8pins) connector 5. USB cable Hook 2.2. Back 6. Inner battery switch Move the switch Move the switch inwards (I) to activate the internal battery. (I) to activate the internal battery.

  • Page 6: Inside

    2.3. Inside 7. SIM holder 8. GSM/GPS module The SIM card PIN code must be deactivated.

  • Page 7: Preparing/Installing The Device

    3. Preparing/installing the device 3.1. Open the device to insert a sim card Insert a flat screwdriver into the inner battery switch hole and pry it to remove the back cover. Afterwards pull on the PCB to release it.

  • Page 8: Connect The Gsm/Gps External Antenna

    3.2. Connect the GSM/GPS external antenna 3.3. Choose the appropriate location for mounting The ideal location for mounting the device is under the dashboard. However, some types of coated windshields, as well as windshields with an in-screen heating system can block GPS signals.

  • Page 9: Plug The Device To The External Battery

    3.5. Plug the device to the external battery The device must have a direct connection with the main power (external battery). Mobile Devices advise against the use of intermediate system. 1. Check that inputs 2 and 3 are free (not connected). 2.

  • Page 10: Leds Sequences

    5. LEDs sequences Green LED (Soft) Red LED (System) Sequence Meaning Sequence Meaning 3 times (50ms ON/100ms No GPRS/No OFF) C4E OFF 3550ms OFF 2 times (50ms ON/100ms No GPRS/Fix Ext. OFF) Power/Run 3700ms OFF 1 time (50ms ON/100ms GPRS OK/No OFF) Int.
