GUARANTEE / SERVICE POLICY
GUARANTEE
Designa guarantee this DS3000 product for a period of two years, from date of purchase,
against mechanical and electrical defects arising from faulty materials or from poor workmanship,
providing the product has been installed by a competent person in accordance with the fitting
instructions.
Designa undertake to repair or replace, at their discretion, without charge, provided the product
has been properly maintained and operated in accordance with the operating instructions. Any
component found to be defective during this period, as the result of misuse or damage, or the
effects of scaling, will not be covered by this guarantee.
This product must not be modified, repaired or taken apart except by a person authorised by
Designa Customer Service.
This Guarantee is only valid within the United Kingdom and does not cover product used
commercially.
This Guarantee does not affect your statutory rights.
SERVICE POLICY
In the event of you needing to contact the Designa Customer Service Department, the following
procedure should be followed:
Before telephoning the Designa Customer Service Department you should ensure
1
that you have the model number, power rating, serial number and date of purchase.
The Designa Customer Service Department will be able to inform you whether the
2
fault can be rectified by the provision of a replacement part or an on site visit by a
Qualified Service Engineer.
3
If a service call is booked, you or a representative must be present during the
Engineers visit.
A charge will be made where a call under the terms of the guarantee has been
4
booked and a failure was not product related, or an engineer arrives and is not able
to gain access.
5
If the product is no longer covered by the Guarantee, a charge will be made for the
site visit and for any parts supplied.
TECHNICAL HOTLINE 9.00am - 5.00pm Monday to Friday
Telephone: 0844 372 7766 Fax: 0844 372 7767
email: technical-services@applied-energy.com
7300066 (A)

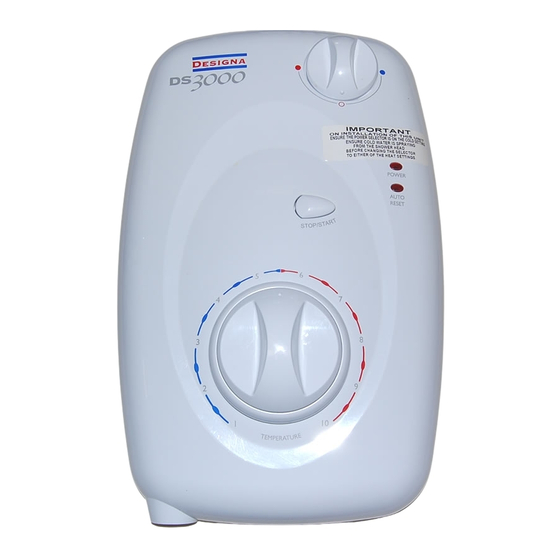

INSTANTANEOUS ELECTRIC SHOWER
SHOWER USER GUIDE
Advertisement
Table of Contents
Summary of Contents for Designa ds3000
- Page 1 GUARANTEE / SERVICE POLICY INSTANTANEOUS ELECTRIC SHOWER GUARANTEE Designa guarantee this DS3000 product for a period of two years, from date of purchase, against mechanical and electrical defects arising from faulty materials or from poor workmanship, SHOWER USER GUIDE providing the product has been installed by a competent person in accordance with the fitting instructions.
- Page 2 Turn the Power knob to cold. Switch off the shower. Clean the shower head, and restart the shower. Select a heat setting. If no hot water is produced call the Designa Service Centre. Power indicator The power setting is on cold.
- Page 3 The following points will help you to suitably qualified person and conform with functions, ensure that the shower head is free understand how your Designa shower unit IEE Regulations and National Water Council from scale and debris which will increase the operates.
- Page 4 (either top, bottom anti-clockwise, this will increase the Soap dish from consumer unit or rear entry) flow of water and decrease the shower Designa electric isolating temperature. water heater stop tap cold 6. To turn off the shower unit press the...
- Page 5 COMMISSIONING THE SHOWER / OPERATING INSTRUCTIONS PLUMBING CONNECTION 11. Turn the bottom temperature control Connect the mains water supply to the inlet IMPORTANT SECTION 9 knob clockwise for hotter water and of the shower unit using a 15mm copper or To comply with National Water Council bylaws anti-clockwise for cooler water.
- Page 6 ELECTRICAL CONNECTION / FITTING INSTRUCTIONS FITTING INSTRUCTIONS The earth continuity conductor of the electrical excess material from the SECTION 6 SECTION 8 installation must be effectively connected to all plain end of the rail. exposed metal parts of other appliances and Electrical connection Riser rail &...
