On Call Plus User Manual

Blood glucose monitoring system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Plus and is the answer not in the manual?

Questions and answers

Summary of Contents for On Call Plus

  • Page 2 Together, we can better manage your diabetes and help you live a longer and healthier life. On Call Plus ® Welcome, and thank you for choosing the Blood Glucose Monitoring System.

  • Page 3: Table Of Contents

    Table of Contents Getting Started ..................1 Component Descriptions .............. 2 On Call Plus ® Blood Glucose Meter ........... 3 Meter Display ................4 ® On Call Plus Blood Glucose Test Strips ........5 ® On Call Plus Glucose Control Solution ........8 Install the Battery ................

  • Page 4: Getting Started

    Before testing, read the instructions carefully and learn about all the 1. Blood Glucose Meter: Reads the test strips and displays the blood ® components of your On Call Plus Blood Glucose Monitoring System. glucose concentration. Depending on the On Call Plus ®...

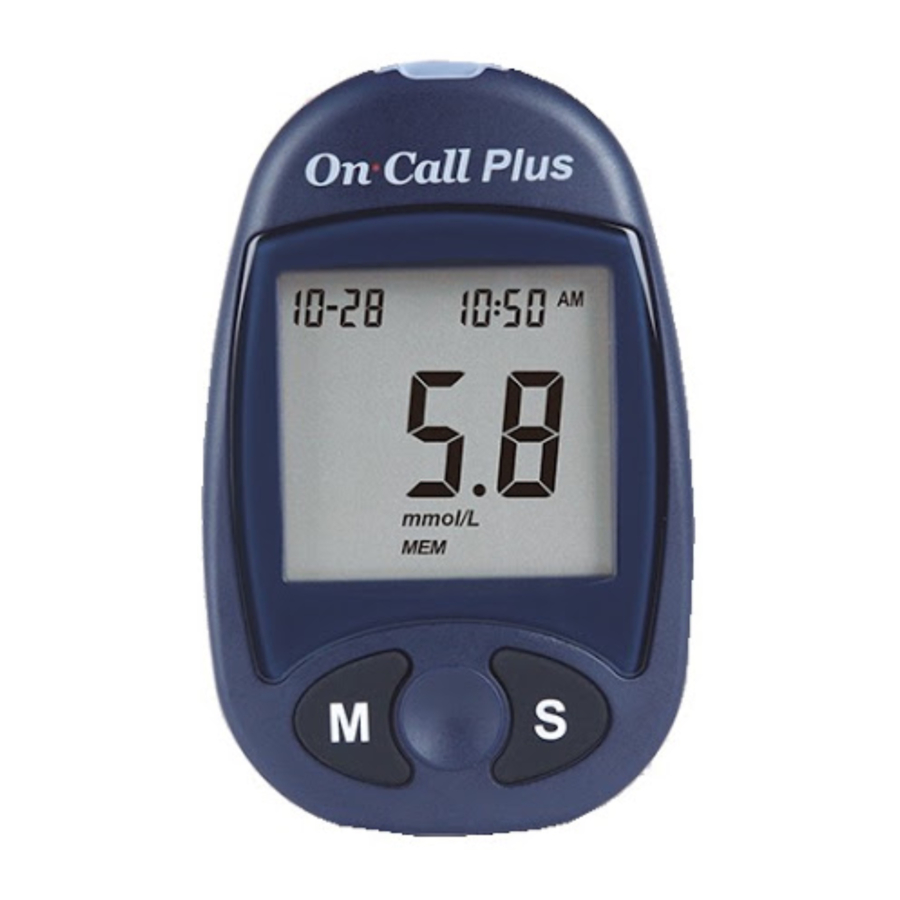

  • Page 5: On Call Plus Blood Glucose Meter

    On Call Plus On Call Plus ® ® Blood Glucose Meter Blood Glucose Meter Meter Display Meter Display The meter reads the test strips and displays the blood glucose Pound Sign (#) Control Solution Symbol concentration. Use this diagram to become familiar with all the parts of Appears with the control solution Indicates a control test result.

  • Page 6: On Call Plus Blood Glucose Test Strips

    Note: Follow proper precautions and all local regulations when strip. disposing of the meter and used batteries. On Call Plus On Call Plus ® ®...

  • Page 7: On Call Plus Glucose Control Solution

    (such as before eating, before taking medication, before means January, 2008. exercising, or 2 hours after eating). See the test strip insert for more details. Special Instructions for Test Strip in the Vial On Call Plus On Call Plus ® ® Glucose Control Solution...

  • Page 8: Install The Battery

    Record this opened expiration date on the bottle label. 2. Place a new CR 2032 3.0V coin cell battery. Make sure it is aligned with the (+) side facing up in the battery carrier. Plus Control Solution Precautions Glucose Meter Glucosa...

  • Page 9: Meter Setup Before Testing

    Meter Setup Before Testing Step 2 - Adjusting the Meter Settings Step 2 - Adjusting the Meter Settings Before testing, the following steps should be followed: Adjust the meter settings to set the clock, ensuring that results stored in the memory are shown with the correct date and time. You can also turn the meter audio feature on or off.

  • Page 10: Performing A Quality Control Test

    Hour Hour Performing a Quality Control Test The quality control test confirms that the test strips and meter are working together properly, and that you are performing the test correctly. It is important to perform this test: Before you first use your meter. Before using a new box of test strips.
  • Page 11 CTRL 2 contact Customer Support at 1-800-838-9502 for help. 81-121 Please contact Customer Support at 1-800-838-9502 for more mg/dL information on obtaining the On Call Plus ® control solution kit, which 81-121 mg/dL mg dL contains Control Solution 1 and Control Solution 2.

  • Page 12: Testing Your Blood

    ® On Call Plus Blood Glucose Monitoring System requires a very small sample of blood which may be obtained from the fingertip, palm (at the base of the thumb) or forearm. See page 20 for information on obtaining a blood sample from the palm or forearm.
  • Page 13 produces an adequate drop of blood. Forearm or Palm (at the base of the thumb) Testing Adjustment: 1 and 2 for delicate skin The forearm and palm areas have fewer nerve endings than the for normal skin fingertip so you may find that obtaining blood from these sites is less 4 and 5 for calloused or thick skin painful than from the fingertip.

  • Page 14: Step 2 - Testing Blood Glucose

    3. Place the lancing device against the puncture Step 2 - Testing Blood Glucose Step 2 - Testing Blood Glucose site. Press and hold the clear cap against the puncture site for a few seconds. Press the release button of the lancing device, but Note: Insertion of a new test strip at any time, except while in the not immediately lift the lancing device data transfer mode (detailed on page 28) will cause the meter to...

  • Page 15: Hi" And "Lo" Messages

    4. The meter will count down from 9 to 1 and "HI" and "LO" Messages "HI" and "LO" Messages then display the measurement results. The meter will also beep to indicate that measurement is complete. The meter can accurately measure blood glucose concentrations between 1.1 to 33.3 mmol/L (20 to 600 mg/dL).

  • Page 16: Using The Meter Memory

    The meter will also calculate the average values of records from the last ® 7, 14 and 30 days. On Call Plus Blood Glucose Monitoring System has been tested and shown to work properly up to 8,516 ft (2,595 meters).

  • Page 17: Clearing The Memory

    Clearing the Memory ® ® Caring for Your Caring for Your On Call Plus On Call Plus Blood Glucose Monitoring System Blood Glucose Monitoring System Extreme caution should be used when clearing the memory. This is not a reversible operation. To clear the memory: Blood Glucose Meter 1.

  • Page 18: Suggested Testing Times And Target Goals

    Target Goals and Laboratory Results ® Your On Call Plus Blood Glucose Monitoring System and laboratory Tracking your blood glucose concentration through frequent testing is results both report the glucose concentration in the serum or plasma an important part of proper diabetes care. Your diabetes health care component of your blood.

  • Page 19: Troubleshooting Guide

    If the problem persists, contact Please make sure you use the customer support. Incorrect code chip On Call Plus ® brand of test strips inserted in the meter Test strip was removed Repeat the test and ensure test ®...

  • Page 20: Specifications

    Feature Specification it to the following address: Measurement Range 20 to 600 mg/dL ® On Call Plus Warranty Center 10125 Mesa Rim Road, Plasma-equivalent Result Calibration San Diego, CA 92121-2915, USA If the meter fails to work for any reason other than obvious abuse within...

  • Page 21: Index

    Index Averaging Results....26 Procedure Battery, Replacing the.....28 Precautions and Limitations..24 Testing Your Blood....17 Carrying Case......1 Quality Control Test....14 Clearing the Memory....27 Control Solution......8 Data Port........3 How to Run.......14 Date Format......7, 9 Results Guidelines........i Blood Glucose......23 Hematocrit......24, 33 Control Solution......15 Install the Battery.....10 Meter vs.
