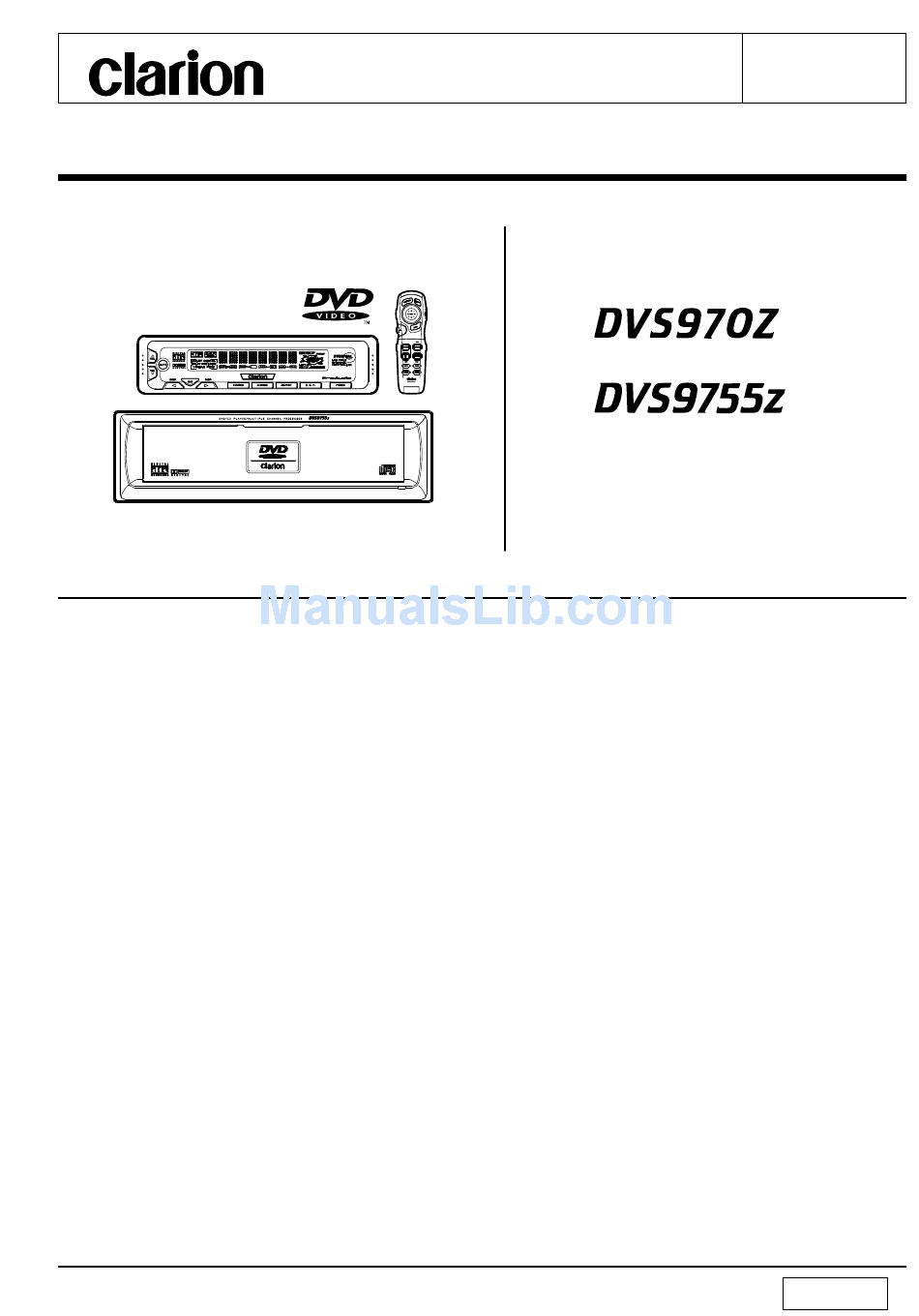

Clarion DVS970Z Service Manual

SPECIFICATIONS

■
DVD player section
System: Digital Versatile Disc System with
CDDA Capable
Usable Discs: DVD Video Disc,Compact Disc
Frequency Response: 20 Hz to 20kHz (
S/N Ratio: 100dB
Dynamic Range: 100dB
Distortion: 0.01
Channel Separation: 80dB
Audio section
S/N Ratio: 100dB(digital input)
100dB(analog input)
Frequency characteristics:
20 Hz to 20kHz (
Separation: 90dB(digital input)
80dB(analog input)
High frequency distortion:
0.01
0.01
Analog output: 4.0Vrms(Vol Max.)
Analog input: 2.0Vrms(Max.)
Digital input: 44.1kHz sampling,
16-bit digital audio data
DSF: 6 modes
P.EQ: 3 bands
Fo;20 Hz to 20kHz
1/3 octava steps
Q;1 to 20
G;
Clarion Co., Ltd.
22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150-8335 Japan
Service Dept.- 50 kamitoda,Toda-shi,Saitama,335-8511 Japan Tel: 048-443-1111 FAX:048-433-6996
± 1dB)
THD
％
± 1dB)
％ (digital input)
％ (analog input)
× 2(front/rear independent)
± 12dB
Service Manual
DVD/CD Player/Multiple Channel
Processor
Model
(PE-2360E)
Model
(PE-2359B)
FOR U.S.A.
(PE-2359K)
FOR OTHER COUNTRIES
General
Power supply voltage: DC14.4V(10.8 to 15.6V allowable)
Current consumption: Less than 3A
Dimensions(mm):
Weight:
Remote control unit
Dimensions(mm):
Weight:
Specifications and design are subject to change without
※
notice for further improvement.
COMPONENTS
■
PE-2359B-A
DVD disc unit
Control unit
Control unit cord
Power supply harness
Fuse (3A)
Parts bag(1)
Set screw(M2.6x4)
Cord clamps(small)
- 1 -
Published by Service Dept.
298-5899-00 3.2001 B
Printed in Japan
Preset front; 6types
Rear; 7types
Subwoofer voltage gain; ＋ 12dB
(M.Vol Max.)
LPF Fo;50 Hz,80Hz,120Hz
LPF slope;12,18,24 dB/oct
Negative ground
178(W) × 50(H) × 165(D)
about 1.6kg
47(W) × 142(H) × 32(D)
30g(including battery)
−−−−−
−−−−−
855-2464-00
854-6377-50
120-0030-00
921-9596-00
714-2604-80
321-1024-00
DVS9755z/
DVS970Z
1
1
1
1
1
1
1
1
