Telemax TXDPF5.6 User Manual

5.6 in
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

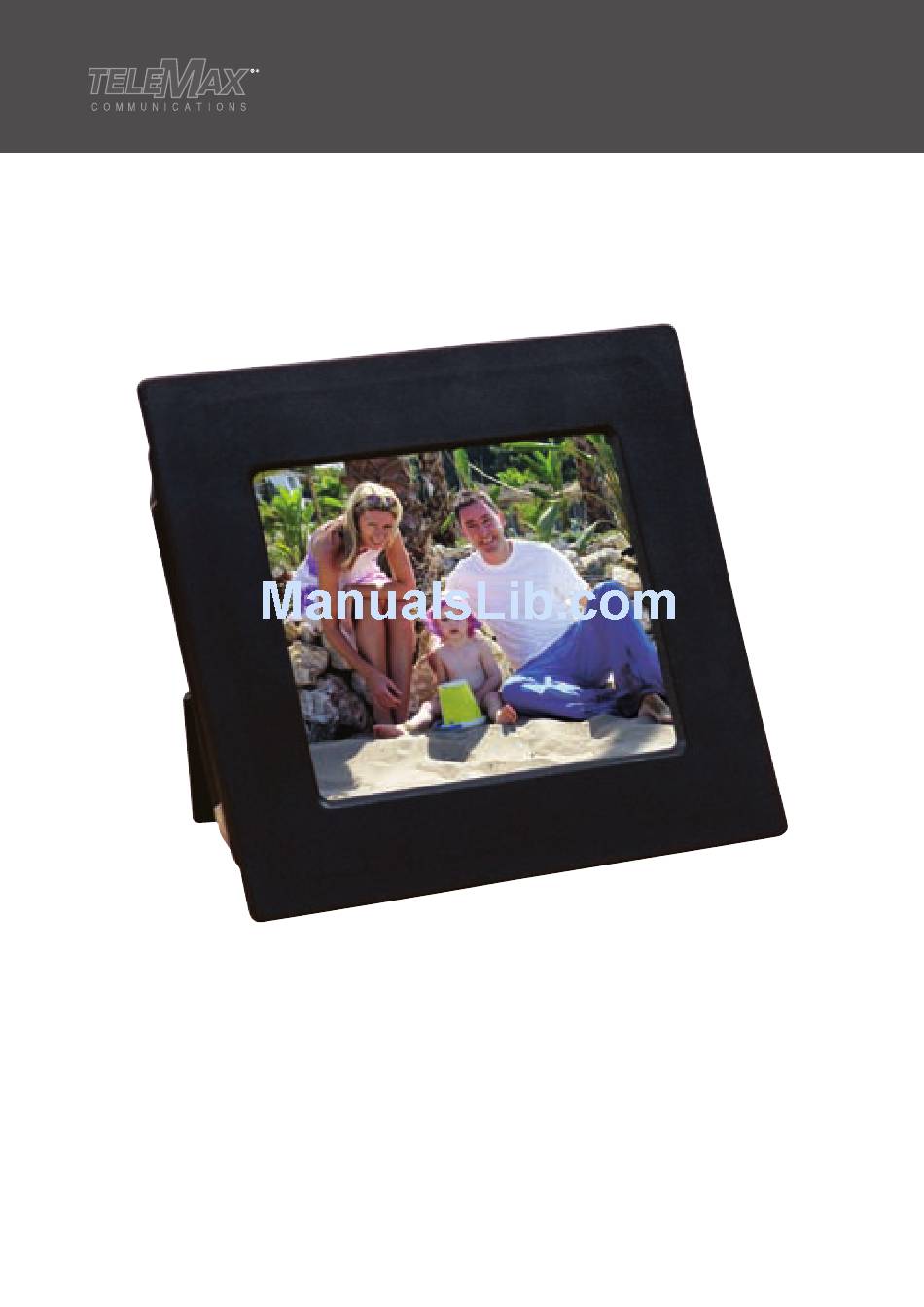

5.6 in Digital Picture Frame
TXDPF5.6
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TXDPF5.6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Telemax TXDPF5.6

  • Page 1 5.6 in Digital Picture Frame TXDPF5.6 User Manual...

  • Page 2: Product Introduction

    1. Product IntroductIon: Congratulations on your purchase of the Telemax digital picture frame. With its high-quality image resolution this easy to use and versatile digital picture frame is perfect for displaying your favorite photos and videos, and playing your favorite MP3’s.

  • Page 3: System Setup

    D. Turn the power to the “On” position via the On/Off switch. The power switch is on the right side of the digital picture frame. E. As default, the first file on the card will be displayed first. The play sequence is automatically sorted by the file name alphabetically, regardless of file type.
  • Page 4 5.1 multIPle cards In system If you’ve inserted more than one media card, the “Multiple Cards Present” screen will appear. Use the Up and Down navigation buttons to move through the selections and press Enter to select. If only one media card is present, this will not appear.
  • Page 5 6.1 Photo setuP Page The Photo Setup functions are illustrated in the following section. Orientation The Orientation Setup Screen is shown below. Press Right to highlight the menu, select AUTO or MANUAL and press Enter to confirm selection. Orientation Setup Screen Selecting AUTO will display the photo in the orientation specified by the orientation bit contained within the photo file. (Factory default mode) Selecting MANUAL will ignore the orientation bit specification. Main Page Select MAIN PAGE to return to the Setup Main Page screen.
  • Page 6 Slideshow Mode The Slideshow Mode Setup Screen is shown below. Press Right navigation button to highlight the menu, select AUTO or MANUAL and press Enter to confirm selection. Slideshow Setup Screen Selecting MANUAL will allow full control of the photo slideshow timing to the user. Selecting AUTO will initiate the photo slideshow after a full screen photo display has started. See Section 3 for how to display photo in full screen.
  • Page 7 Interval Time Setup Screen Selecting 1 SECOND will display the photo for 1 second before switching to another photo, during a photo show. Selecting 3, 5, or 10 SECONDS will display a photo for 3, 5, or 10 seconds before switching to another photo, during a photo show. (Factory default is 3 seconds) Transition Setup The Transition Setup Screen is shown below. Press Right navigation...
  • Page 8 Selecting FULL SCREEN will display the full photo at once. Selecting the other modes will display the photo using the transition chosen. The photo transition choices are: 1. Full Screen (at once) 2. Top-to-Bottom (roll) 3. Bottom-to-Top (roll) 4. Top/Bottom-to-Center (roll) 5. Center-to-Top/Bottom (roll) 6. Blind Top-to-Bottom 7. Left-to-Right (roll) 8. Right-to-Left (roll) 9. Left/Right-to-Center (roll) 10. C enter-to-Left/Right (roll) 11. Implode (corners-to-center) 12. B lind Left-to-Right 13. C ross-Fade (photo fades into next photo)
  • Page 9 Selecting PHOTO+MUSIC will start, after a short delay, the automatic playback of a photo with music show. The files play sequentially in an alphabetical order based on the filenames (no thumbnails page display). Both Music and Photo files must be present in order for the Photo+Music Auto Start function to occur. Selecting PHOTO+VIDEO will start, after a short delay, the automatic playback of a photo and video show. The files play sequentially in an alphabetical order based on the filenames (no thumbnails page display). Photos display without music and the video clips play with the sound tracks associated with them.
  • Page 10 of the screen. The Information Row contains data on the thumbnail currently displayed as shown below. File Date of File Thumbnail # / Currently Selected Name File Size Total # Memory Card OSD Language The OSD (On Screen Display) Language Setup Screen is shown below. Press Right navigation button to highlight the menu, select OSD Language and press Enter to confirm selection.
  • Page 11 Help Row The Help Row Setup Screen is shown below. Press Right navigation button to highlight the menu, select ON or OFF and press Enter to confirm selection. Help Row Setup Screen Selecting ON will enable the Help Row to be displayed. (Factory default setting) Selecting OFF will disable the Help Row. Action Buttons Help Row Help Row in Thumbnails Screen...
  • Page 12 Setup Values The Factory Default Setup Screen is shown below. Press Right navigation button to highlight the menu, select DEFAULT and press Enter to confirm selection. Default Setup Screen 7. dIgItal Photo dIsPlay The digital photo display is initiated when the PHOTO option is selected from the main Function Select screen. In the digital photo display mode, the Photo Thumbnails Screen will appear. All the photos found in the card will be displayed in continuous pages of photo thumbnails.
  • Page 13 Photo Thumbnails Screen Use navigation buttons to select the picture for display, while the picture is highlighted, press ENTER to confirm. The pictures will play from the selected picture in a loop. • In the process of playing, press ENTER to make the following menu appear, the “Return” button will be highlighted. • Press the NEXT action button for the next photo.
  • Page 14 • Press the PREVIOUS action button for the previous photo. • Press the PLAY/PAUSE action button to start the Photo Show. Once in photo show, press PLAY/PAUSE button to pause or resume the Photo Show. • Press the ROTATE action button to change the rotation of the display of a photo. This function is not available when in Music Slideshow.
  • Page 15 • Press the RETURN action button to return to the Photo Thumbnails Screen. • When the Photo Thumbnail Screen is displayed you can press the REPEAT action button to set a new repeat mode of your choice, different from the settings in the SETUP menu. • When the Photo Thumbnail Screen is displayed you can press the MUSIC+PHOTO SLIDE SHOW action button to initiate a Music Photo Slideshow. After several seconds the Action Button Row disappears - pressing the UP key restores the action buttons.
  • Page 16 • Press the RETURN action button to return to the Photo Thumbnails Screen. 8. dIgItal musIc Playback Music Library Screen Use the navigation buttons to move through the music files. The highlighted music starts to play automatically. Use the LEFT button to access the action buttons at the bottom of the screen. Then use the LEFT and RIGHT action buttons to jump to the previous or next page of thumbnails if required.

  • Page 17: Digital Video Playback

    • Press the MUSIC PHOTO SLIDE SHOW action button to initiate the Music Slideshow. Photo files must be present in order to have photos; otherwise, only music files will be played. • Once in the slide show, press the PLAY/PAUSE action button to pause or resume the music photo slide show. • Press the INFORMATION action button to view, the properties of the photo displayed on screen.
  • Page 18 Video Thumbnails Screen Use the navigation buttons to move through the thumbnails in the thumbnail page. Highlight either the first or the last thumbnail and use the LEFT or RIGHT button (as indicated by the text on the bottom of the screen) to access the action buttons. Then use the action buttons at the bottom of the screen to jump to the previous or next page of thumbnails.
  • Page 19 buttons. Press the RETURN action button to return to the Video Thumbnails Screen. • Press the PLAY/PAUSE action button to start the Photo Show. Once in photo show, press PLAY/PAUSE button to pause or resume the Photo Show. • Press the NEXT action button for the next photo. • Press the PREVIOUS action button for the previous photo. • Press the FAST FORWARD action button to cause the video to fast forward at 2X speed. Pressing the FAST FORWARD action...
  • Page 20 • Press the INFORMATION action button to view, by OSD, the properties of the photo displayed on screen. • Press the RETURN action button to return to the Video Thumbnails Screen. 10. FIle lIbrary browsIng The File Library Browsing function is initiated by selecting FILE from the Home Page screen. All contents of a device/card can be accessed using this function. The File Library Screen will appear showing the contents of the currently selected memory card.
  • Page 21 Use the navigation buttons to move through the different files. The highlighted file starts automatically. Use the LEFT or RIGHT button to access the action buttons at the bottom of the screen. Then use the action buttons to jump to the previous or next page of thumbnails if required.

  • Page 22: File Selection

    12. FIle selectIon The File Library Browser provides access to all three (Photo, Video, and Music) file types. Use the navigation buttons to move through the different files. The highlighted file starts automatically in the thumbnail and stops at the end of the file. Use the LEFT button to access the action buttons at the bottom of the screen. Then use the action buttons to jump to the previous or next page of thumbnails if required.

  • Page 23: Warranty

    This warranty gives you specific legal rights and you may have other rights which will vary from province to province. For product support please contact www.leiproducts.com or 1-800-449-3315. Custom Manufactured in China for/ Fabriqué en Chine spécialement pour LEI Electronics Inc., 18 Mollard Court, Unit 4 Barrie, Ontario, Canada L4N 8Y1 www.leiproducts.com *Telemax Communications is a registered trademark of LEI Electronics Inc.
