LaserMPrints™ C8600 / C8800 Quick Start-Up Guide
This document will guide you through the proper set-up in order to achieve the best possible output
to our line of heat transfer papers.

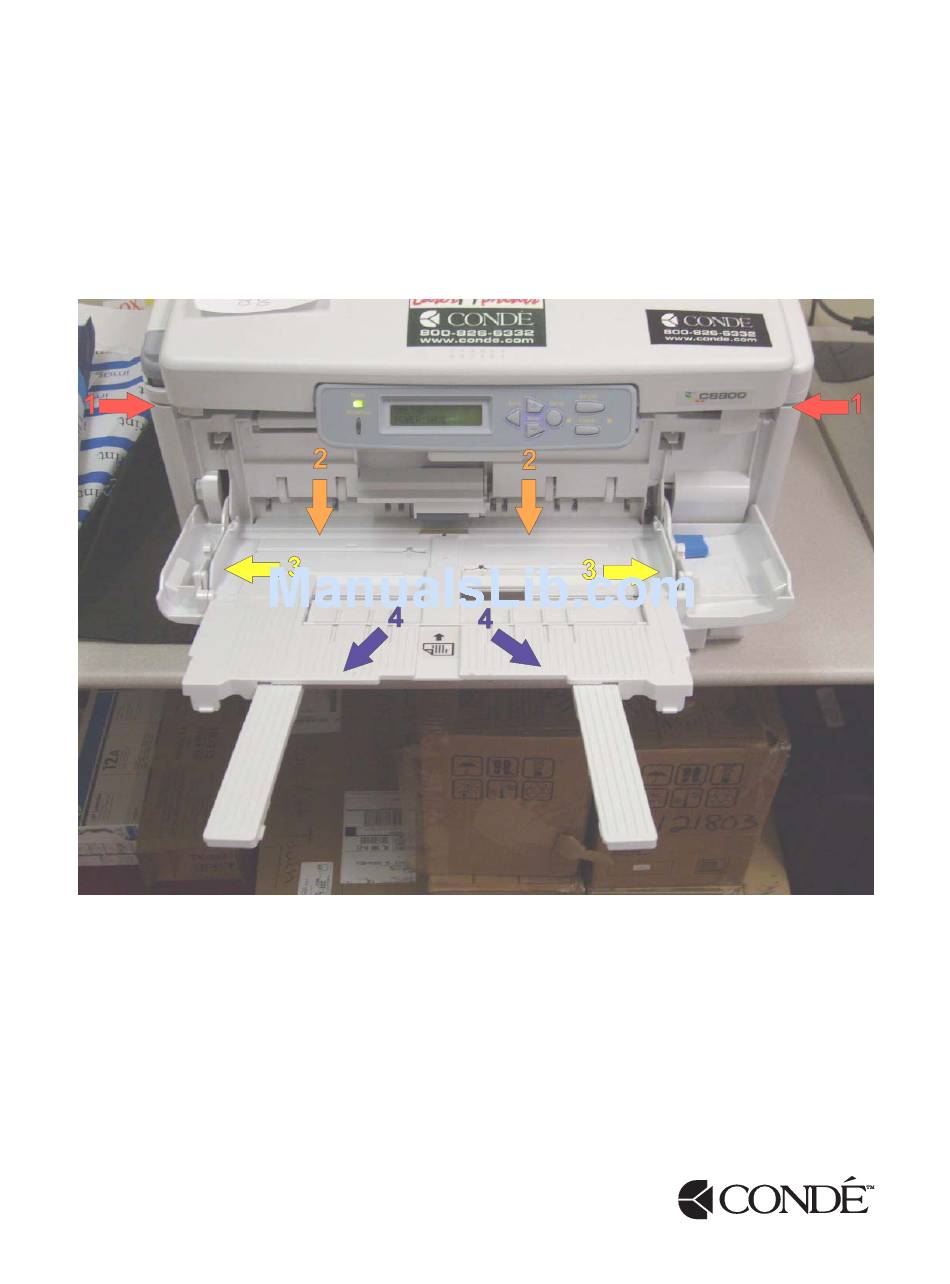

Step 1 – Set Up Multi-Purpose Tray
Transfer paper should always load in the Multi-Purpose Tray of the LaserMPrints C8600/C8800
unit. Do not load transfer paper in Tray 1.
1) Pull the Multi-Purpose Tray down from the front of the printer. Tabs are located on either
side of the Multi Purpose Tray.
2) Gently push down on the base of the Multi-Purpose Tray until it locks into the LOAD
position.
3) Adjust paper guides to feed 11" side of media (for both Letter and Tabloid printing).
4) Extend Tray Tab to hold paper in place.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LaserMPrints C8600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Conde LaserMPrints C8600

  • Page 1 Step 1 – Set Up Multi-Purpose Tray Transfer paper should always load in the Multi-Purpose Tray of the LaserMPrints C8600/C8800 unit. Do not load transfer paper in Tray 1. 1) Pull the Multi-Purpose Tray down from the front of the printer. Tabs are located on either side of the Multi Purpose Tray.
  • Page 2 Step 2 – Load Transfer Paper in Multi-Purpose Tray (1) Load Transfer Paper “Image Side Up” in Multi-Purpose Tray. (2) Press Blue Tab to lock Transfer Paper in Multi-Purpose Tray. Note: Remember that both Letter (8.5” x 11”) and Tabloid (11” x 17”) transfer papers should always load into the Multi-Purpose Tray with the 11”...
  • Page 3 Step 3 – Select Paper Settings for Transfer Paper On “Print Options”, Select OKI C8600 or C8800 and click “Properties” Tab. On “OKI C8600/C8800 Document Properties” Screen: 1) Set your Paper Source as Multi-Purpose Tray. 2) Click Advanced button.
  • Page 4 The OKI Firmware Upgrade v1.0 reconfigures the “User Type 1” Media Type setting, and is recommended as a “universal setting” for running “full bleed” Tabloid transfers. The OKI Firmware Upgrade v1.0 is available on the PartnerNet section of our web site: http://www.conde.com Please see “OKI C8600/C8800 Advanced Options” screen (Upgrade v1.0 set-up)
  • Page 5 The OKI Firmware Upgrade v2.0 reconfigures the “User Type” Media Type settings, and is recommended as “paper specific” method for running “full bleed” Tabloid transfers. The OKI Firmware Upgrade v2.0 is available on the PartnerNet section of our web site: http://www.conde.com Please see “OKI C8600/C8800 Advanced Options” screen (Upgrade v2.0 set-up)
  • Page 6 On “OKI C8600/C8800 Advanced Options” screen (Upgrade v2.0 set-up): 1) Select Paper Size to either Letter or Tabloid. Remember that the 11” side of the transfer paper always feeds in to the Multi-Purpose Tray. 2) Select the following Media Type, depending on brand of Transfer Paper. a.
  • Page 7 To “Mirror Your Image” from the OKI C8600 or C8800 Driver: 1) From “OKI C8600/C8800 Document Properties” screen, click “Job Options” tab, then click on the “Advanced” button, located lower-right section of the screen. 2) Click here to Mirror your Print, and then click “OK”.
