Summary of Contents for Lippert 104X-E4690

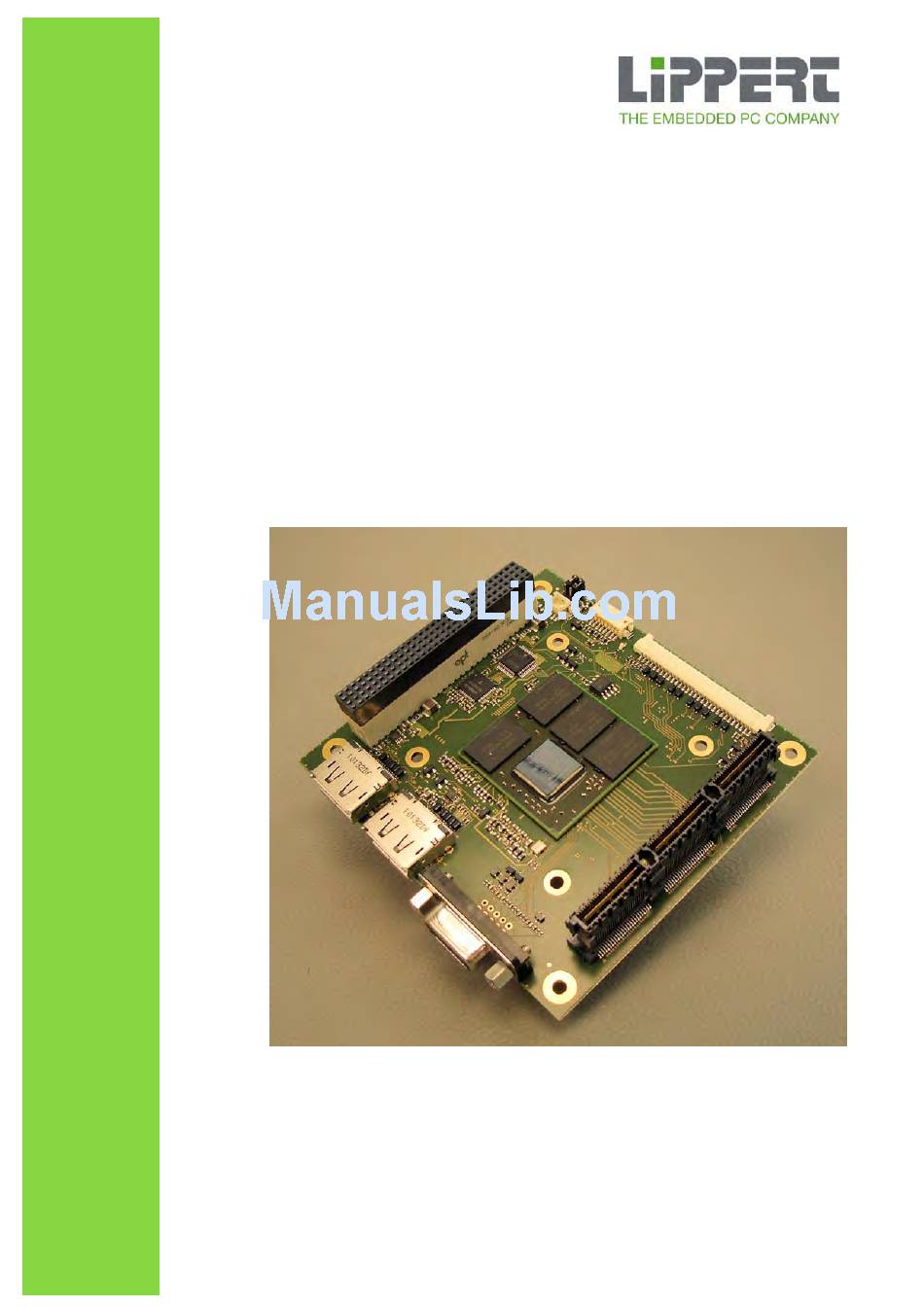

- Page 1 104X-E4690 PCI/104-Express Graphics Card Technical Manual TME-104X-E4690-1V0.doc Revision 1.0 / April 11 © LiPPERT Embedded Computers GmbH Hans-Thoma-Str. 11 D-68163 Mannheim www.lippertembedded.com...
- Page 2 LiPPERT Embedded Computers GmbH assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the technical manual.
-
Page 3: Table Of Contents
Table of Contents Overview Introduction ........................1 Features ............................1 Block Diagram ...........................2 Ordering Information ......................3 104X-E4690 Models ........................3 Accessories ..........................3 Specifications ........................4 Electrical Specifications ......................4 Environmental Specifications ....................4 MTBF ............................4 Mechanical ......................... 5 TOP ............................6 Getting Started Connector Locations ......................7 Top ............................7... - Page 4 Fan Connector (X9) ......................18 Using the Module Drivers ..........................19 Scalable Power Consumption ....................19 Appendix A, Contact Information Appendix B, Additional Information Appendix C, Getting Help Appendix D, Revision History TME-104X-E4690-1V0.doc Rev 1.0...
- Page 5 Light Emitting Diode LVDS Low Voltage Differential Signaling PCIe Peripheral Component Interconnect Express Phase-Locked Loop Pulse Width Modulation Power Read Only Memory Single Board Computer System Management Bus System Management Controller Serial Peripheral Interface Video Graphics Array TME-104X-E4690-1V0.doc Rev 1.0...
-
Page 6: Overview
1 Overview 1.1 Introduction The 104X-E4690 is a graphics card with an ATI Radeon™ E4690 graphics processor for embedded applications with an excellent performance power ratio. The board adds unprecedented graphics performance to an embedded PC on a small 3.78" by 3.55" printed circuit board. -
Page 7: Block Diagram
Block Diagram Display Link A Display Port A Display Link B Display Port B Radeon E4690 PCI/104-Express PCIe x 16 DAC1 Link 512MB on chip memory Display Link E/F 24 Bit LVDS (Dual Channel) TME-104X-E4690-1V0.doc Rev 1.0 2(19) -
Page 8: Ordering Information
104X-E4690 Operating temp. range: 0°C…+60°C 812-0007-10 104X-E4690 Operating temp. range: -20°C…+60°C Accessories There are some options available for the 104X-E4690. Please check their availability before ordering. Order number Description 765-0033-10 Heat spreader 104X-E4690 (already included on delivery) 765-0034-10 Heat Pipe Adapter 104X-E4690... -
Page 9: Specifications
450 … 1100 hPa Non-Operating/Storage/Transport: Temperature range -55 … 85 °C Temperature change 10K / 30 minutes maximum Humidity (relative) 5 … 95 % (non-condensing) Pressure 450 … 1100 hPa MTBF MTBF at 25°C 450.937 hours TME-104X-E4690-1V0.doc Rev 1.0 4(19) -
Page 10: Mechanical
It is strongly recommend using plastic spacers instead of metal spacers to mount the board. With metal spacers, there is a possible danger to create a short circuit with the components located around the mounting holes. This can damage the board! TME-104X-E4690-1V0.doc Rev 1.0 5(19) -
Page 11: Top
Pin1 Pin2 TME-104X-E4690-1V0.doc Rev 1.0 6(19) -
Page 12: Getting Started
2 Getting Started 2.1 Connector Locations TME-104X-E4690-1V0.doc Rev 1.0 7(19) -
Page 13: Hardware Setup
Plug the 104X-E4690 module on top or under a PCI/104-Express or EPIC-Express single board computer (SBC). Connect the 104X-E4690 to a VGA or Display Port monitor. Connect USB keyboard and mouse to the SBC. Use the soldered SSD or connect a hard drive with a SATA cable (not part of the cable set) to start an operation system. -
Page 14: Cooling Solutions
2.3 Cooling solutions The following solutions are available for the 104X-E4690 as cooling device. Please ask our support department for detailed 3D drawings. Heat spreader part number 765-0033-10 The heat spreader is included as default on the board. Additional cooling is necessary for the operation of the board by mounting an adequate cooling device on the heat spreader. -
Page 15: Heat Pipe Adapter
Please note that the heat sink height does not allow to stack an additional PC/104 Express board on top of the 104X-E4690. Depending on the required graphics performance the fan will be controlled in speed to achieve the best cooling performance. -
Page 16: Module Description
The +5V signal at pin 9 is protected by a 3A fuse. The fuse gets damaged if this pin is shorted to ground! There is an additional through-hole pattern that allows soldering a VGA cable directly on the board. Signal Signal Green Reserved Blue DDC_CLK HSYNC DDC_DAT VSYNC TME-104X-E4690-1V0.doc Rev 1.0 11(19) -
Page 17: Displayport (Dp) Connector (X1 (X12), X2 ( X13))
LPCM PCM multi-channel support with up to 24-bps and 192-kHz sampling rate. • Support for up to 8 channels. • HDCP content protection support for software audio stack. • True audio plug-and-play capability for enhanced audio modes. TME-104X-E4690-1V0.doc Rev 1.0 12(19) -
Page 18: Lvds (X3)
TXA0 - TXA0 + TXB3 - TXB3 + TXBCLK - TXBCLK + TXB2 - TXB2 + TXB1 - TXB1 + TXB0 - TXB0 + LVDS DDC-CLK LVDS DDC-DATA 1.0A is the maximum current for each pin TME-104X-E4690-1V0.doc Rev 1.0 13(19) -
Page 19: Lvds Color Mapping
PWM interface. Connector type DF13 8-pin header Signal +12V +12V CTRL 0.5A is the maximum current for each pin That voltage can be selected via Jumper for backlight, shown on next page TME-104X-E4690-1V0.doc Rev 1.0 14(19) -
Page 20: Display Voltage Jumpers (X4)
+12 Volt Display voltage Backlight voltage + 5 Volt +5 Volt default jumper setting LVDS Jumper Power supply +3.3 Volt +5 Volt Backlight Jumper Power supply +12 Volt +5 Volt Note An arrow marks pin 1 TME-104X-E4690-1V0.doc Rev 1.0 15(19) -
Page 21: Pc/104-Plus Bus Interface (X11)
3.2 PC/104-Plus Bus Interface (X11) The PC/104 Plus Bus connector is used only as stack through connector for the PCI bus of the CPU board and is not used on the 104X-E4690. The bus connector height on top side is 22 mm. Row A... -
Page 22: Pci/104-Express Bus Interface (X7)
Signal Signal WAKE# PEG_EN# Pex16_0T(8)p Pex16_0T(0)p Pex16_0T(8)n Pex16_0T(0)n Pex16_0T(9)p Pex16_0T(1)p Pex16_0T(9)n Pex16_0T(1)n Pex16_0T(10)p Pex16_0T(2)p Pex16_0T(10)n Pex16_0T(2)n Pex16_0T(11)p Pex16_0T(3)p Pex16_0T(11)n Pex16_0T(3)n Pex16_0T(12)p Pex16_0T(4)p Pex16_0T(12)n Pex16_0T(4)n Pex16_0T(13)p Pex16_0T(5)p Pex16_0T(13)n Pex16_0T(5)n Pex16_0T(14)p Pex16_0T(6)p Pex16_0T(14)n Pex16_0T(6)n Pex16_0T(15)p Pex16_0T(7)p Pex16_0T(15)n Pex16_0T(7)n TME-104X-E4690-1V0.doc Rev 1.0 17(19) -
Page 23: Fan Connector (X9)
Pex16_0R(6)n Pex16_0R(15)p Pex16_0R(7)p Pex16_0R(15)n Pex16_0R(7)n 3.4 Fan Connector (X9) The 104X-E4690 provides a connector to power a GPU fan if the module is actively cooled. Connector type DF13 3-pin header Signal Speed Signal from fan (yellow) +5VDC (red) GND (black) 0,2 A is the maximum current for each pin TME-104X-E4690-1V0.doc... -
Page 24: Using The Module
4 Using the Module 4.1 Drivers Software drivers are available for the 104X-E4690. These drivers can be downloaded from AMD's website www.amd.com. Choose Product Line: Embedded on driver download page. Follow the installation instructions that come with the drivers. Scalable Power Consumption By setting different speeds for GPU and GDDR3 memory in the driver settings it’s possible to scale the graphics... - Page 25 Appendix A, Contact Information Headquarters LiPPERT Embedded Computers GmbH Hans-Thoma-Straße 11 68163 Mannheim Germany Phone +49 621 432140 +49 621 4321430 E-mail sales@lippertembedded.com support@lippertembedded.com Website www.lippertembedded.com US Office LiPPERT Embedded Computers, Inc. 2220 Northmont Parkway, Suite 250 Duluth, GA 30096...
- Page 26 Additional Information Datasheets ® Ask ATI or AMD support for the datasheet of Radeon™ E4690. PCI/104-Express and PC/104-Plus Specifications A copy of the latest PCI/104-Express and PC104-Plus specifications can be obtained from the PC/104 Consortium's website at http://www.pc104.org TME-104X-E4690-1V0.doc Rev 1.0...
- Page 27 LiPPERT's website www.lippertembedded.com. Simply locate the product in question and follow the link to its manual. Returning Products for Repair To return a product to LiPPERT for repair, you need to get a Return Material Authorization (RMA) number first. Please use the RMA request form on our website www.lippertembedded.com/service/repairs.html or contact our support.
- Page 28 Appendix D, Revision History Filename Date Editor Change TME-104X-E4690-0V0 2010-02-02 draft TME-104X-E4690-0V1 2010-09-10 minor changes TME-104X-E4690-0V2 2010-09-14 Chapter 3.2. correction on description Chapter 3.3. correction on description TME-104X-E4690-0V3 2011-04-21 New front picture US office address corrected Electrical specifications corrected (supply voltage)
