Summary of Contents for Viva E53

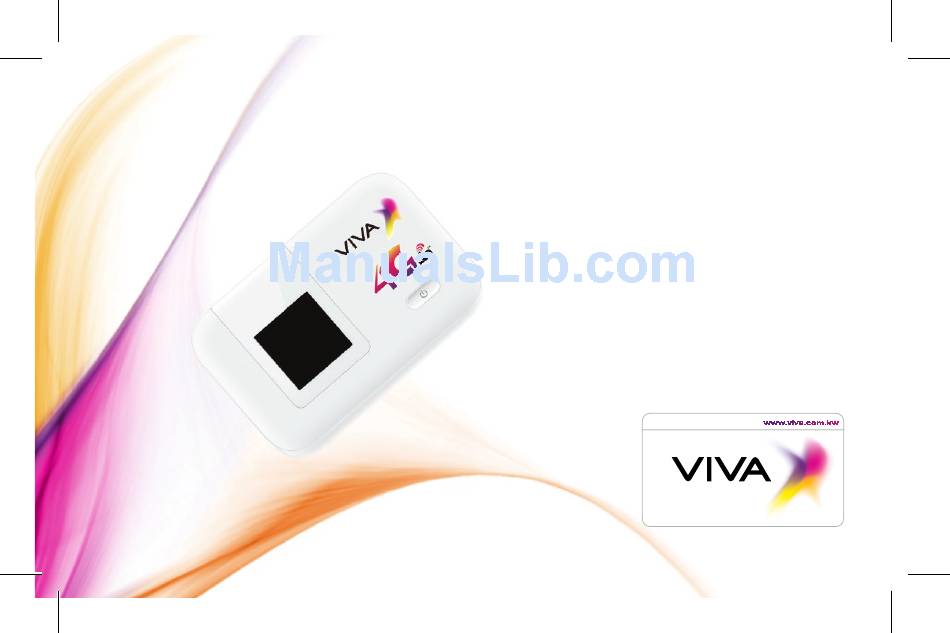

- Page 1 VIVA E53 Router Quick Start Guide...
- Page 3 Help on the Web Management page. • If the E53 is placed in an environment with poor ventilation it will get heated after use for a long time. Subsequently, the E53 may switch off or disconnect from the network automatically to protect itself.
- Page 4 Application Scenarios Multiple Wi-Fi devices or computers can be used to connect to the Internet through the E53. The actual connecting procedure depends on the operating system of the user. Scenario 1: Connecting Scenario 2: Connecting a single multiple devices through Wi-Fi...
- Page 5 Scenario 3: Multi-device access via Wi-Fi and USB at the same time...
- Page 6 Appearance 1. Power Button 2. Screen 3. Micro USB Port 4. Menu Button 5. Lanyard Hole...
- Page 7 Screen 1. Roaming R: Data Roaming turned on. 2. Signal strength • : Signal strength from weak to strong. 3. Network type • 2G/3G/4G: Connected to a 2G/3G/4G LTE network. 4. Wi-Fi • Wi-Fi is on. • Number of connected Wi-Fi devices. 5.
- Page 8 6. SMS • New messages. • Number of new messages. 7. Network connection status • Internet connection is set up. 8. Traffic statistics • Data traffic information.
- Page 9 Note: Data traffic information is for your reference only. For more accurate data traffic information, please consult VIVA by contacting our customer care.
- Page 10 Menu Screen 1. Back - Return to previous screen 2. Options 3. Operation tips - Press the MENU button to scroll down, and press the button to confirm your selection...
- Page 11 Update Screen 1. New Software -Updates are available 2. Update -Press button to start the update 3. Cancel -Press the MENU button to ignore the update...
- Page 12 • The microSD card is an optional accessory. If no microSD card is included in the package, please purchase one separately. • Do not remove the SIM card when it is in use. Doing so will affect the performance of you E53 router and data storred on the SIM may be damaged.
- Page 13 Only use the charger compatible with the E53 and provided by the designated manufacturer. If a charger is incompatible with the device model or provided by other manufacturers or vendors, the E53 may fail to work and damages may occur. At the same time, any national regulations...
- Page 14 Method 2: Connecting to a PC for charging Connect the E53 to a PC using a compatible data cable.
- Page 15 Accessing the Internet via Wi-Fi Connection Note: By default, management parameters are preset to default on the E53. You may follow the steps below to quickly access the Internet. For details about how to set management parameters, see help on the Web...
- Page 16 Step 1: Power on the E53 Press and hold until the screen lights up. Note: • Press and hold to power off the E53. • If your router malfunctions or cannot be properly powered off, press & hold the button for at least 10 seconds to forcibly power off your...
- Page 17 Step 2: Establish a Wi-Fi Connection (take a computer with Windows ® 7 operating system as an example) 1. Make sure that the E53 is powered on. 2. Select Start > Control Panel > Network Connections > Wireless Network Connection.
- Page 18 Network Connection dialog box is displayed. Enter the network key in the dialog box. • The SSID and network key label are affixed to your E53. Press the WPS button twice to view the current SSID and wireless network encryption key on the screen.
- Page 19 After you establish a Wi-Fi connection successfully, you can access the Internet using the following modes. By default, the mode is Auto. Mode Operations After the E53 is powered on, it can automatically connect to the Internet when data transmission is Auto required. If data transmission is not performed over a period of time, the E53 automatically disconnects from the Internet connection.
- Page 20 • Launch the Web Management page to select the mode for accessing the Internet. • If the E53 accesses the roaming network, the E53 automatically disconnects from the established network connection. If you need to access the Internet from the new network, you must re-establish a...
- Page 21 Accessing the Web Management Page 1. Make sure that the connection between the E53 and the client is a proper one. 2. Start the Internet browser and enter http://192.168.8.1 or http://viva.router in the address bar. 3. Enter the password and log in to the Web Management page.
- Page 22 Create a Secure Connection 1. Launch the web browser and enter http://192.168.8.1 or http://viva.router in the address bar. 2. Enter the password and click login. The default password is admin. 3. Click on “Settings”. 4. Click on “Quick Setup”. A message “welcome to the quick setup wizard”...
- Page 23 8. Click on “Next”. For the “Authentication” select “WPA2-PSK”, for the “encryption mode” select “AES+TKIP”. Enter the desired network key in the “Network Key 1” space. This key will be requested every time a user tries to access this connection for the first time. 9.
- Page 24 Daily Use Power Saving Mode If no operation is performed on the E53 for a while, the screen will turn off. Press any key to light up the screen. If the E53 is powered by the battery only, choose whether to enable the E53 to turn off Wi-Fi automatically.
- Page 25 Restoring Factory Defaults If you forget the changes you have made to some parameters, you may restore factory defaults and reconfigure the E53. To restore the factory defaults, press and hold the RESET button until the screen turns off. All factory default settings are successfully restored.
- Page 26 Tips If you are experiencing difficulties using the E53, try the following: • See help on the Web Management page. • Restart the E53. • Restore the factory defaults. • Contact your service provider.
