Summary of Contents for Raymar RT20 Series

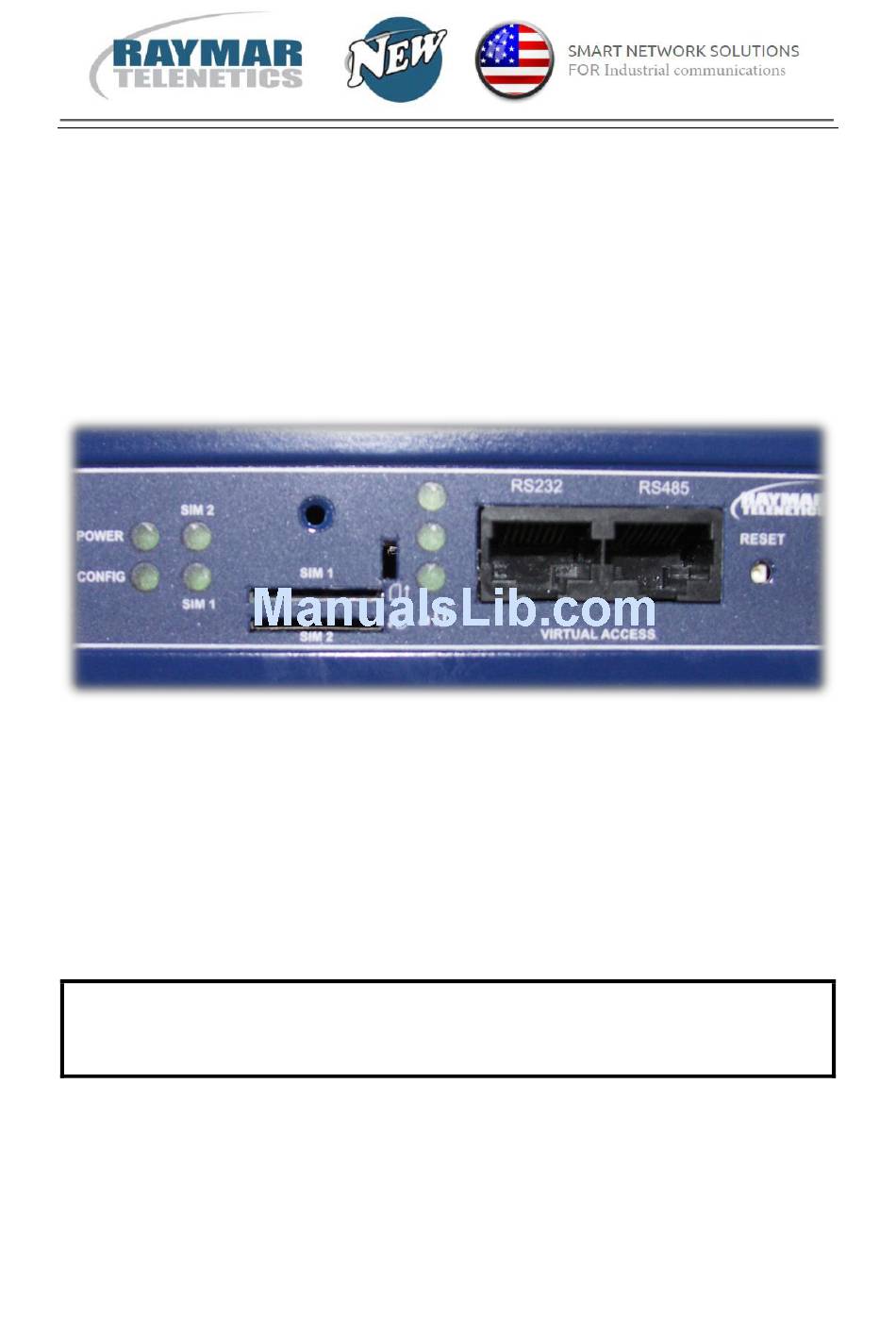

- Page 1 Raymar RT20xx Series Quick Start Guide...
-
Page 2: Table Of Contents
LED behaviour ..................9 Main LED behaviour ................9 Ethernet port LED behaviour ..............10 Configuring the RT20xx for 3G/4G access ..........11 Firmware updates information .............. 14 Troubleshooting ..................15 Raymar RT20xx Series Quick Start Guide Issue: 1.2 Page 2 of... -
Page 3: Preface
Do not operate your wireless router in the presence of flammable gases, fumes or potentially explosive atmospheres. Wireless routers should not be used anywhere that blasting operations are taking place. Raymar RT20xx Series Quick Start Guide Issue: 1.2 Page 3 of... -
Page 4: Product Disposal
The United Kingdom and Republic of Ireland are under an obligation to minimise the disposal of Waste Electrical and Electronic Equipment (WEEE) in domestic waste and encourage recycling, recovery and environmentally sound disposal. Raymar is committed to promoting the reuse, recycling and recovery of WEEE by contributing to the appropriate compliance schemes. -
Page 5: Introduction
2.7 EDGE EDGE uses the same frequencies as GPRS but offers better speeds. It is used when the signal strength for 3G or 4G is not sufficient. Raymar RT20xx Series Quick Start Guide Issue: 1.2 Page 5 of... -
Page 6: Csd In Egsm900/Gsm1800 Mhz
CSD (Circuit-Switched Data) mode enables the 3G modem to transmit data over the EGSM (Extended Global System for Mobile communications) frequency or the GSM frequency. The modem behaves as a dual-band mobile phone behaves Raymar RT20xx Series Quick Start Guide Issue: 1.2 Page 6 of... -
Page 7: Getting Started
Each RT20xx Series router is assigned a unique serial number. Record your device serial number on your warranty card or somewhere you can easily access it. You must reference your unique serial number (S/N) when you contact Raymar support for installation and configuration confirmation or should you request service on the device. -
Page 8: Antenna Diversity
1. Plug the power cable into an electrical socket suitable for a DC12V/1A power supply. 2. The router initialises. The Power LED lights green, the CONFIG LED flashes, and all the LEDs temporarily light in sequence. Then the router activates. Raymar RT20xx Series Quick Start Guide Issue: 1.2 Page 8 of... -
Page 9: Led Behaviour
PPP connected and signal strength >-69dBm Table 1: LED behaviour and descriptions Note: When PPP is not connected, none of the signal LEDs will light regardless of signal strength. Raymar RT20xx Series Quick Start Guide Issue: 1.2 Page 9 of... -
Page 10: Ethernet Port Led Behaviour
No physical Ethernet link detected Link LED (green) Physical Ethernet link detected No data is being transmitted/received over the link ACT LED (amber) Flashing Data is being transmitted/ received over the link Raymar RT20xx Series Quick Start Guide Issue: 1.2 Page 10 of... -
Page 11: Configuring The Rt20Xx For 3G/4G Access
Figure 4: The RT20xx interfaces menu 5. Click Edit on WAN or LAN to make your changes. For WAN connectivity, the Common Configuration page appears. © Raymar 2013 Raymar Raymar RT20xx Series Quick Start Guide Issue 1.2 Page 11 of 15... - Page 12 13. To check for connectivity, return to the top menu, and under Network -> Interfaces, the WAN interface will show receive and transmit packets and an IP address. © Raymar 2013 Raymar Raymar RT20xx Series Quick Start Guide Issue 1.2 Page 12 of 15...
- Page 13 Figure 6: The interfaces overview page 14. To view 3G/4G connectivity information, browse to Status -> Mobile Stats. Figure 7: The 3G/4G information page © Raymar 2013 Raymar Raymar RT20xx Series Quick Start Guide Issue 1.2 Page 13 of 15...
-
Page 14: Firmware Updates Information
6: Firmware updates information 6 Firmware updates information To obtain firmware updates for your RT20xx Series router, contact your reseller. © Raymar 2013 Raymar Raymar RT20xx Series Quick Start Guide Issue 1.2 Page 14 of 15... -
Page 15: Troubleshooting
The router performance is There is poor 3G signal to Status > 3G Info. Move slow. strength. the RT20xx to a better location and recheck signal strength © Raymar 2013 Raymar Raymar RT20xx Series Quick Start Guide Issue 1.2 Page 15 of 15...
