Summary of Contents for Multi-Tech MultiFRAD FR111

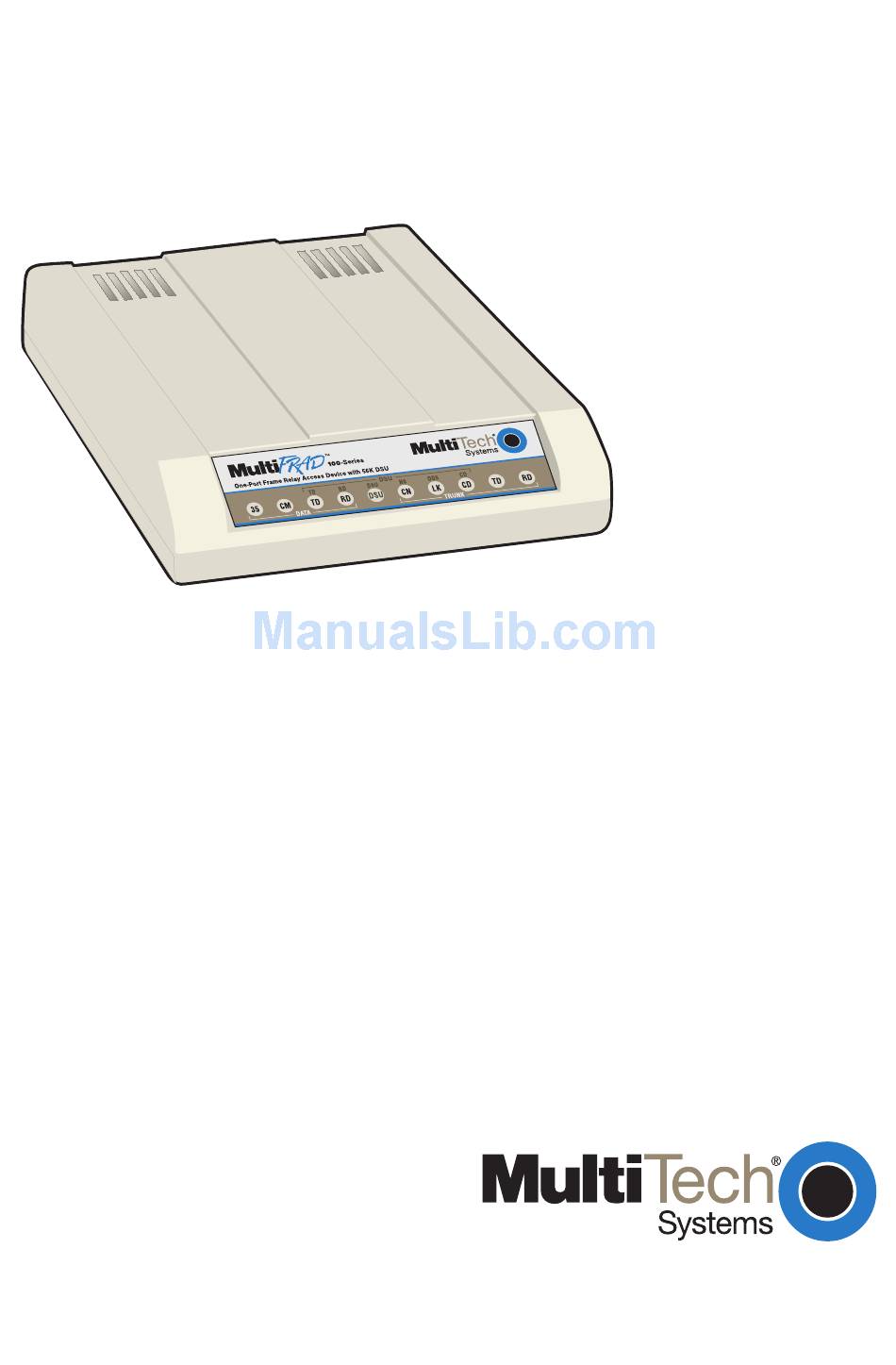

  • Page 1 Model FR111 Single Port Frame Relay Access Device with 56K DSU Owner's Manual...
  • Page 2 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation.
  • Page 4 Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or organization of such revisions or changes.

  • Page 5: Table Of Contents

    Chapter 2 - Front and Back Panel Descriptions 2.1 Introduction ... 23 2.2 Front Panel ... 23 2.3 Back Panel ... 25 2.4 Switch Settings ... 26 2.5 Shunts ... 27 Chapter 3 - Setup 3.1 Introduction ... 31 3.2 Unpacking ... 31 3.3 Safety LWarnings ...
  • Page 6 5.3 Data Port Configuration ... 56 5.4 Trunk Configuration ... 62 5.5 Statistics ... 66 5.6 Diagnostics ... 66 Chapter 6 - ASCII Terminal Menu System 6.1 Introduction ... 71 6.2 Configurations Menu ... 71 6.2.1 Async Data Port Configuration ... 72 6.2.2 Sync Data Port Configuration ...

  • Page 7: Chapter 1 - Introduction And Description

    Introduction and Description...

  • Page 9: Introduction

    Introduction The Multi-Tech Systems MultiFRAD™ 100-Series, Model number FR111, is a one-port Frame Relay Access Device (FRAD) with 56K DSU that encapsulates non-packetized data from a serial device into frame relay frames and is responsible for framing that data with header and trailer information prior to transmission to a frame relay network.

  • Page 10: About This Manual

    About This Manual This manual describes the MultiFRAD, and tells you how to install and configure the unit. The information contained in each chapter is as follows: Chapter 1 - Introduction and Description Chapter 1 introduces the MultiFRAD 100-Series. A typical application is presented with a discussion on ordering a frame relay line and how to configure a MultiFRAD.
  • Page 11 Chapter 6 - ASCII Terminal Menu System Chapter 6 provides a description of the ASCII terminal menu system. The ASCII terminal menu system is used when a dumb terminal is connected to the data port. These menus allow you to configure the data port and trunk, view statistics, reset the unit, and enable diagnos- tics.

  • Page 12: A Typical Application

    Connection Identifier (DLCI). The DLCI is a number between 16 and 1007 that identifies the PVC between your MultiFRAD and the phone company's switch. The DLCI is assigned at the same time your local service provider defines the permanent virtual circuit (PVC) that is the path to your destination.
  • Page 13 Your capability to present data is determined by the internal DSU (Data Service Unit) that can transfer digital data at a maximum rate of 56,000 bits-per-second to the network. A general rule of thumb in this scenario is to assign a CIR of 32K bps and an excess burst rate (Be) of 24K bps.
  • Page 14 length, parity, stop bits, and flow control. The Async Data Port Configu- ration dialog box displays the default parameters that may apply to a majority async devices. When the data device is defined, then the trunk configuration needs to be defined. The trunk configuration is displayed in the Trunk Configura- tion dialog box.
  • Page 15 tion. The trunk configuration would be complete by clicking on the Save button and returning to the Main menu. In the Main menu, click on the download button to transfer the configuration to the MultiFRAD. Within a few seconds the new configuration is downloaded to the MultiFRAD and it is ready for operation.

  • Page 16: Fcc Regulations For Telephone Line Interconnection

    6. If trouble is experienced with this equipment (the model of which is indicated below) please contact Multi-Tech Systems, Inc. at the address shown below for details of how to have repairs made. If the trouble is...
  • Page 17 9. If so required, this equipment is hearing aid compatible. Manufacturer: Model Number: FCC Registration Number: Ringer Equivalence: Modular Jack (USOC) Service Center in U.S.A. Multi-Tech Systems, Inc. MultiFRAD 100-Series AU7USA-24704-XD-N RJ48 Multi-Tech Systems Inc. 2205 Woodale Drive Mounds View, MN 55112 USA (612) 785-3500 or (800) 328-9717 U.S.

  • Page 18: Canadian Limitations Notice

    Canadian Limitations Notice Notice: The ringer equivalence number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination of a interface may consist of any combination of devices subject only to the requirement that the sum of the ringer equivalence numbers of all the devices does not exceed 5.

  • Page 19: Specifications

    Specifications Data Port • Single data port with synchronous or asynchronous data format • Async data rate up to 57.6K bps or sync data rate up to 56K bps • RS232C and ITU-T V.35 interface using an adapter cable • Internal shunt plugs to configure RS232C or ITU-T V.35 interface •...

  • Page 21: Chapter 2 - Front And Back Panel Descriptions

    Front and Back Panel Descriptions...

  • Page 23: Introduction

    That is, the data shunt is in the V.35 position. Command Mode (CM) LED lights when the Data/ Command mode switch is in the Command mode position and blinks when the unit is in test mode. Transmit Data (TD) LED blinks when data is being transmitted - on for a space and off for a mark.
  • Page 24 received - on for a space and off for a mark. Data Service Unit (DSU) LED lights when the unit is in the DSU-only mode. The No Signal (NS) LED lights when no signal is received from the network or when the signal is too weak for normal operation.

  • Page 25: Back Panel

    Back Panel The cable connections for the MultiFRAD are made at the back panel. Two cable connections are provided and one power supply connection. The Data connector allows the MultiFRAD to be connected to a non- frame relay device and the Trunk connector connects to a common carrier frame relay network service or private frame relay networks.

  • Page 26: Switch Settings

    Switch Settings The 8-position DIP switch located on the right side of the MultiFRAD only uses the first four positions. The DIP switches are shown in Figure 2-3 and their settings are described in Table 2-1. Figure 2-3. Switch Settings Table 2-1.

  • Page 27: Shunts

    Shunts V.35 signal levels are generally more reliable for high speed data and/ or longer cable distances. EIA-232D signal levels are intended for data rates of 19,200 bps or less and cable lengths of 50 feet or less. For higher speeds and/or longer distances, V.35 is generally preferred. There are two shunt positions on the printed circuit board that configure the data port for either RS232 or V.35 interface.

  • Page 29: Chapter 3 - Setup

    Setup...

  • Page 31: Introduction

    Introduction This chapter describes the unpacking of the MultiFRAD, cable connec- tions depending on whether EIA-232D or ITU-T V.35 interface signaling is used on the data port, and how to configure the unit dependent on your site situation. Once the MultiFRAD is configured, then the data port can be connected to your data port device.

  • Page 32: Setup

    V.35 signaling on the data port. 1. Ensure that the DIP-Switch settings on the side of the unit are set for a command mode of operation. Refer to the Switch Settings in Chapter 2.
  • Page 33 Section 3.5 for procedures on moving the shunt to the V.35 position. Refer to Appendix A for cable details. 7. Place the Command Mode switch (Switch 1) on the side of the MultiFRAD in the UP position for the data mode operation.

  • Page 34: Shunt

    V.35 Shunt Either EIA-232D or ITU-T V.35 electrical signal interface can be selected on the data port. Units are shipped with EIA-232D signal levels se- lected. Use the following procedure to select V.35. 1. Unplug the power cord. 2. The enclosure consists of two halves. Using a Phillips screwdriver, remove the two screws from the bottom of the unit.

  • Page 35: Chapter 4 - Software Loading And Configuration

    Software Loading and Configuration...

  • Page 37: Introduction

    Introduction This chapter covers the loading of the software utility and then the configuration of the unit from either a Windows based pc or a dumb terminal. When a Windows based pc is used, the software utility is loaded using the procedures in section 4.2 and then the unit is config- ured using the procedures in section 4.3.
  • Page 38 Click on Install to continue installation, at any time you may click on Abort if you wish to cancel the install immediately. The Expanding/Copying Files From: dialog box is displayed. You can view the progress of the installation from this dialog box. You can click on Abort at any time to cancel the install.
  • Page 39 Select the COM port (COM1,COM2,COM3, or COM4) for the setup utility. The default port is COM1. Click on OK when you are satisfied with your selection. 12 When the setup installation is successful, a system message is displayed stating "MultiFRAD 100 Installation Successful. Click on OK to continue.

  • Page 40: Configuring Your Multifrad Using Windows

    Configuring Your MultiFRAD using Windows Configuration of your MultiFRAD using Windows starts after the soft- ware is loaded and program group is displayed in the Program Man- ager. Double click on the MultiFRAD 100 Configuration icon. When the MultiFRAD 100 dialog box is displayed, click on the Data Port button to display the Data Port Configuration dialog box.
  • Page 41 If your data device is a synchronous device, click on the Syn- chronous option button and the parameters for the synchronous mode are displayed. Refer to the User documentation to set the sync parameters that meet the conditions of your installation. When you are satisfied with your selections, click on the Save button to save your new parameters.
  • Page 42 Click on the DLCI numeric dialog box. Enter the DLCI number that was provided by your service provider at subscription time. To change the DLCI, click on the DLCI numeric dialog box and back space through the default number and then enter your DLCI. Click on the Management type option button supported by your Frame Relay network.
  • Page 43 14 The Configuration dialog box is displayed. The Configuration downloaded successfully. Reset the unit for configuration to take effect and put dip switch number 1 in the up position. Click on OK to proceed. 15 You are returned to your Program Manager where the MultiFRAD 100 Program Group and Program Item (the Windows icons) have been created.

  • Page 44: Configuring Your Multifrad Using A Dumb Terminal

    Configuring your MultiFRAD using a Dumb Terminal To configure your MultiFRAD, power up a terminal or pc running communications software and hit the ENTER key. The Main menu appears on your screen, configure the data port for sync or async mode of operation and the trunk for the frame relay parameters.
  • Page 45 If the data port is being setup for Async mode of operation and a port speed of 57.6K, initially the data port does not have to be changed, proceed to step 6 to configuring the Trunk. Data Port Configuration - Async/Sync: - Speed: - Word Length: - Stop Bits:...
  • Page 46 From the Configuration menu, enter 2 and press ENTER. The Trunk Configuration menu is displayed. In the Trunk Configuration menu, the Access rate option (1) displays the data rate of the trunk. This rate can not be changed. Option 2 should remain in the default condition (Follows input pin from DTE) when used in a frame relay network.
  • Page 47 Enter the number that corresponds to the DLCI for your trunk. A two-digit number can be entered and the zeros will proceed the digits. The DLCI is supplied by your network service provider at the time the trunk was provisioned. When you have entered your DLCI, the Trunk Configuration menu is displayed.
  • Page 48 Options 8 thru 11 modify the management protocol between the MultiFRAD and the network switch. For most applications, the default values should be adequate. If you do not need to change any of them, proceed to step 15.
  • Page 49 Enter the Full Status Counter. Valid values are between 1 and 255. - Enter Number, or - Previous Menu Selection : _ Enter the number between 1 and 255 that is going to be the number of polling cycles (minus one) before a full status is requested from the network.
  • Page 50 Then enter the letter M and press ENTER to return to the Main Menu. Enter 5 to Exit Command Mode. 16 Place the Command Mode switch (Switch 1) on the side of the MultiFRAD in the UP position and return to step 6 in the Setup...

  • Page 51: Chapter 5 - Software Utility Descriptions

    Software Utility Descriptions...

  • Page 53: Introduction

    Introduction This chapter describes the MultiFRAD software which is designed for ® the Microsoft Windows Group has three icons that allow you to launch the software, download a firmware update, and configure the console pc port in order to communicate with the MultiFRAD. The MultiFRAD 100 Configuration icon allows you to configure the data port for either a synchronous or asynchronous device, configure the trunk for a frame relay network, view statistics of the data port, perform...

  • Page 54: Configuration

    5.2.1 Configuration Data Port This button allows you configure the data port for either synchronous or asynchronous mode of operation. Trunk This button lets you define the frame relay parameters. 5.2.2 Others Statistics This button allows you to view statistics of the trunk port. Diagnostics This button allows you to run two loopback tests, a memory test, and watch dog test.

  • Page 55: Help

    5.2.5 Help A thorough On-line Help system is provided with abbreviated informa- tion on the dialog boxes and the buttons within a dialog box. 5.2.6 MultiFRAD Version The current version number of the MultiFRAD firmware is displayed in this field.

  • Page 56: Data Port Configuration

    Data Port Configuration This dialog box allows you to configure the data port. You will be able to set the parameters required for the successful operation of the port. Mode Asynchronous/Synchronous This allows you to set synchronous or asynchronous parameters required for transferring data between the MultiFRAD and the data port device.
  • Page 57 Note: The MultiFRAD always provides the clocking signal to the sync device. The MultiFRAD 100's data port can not be set to external clocking, it is always internal clocking. Between Frames The Between Frames parameter must be set to match the idle condition of the synchronous device connected to the data port.

  • Page 58: Baud Rate

    CRC Preset The CRC Preset parameter allows the user to specify whether the polyno- mial used to calculate the CRC for each frame is preset to all 1s or all 0s. This option must match the synchronous device’s CRC-preset setting. The default is All 1s.

  • Page 59: Flow Control

    Parity The Parity parameter sets parity for odd, even or none. Under normal conditions, parity is set to none. The default is none. Stop Bits The Stop Bits parameter sets the number of stop bits. The number of stop bits can be 1, 1.5, or 2. The default is 1 bit. Flow Control The Flow Control parameter allows for two types of flow control: the software-based XON/XOFF and the hardware-based Clear to Send (CTS).
  • Page 60 Pass Xon The Pass Xon parameter enables the XON/XOFF flow control signals to be passed on to the data device. This option has to be used in conjunction with the software-based XON/XOFF flow control option. The default condition is for this option to be turned off, and normally it should remain off. Echo The Echo parameter enables data entered on the data device keyboard to be returned to the device's monitor.
  • Page 61 ENQ/ACK The Enq/Ack parameter is a special flow control protocol used in Hewlett Packard computer systems. This option is sometimes referred to as Enquire/Acknowledge flow control because it’s based on the computer sending an enquiry (ENQ) and then expecting an acknowledgment (ACK).

  • Page 62: Trunk Configuration

    Trunk Configuration This dialog box allows you to configure the trunk. You will be able to set the parameters required for the successful operation of the trunk. Frame Relay is a multiplexing protocol designed to operate over transmission facilities that are virtually error free. In Frame Relay, frames are routed through the network on the basis of an attached label called a Data Link Connection Identifier (DLCI).

  • Page 63: Polling Interval

    LMI describes a protocol and associated procedures operating on the local interface between the user and the network. It notifies the user of the addition, deletion, and presence of the PVC in the network. It also notifies the user of the end-to-end availability or unavailability of a PVC. Basic LMI protocol is based on a synchronous polling scheme where the user polls the network to obtain status information on the PVCs configured on the interface.
  • Page 64 Full Status Counter The Full Status Counter determines how may Polling Intervals take place before a full status is requested from the network. A full status enquiry message is sent from the MultiFRAD to the network requesting a status report of the PVC on the physical link. The Full Status Counter can range from 1 to 255, with a default of 6.

  • Page 65: Back To Back

    Back to Back The Back to Back is used to test the port by connecting two MultiFRADs together without a frame relay network in between them. Back-to-back mode still requires the use of DSU/CSUs, but they should not be connected over the frame relay network.

  • Page 66: Statistics

    Statistics This dialog box allows you to view status of the trunk. Its possible to view signal status and other characteristics like data frames transmitted or received, status of enquiries transmitted and messages received and the status of the messages received. If you want to clear the statistics so that you can have fresh statistics, then you should click on the clear button.

  • Page 67: Loop Tests

    (DTE) device. If the data port device is a sync device, the Command Mode switch must be in the up position (Data mode) in order for the device to receive the looped back data.

  • Page 69: Chapter 6 - Ascii Terminal Menu System

    ASCII Terminal Menu System...

  • Page 71: Introduction

    Introduction The menu system for the MultiFRAD provides a set of user-friendly configuration menus that are accessible from a main menu. The Main Menu contains five options that allow you to configure your MultiFRAD; display statistics; reset the unit or data port; run diagnostic tests, and exit the command mode.

  • Page 72: Async Data Port Configuration

    a message will appear on your screen saying to wait for 3 seconds. Then press ENTER to return to the Main Menu. To store the current configuration, enter S and press ENTER. To return to the Main Menu, enter M and press ENTER. 6.2.1 Async Data Port Configuration The Async Data Port Configuration menu allows you to configure the data channel for either asynchronous or synchronous operation,...
  • Page 73 The Word Length option sets the number of bits in a word. The word length range is 5 to 8 bits. The default is 8 bits. The Stop Bits option sets the number of stop bits. The number of stop bits can be 1, 1.5, or 2.
  • Page 74 The EIA Pass Through option allows the data device to receive EIA control signals through the MultiFRAD. This option only applies during the async mode of operation. Since, in normal interactive operation, the existence of a MultiFRAD should be transparent to the user, the EIA pass through option allows a terminal to operate as if it were connected directly to a communications line and not through a MultiFRAD.

  • Page 75: Sync Data Port Configuration

    6.2.2 Sync Data Port Configuration The Sync Data Port Configuration menu allows you to configure the data port for either asynchronous or synchronous operation, depending on the type of device connected to the port. When the port is configured for synchronous operation, the following Data Port Configuration menu displays the default parameters: Data Port Configuration 1 - Async/Sync:...
  • Page 76 ing, data is represented normally. With NRZI encoding, a logical one is represented by no transition and a zero is represented by a transition at the beginning of the bit. Most synchronous devices can be configured for either NRZ or NRZI. If a synchronous device is not configurable, it most likely is set to NRZ.

  • Page 77: Trunk Configuration

    6.2.3 Trunk Configuration The Trunk Configuration menu allows you to configure the trunk. The default parameters are displayed in the following menu: The Access Rate option displays the maximum data rate of the trunk. The Access Rate determines the speed of the access channel (trunk). The Access Rate can not be changed.
  • Page 78 access circuit. Set the DLCI to indicate the PVC to terminate the trunk. The range of DLCIs is from 16 to 1007 with a default of 16. The Committed Info Rate (CIR) option determines the data transfer rate at which the network is committed to handle under normal conditions. This rate is the average over a minimum increment of time.
  • Page 79 should be less than or equal to the Monitored Event Counter. The Monitored Event Counter option determines the number of Polling Intervals that have to take place before the User Network Interface is operational. It is also used with the error threshold count to determine if the trunk should be brought down.

  • Page 80: Statistics

    Statistics The Statistics menu allows you to view or clear statistics, or return to the previous menu or to the Main Menu. Statistics - View Statistics - Clear Statistics - Main Menu - Previous Menu Selection : _ To view or clear statistics, enter the corresponding option number and press ENTER.
  • Page 81 you might encounter could be 10,000 frames transmitted (or received) with 500 or 1000 retransmits (or receive errors). Link alarms simply tell you that there is some sort of problem on the trunk in async mode. You will find that the link alarms number will correspond to the retransmit and received frames numbers.

  • Page 82: Reset Options

    Reset Options The Reset Options menu allows you to reset the unit, the data channel, or return to the previous menu or to the Main Menu. Reset Options Selection : _ To reset the unit, enter 1 and press ENTER. To reset the data channel, enter 2 and press ENTER.
  • Page 83 MultiFRAD's data port settings are correct. The Trunk Loopback Test is selected when the internal DSU is set for loopback mode (DIP-Switch 3 is DOWN). This tests the data port circuitry and the MultiFRAD's trunk circuitry up the DDS line circuit.

  • Page 84: Memory Test

    try going back to the Local Trunk Loopback, and then even the data port loopback which is the most basic test. If there is still no clear cause of the problem, follow the steps in section 7.3, contacting Tech support. 6.5.2 Memory Test The memory test verifies that each memory chip on the circuit board is working.

  • Page 85: Chapter 7 - Service, Warranty And Tech Support

    Service, Warranty and Tech Support...

  • Page 87: Introduction

    (BBS), and get support through CompuServe and the Internet. Limited Warranty Multi-Tech Systems, Inc. (“MTS”) warrants that its products will be free from defects in material or workmanship for a period of two years from the date of purchase, or if proof of purchase is not provided, two years from date of shipment.

  • Page 88: Recording Multifrad Information

    7.3.1 Recording MultiFRAD Information Please fill in the following information on your Multi-Tech MultiFRAD. This will help Tech Support in answering your questions. (The same information is requested on the Warranty Registration Card.) Model Number: ______________________________________ Serial Number: ______________________________________ Firmware Version: ____________________________________ The model and serial numbers are on the bottom of your MultiFRAD.

  • Page 89: Service

    About the Multi-Tech BBS Multi-Tech Systems maintains a Bulletin Board Service (BBS) for its customers. The information available via the BBS includes new product information, product upgrade data, problem-solving tips, and a mes- sage service you can use to obtain additional information about Multi- Tech products, including the ones you own.

  • Page 90: Logging On To The Multi-Tech Bbs

    7.4.1 Logging on to the Multi-Tech BBS To log on to the Multi-Tech BBS, perform the following steps. 1. Set your communications program to 8-N-1. 2. Dial our BBS at (800) 392-2432 (USA and Canada) or (612) 785- 3702 (international and local). 3.

  • Page 91: About Compuserve

    If you don’t know the file name 1. From the Main Menu, type F to access the Files Menu. For a list of file areas, type L, press ENTER, then type L and press ENTER again. (If you do not type the second L , you will list all of the files on the BBS.) 2.

  • Page 92: About The Internet

    About the Internet Multi-Tech is a commercial user on the Internet, and we retrieve messages from our customers on a periodic basis. Multi-Tech’s pres- ence includes a Web site at: http://www.multitech.com and an ftp site at: ftp://ftp.multitech.com Multi-Tech's presence includes a Web site at: About the Multi-Tech Fax-Back Service Multi-Tech’s fax-back system provides 24-hour access to sales, market- ing, and technical literature.

  • Page 93: Upgrading The Flash Prom

    Upgrading the Flash PROM Your MultiFRAD has a Flash PROM which contains firmware code for the hardware. At various times, Multi-Tech may add enhancements and/ or fixes to the firmware. The Flash technology used in your MultiFRAD allows these upgrades to be loaded directly into the PROM chip through the serial port.

  • Page 95: Appendices

    Appendices...

  • Page 97: Appendix A Cabling Diagrams

    V.35 Adapter Cable** V.35 34-PIN CONNECTOR (MALE) * The FR111 RS232C interface circuits have been designed to meet the electrical specifications given in EIA (Electronic Industries Association RS232C and CCITT (Consultative Committee International Telegraph and Telephone) V.24 Standards. ** When configured for V.35 interface operation, the V.35 adapter cable should be used.

  • Page 98: Pin Identification

    Trunk Cable Receive Transmit 1 2 3 4 5 6 7 8 Pin Identification Description Transmit Pair Transmit Pair Receive Pair Receive Pair Destination To Line To Line From Line From Line...
  • Page 99 Back-To-Back Cable RJ48S RJ48S...
